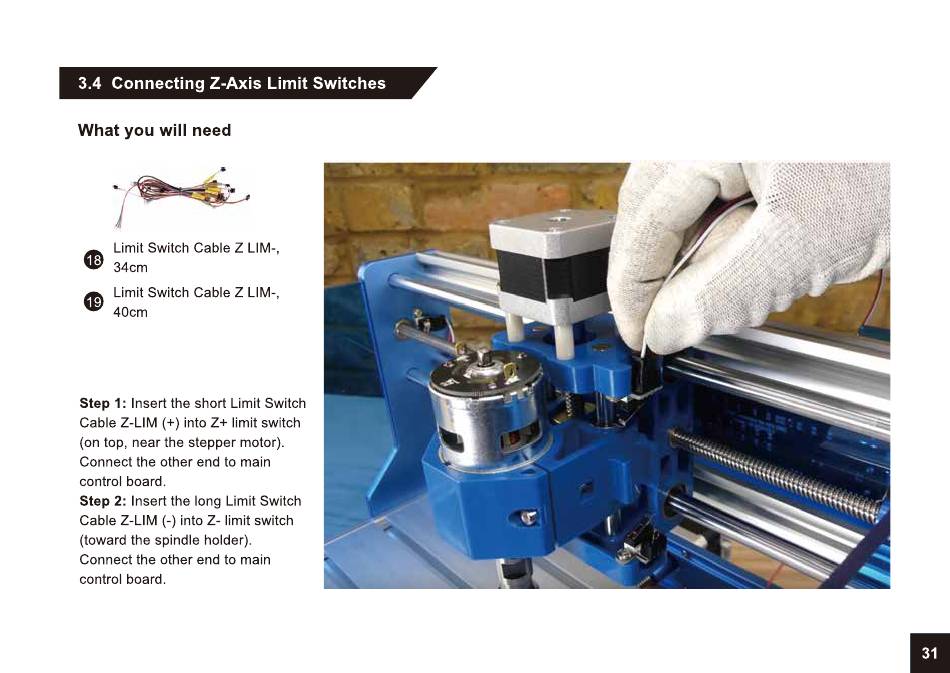

3.4 Connecting
Z-Axis
What you will need
Limit Switch
Cable Z LIM-,
18
34cm
Limit Switch
Cable Z LIM-,
19
40cm
Step 1: Insert the short Limit Switch
Cable Z-LIM (+) into Z+ limit switch
(on top, near the stepper motor).
Connect
the
other
end
to main
control
board
Step 2: Insert the long Limit Switch
Cable Z-LIM (-) into Z- limit switch
(toward the spindle holder).
Connect
the
other
end
to main
control
board.
Limit
Switches
