dirna Bergstrom bycool green line COMPACT 1.4 Montageanweisungen Seite 28

COMPACT
EN
Take care not to invert polarities when connecting the unit. If this happens, the plate does not come on and
the unit does not work.
Centrifugal
Blower
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT NOTE!
Electronic
control
Battery
2 Compressor
28

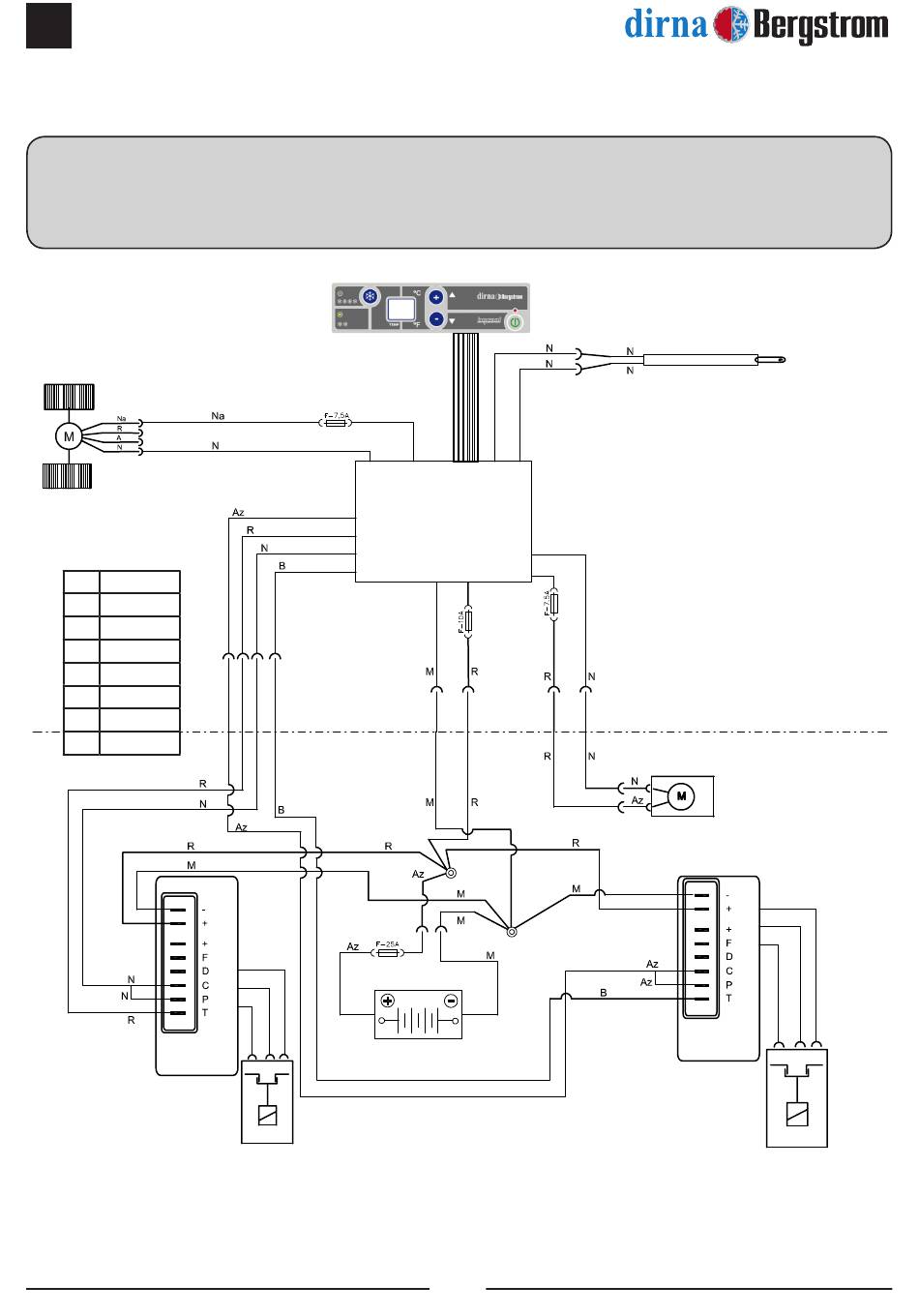

Wiring diagram
Return
air sensor
Condenser
fan
Compressor
electronic
module
1 Compressor
®
