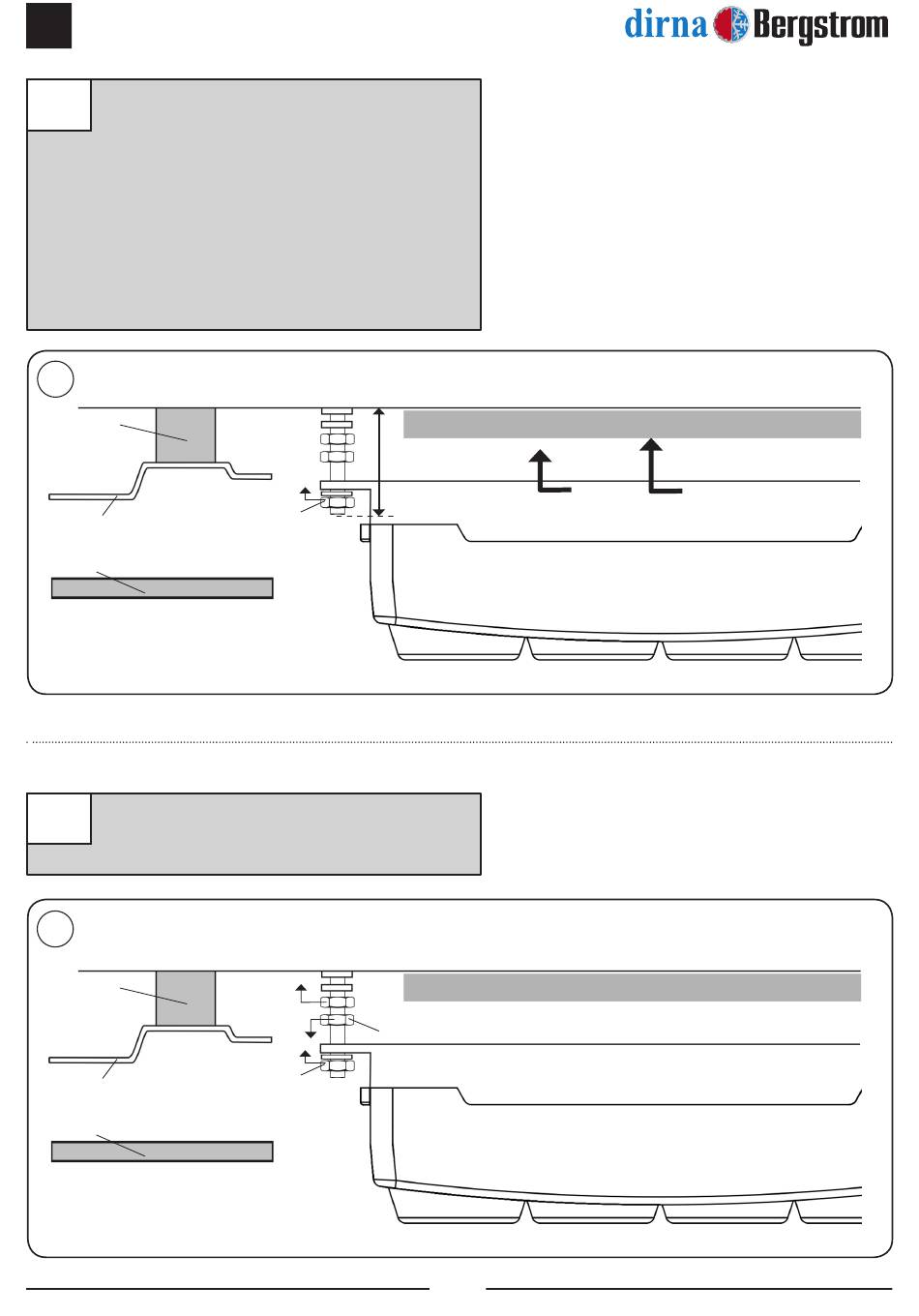

Position the interior air distribution panel
11
on the front studs with (1) M6 wide-flanged
washer and (1) M6 nut on each stud. Tighten
the nuts until the interior air distribution
panel duct comes up against the unit's top
foam.
Important: The interior air distribution
panel duct must come up against the
unit's upper foam in order to prevent any
leakages of air.
11
EPDM
Gasket
Cabin roof
Upholstey
Tighten the nut in point 10a until it comes
12
up against the top part of the interior air
distribution panel.
12
EPDM
Gasket
Cabin roof
Upholstey
Unit base
D
Nut M6
Unit base
Nut M6 (10a)
Nut M6
22
Foam
Interior air distribution panel
Foam
Interior air distribution panel
®
