dirna Bergstrom bycool green line COMPACT 1.4 Montageanweisungen Seite 24

COMPACT
EN
15

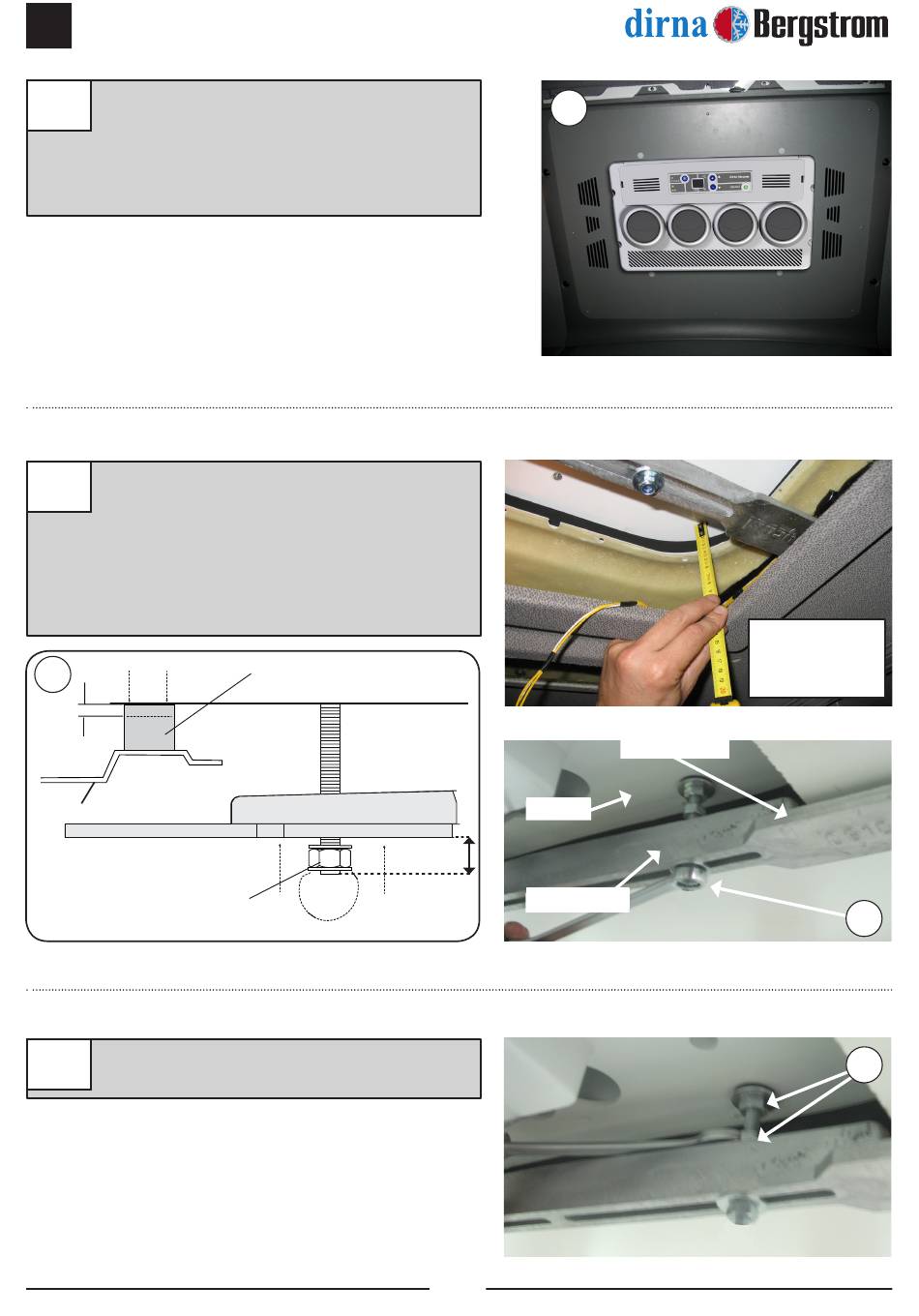

Place the supplied console on the original
console frame and align the unit.
BE SURE THERE IS A GAP BETWEEN THE
CONSOLE FRAME AND THE FRONT.
Fasten supports tightening nuts until outside
16
EPDM joint of equipment is compressed,
between 3 and 6 mm;
Important: To avoid water from filtering inside
cabin, check EPDM joint tightening with unit
base, as indicated on diagram.
16
3-6mm.
Cabin roof
Fasten selflocked nut until
EPDM gasket is compressed
between 3 and 6 mm.
Tighten (4) M8 nuts to support and (4) to Unit
17
base.
EPDM gasket
10 mm*
(*) (approx. after tightening)
15
Base
EPDM Joint
24
Check compression
thickness using a
tape measure in the
four corners.
EPDM gasket
®
16
17
