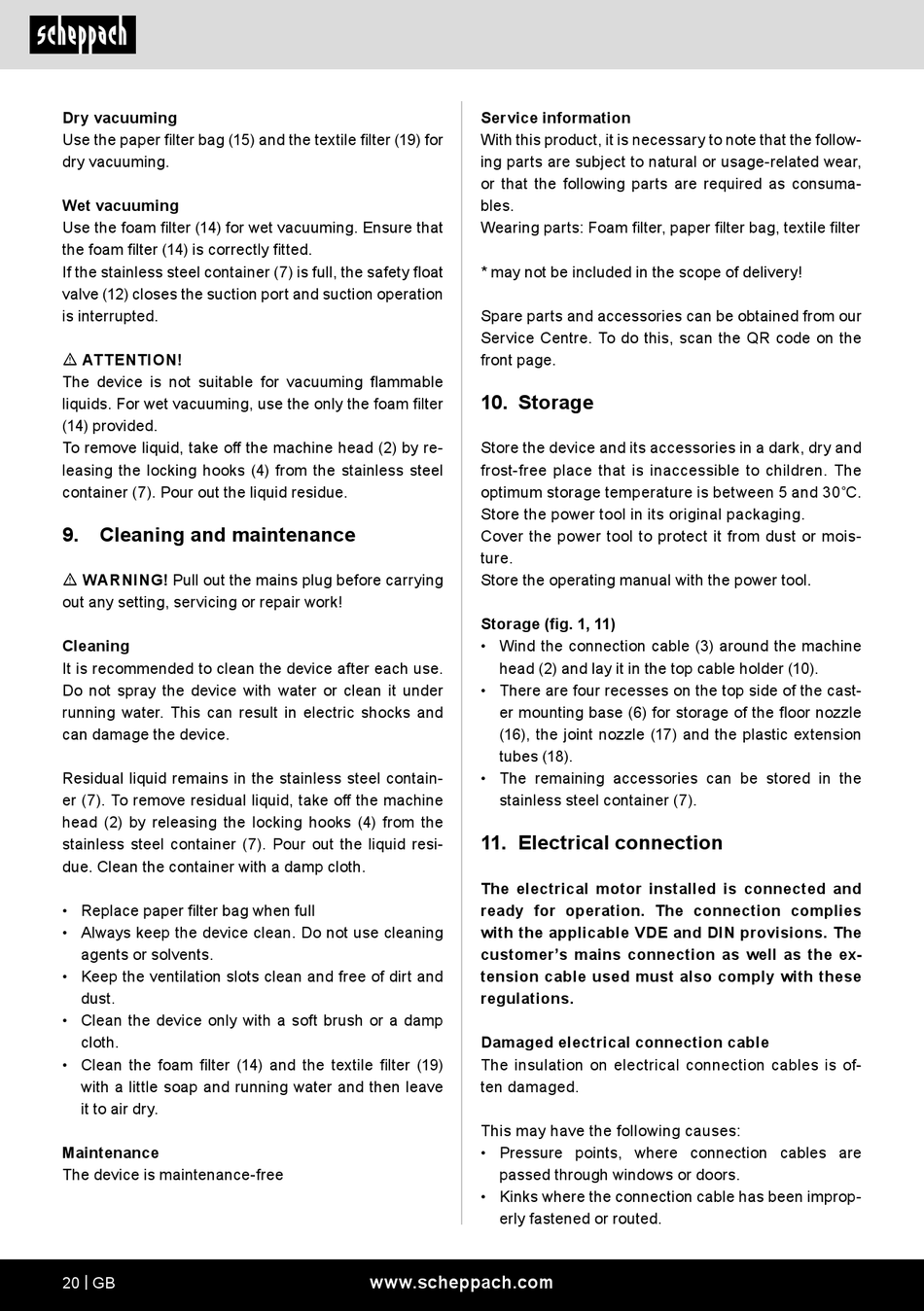

Scheppach NTS20 Originalbetriebsanleitung Seite 20

Dry vacuuming
Use the paper filter bag (15) and the textile filter (19) for
dry vacuuming.
Wet vacuuming
Use the foam filter (14) for wet vacuuming. Ensure that
the foam filter (14) is correctly fitted.
If the stainless steel container (7) is full, the safety float
valve (12) closes the suction port and suction operation
is interrupted.
m ATTENTION!
The device is not suitable for vacuuming flammable
liquids. For wet vacuuming, use the only the foam filter
(14) provided.
To remove liquid, take off the machine head (2) by re-
leasing the locking hooks (4) from the stainless steel
container (7). Pour out the liquid residue.
9. Cleaning and maintenance
m WARNING! Pull out the mains plug before carrying
out any setting, servicing or repair work!
Cleaning
It is recommended to clean the device after each use.
Do not spray the device with water or clean it under
running water. This can result in electric shocks and
can damage the device.
Residual liquid remains in the stainless steel contain-
er (7). To remove residual liquid, take off the machine
head (2) by releasing the locking hooks (4) from the
stainless steel container (7). Pour out the liquid resi-
due. Clean the container with a damp cloth.
• Replace paper filter bag when full
• Always keep the device clean. Do not use cleaning
agents or solvents.
• Keep the ventilation slots clean and free of dirt and
dust.
• Clean the device only with a soft brush or a damp
cloth.
• Clean the foam filter (14) and the textile filter (19)
with a little soap and running water and then leave
it to air dry.
Maintenance
The device is maintenance-free
20 | GB
Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consuma-
bles.
Wearing parts: Foam filter, paper filter bag, textile filter
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
10. Storage
Store the device and its accessories in a dark, dry and
frost-free place that is inaccessible to children. The
optimum storage temperature is between 5 and 30˚C.
Store the power tool in its original packaging.
Cover the power tool to protect it from dust or mois-
ture.
Store the operating manual with the power tool.
Storage (fig. 1, 11)
• Wind the connection cable (3) around the machine
head (2) and lay it in the top cable holder (10).
• There are four recesses on the top side of the cast-
er mounting base (6) for storage of the floor nozzle
(16), the joint nozzle (17) and the plastic extension
tubes (18).
• The remaining accessories can be stored in the
stainless steel container (7).
11. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions. The
customer's mains connection as well as the ex-
tension cable used must also comply with these
regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
