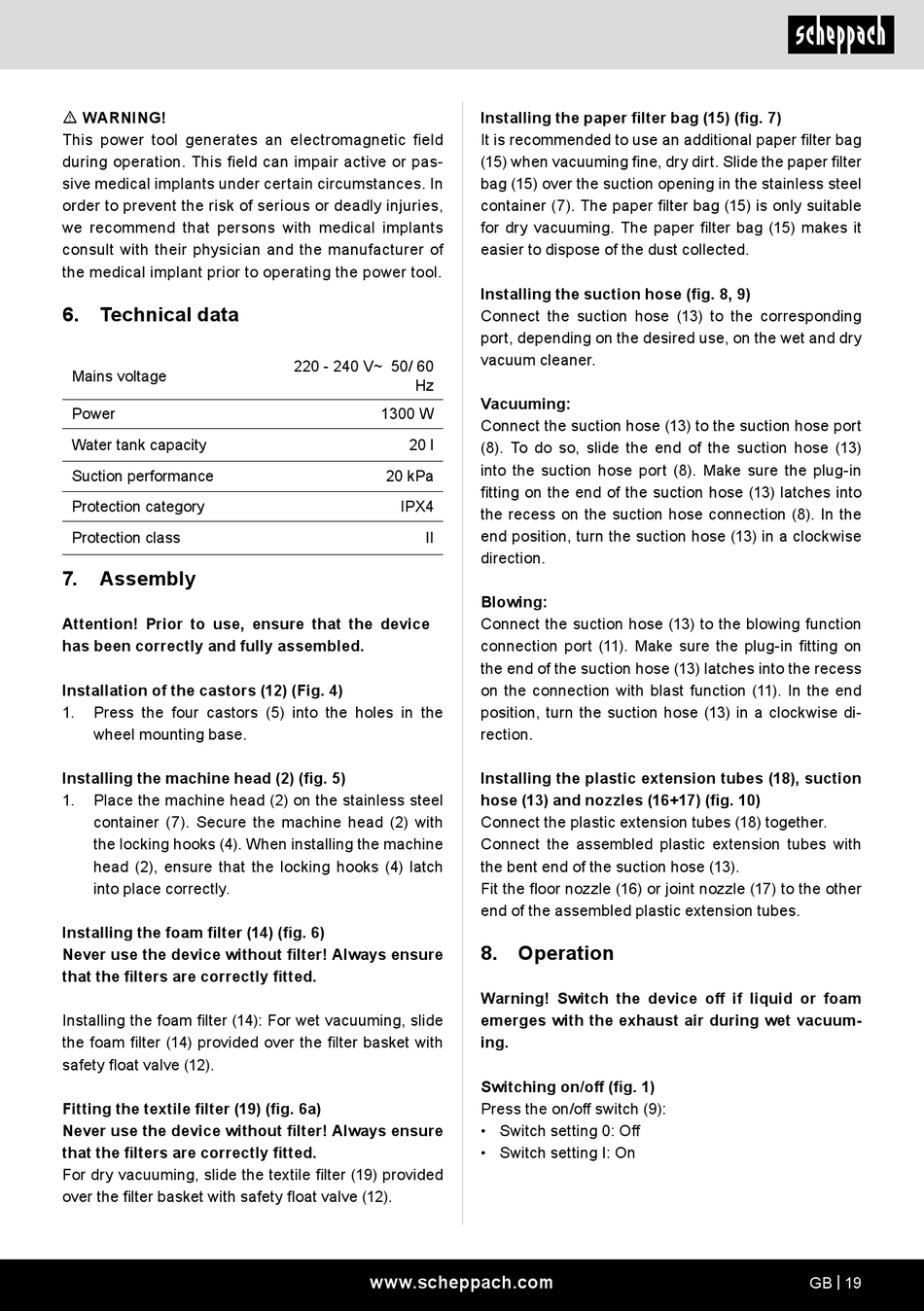

m WARNING!
This power tool generates an electromagnetic field
during operation. This field can impair active or pas-
sive medical implants under certain circumstances. In
order to prevent the risk of serious or deadly injuries,
we recommend that persons with medical implants
consult with their physician and the manufacturer of
the medical implant prior to operating the power tool.
6. Technical data
Mains voltage
Power
Water tank capacity
Suction performance
Protection category
Protection class
7. Assembly
Attention! Prior to use, ensure that the device
has been correctly and fully assembled.
Installation of the castors (12) (Fig. 4)
1. Press the four castors (5) into the holes in the
wheel mounting base.
Installing the machine head (2) (fig. 5)
1. Place the machine head (2) on the stainless steel
container (7). Secure the machine head (2) with
the locking hooks (4). When installing the machine
head (2), ensure that the locking hooks (4) latch
into place correctly.
Installing the foam filter (14) (fig. 6)
Never use the device without filter! Always ensure
that the filters are correctly fitted.
Installing the foam filter (14): For wet vacuuming, slide
the foam filter (14) provided over the filter basket with
safety float valve (12).
Fitting the textile filter (19) (fig. 6a)
Never use the device without filter! Always ensure
that the filters are correctly fitted.
For dry vacuuming, slide the textile filter (19) provided
over the filter basket with safety float valve (12).
220 - 240 V~ 50/ 60
Hz
1300 W
20 l
20 kPa
IPX4
II
www.scheppach.com
Installing the paper filter bag (15) (fig. 7)
It is recommended to use an additional paper filter bag
(15) when vacuuming fine, dry dirt. Slide the paper filter
bag (15) over the suction opening in the stainless steel
container (7). The paper filter bag (15) is only suitable
for dry vacuuming. The paper filter bag (15) makes it
easier to dispose of the dust collected.
Installing the suction hose (fig. 8, 9)
Connect the suction hose (13) to the corresponding
port, depending on the desired use, on the wet and dry
vacuum cleaner.
Vacuuming:
Connect the suction hose (13) to the suction hose port
(8). To do so, slide the end of the suction hose (13)
into the suction hose port (8). Make sure the plug-in
fitting on the end of the suction hose (13) latches into
the recess on the suction hose connection (8). In the
end position, turn the suction hose (13) in a clockwise
direction.
Blowing:
Connect the suction hose (13) to the blowing function
connection port (11). Make sure the plug-in fitting on
the end of the suction hose (13) latches into the recess
on the connection with blast function (11). In the end
position, turn the suction hose (13) in a clockwise di-
rection.
Installing the plastic extension tubes (18), suction
hose (13) and nozzles (16+17) (fig. 10)
Connect the plastic extension tubes (18) together.
Connect the assembled plastic extension tubes with
the bent end of the suction hose (13).
Fit the floor nozzle (16) or joint nozzle (17) to the other
end of the assembled plastic extension tubes.
8. Operation
Warning! Switch the device off if liquid or foam
emerges with the exhaust air during wet vacuum-
ing.
Switching on/off (fig. 1)
Press the on/off switch (9):
• Switch setting 0: Off
• Switch setting I: On
