CAN
MEM CONFIGURATOR
• Confirm this message by clicking on "Yes". The following files are overwritten.

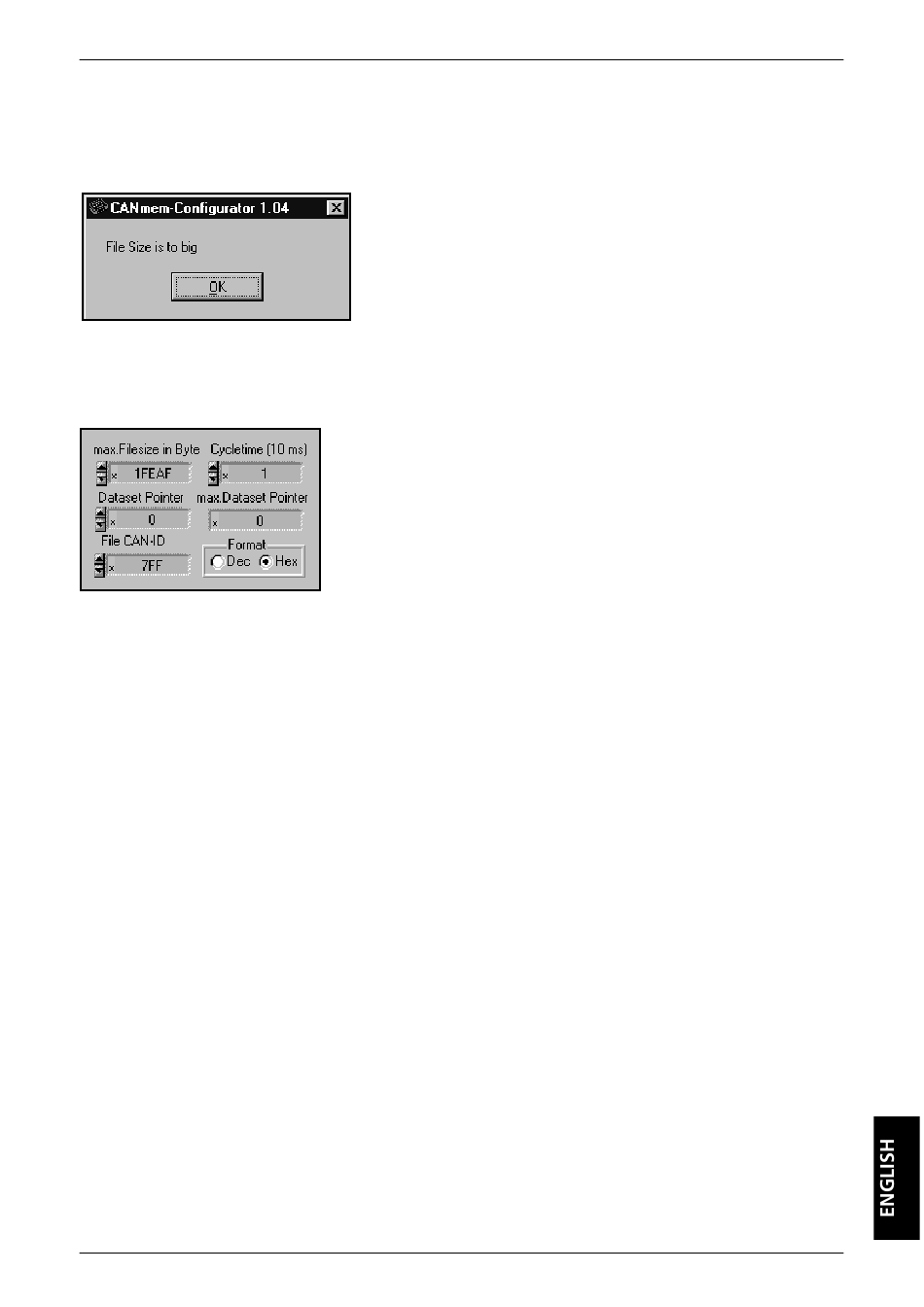

If your value is too high, a warning is given.
• In this case check and change the value "max. Filesize in Byte".
Warning
• Select a different 11 bit CAN ID (0...2047 d) for each file.
• Set "Dataset Pointer" and "max Dataset Pointer" to zero.
Dataset pointer/max. dataset pointer
In the ring mode the "max. Data Pointer" in the first ring indicates the same val-
ue as the "Dataset Pointer". However, it remains on the max. value whereas the
Dataset Pointer starts with 0 again (code for second or multiple ring).
29
