CAN
MEM CONFIGURATOR
Assign PCMCIA card code

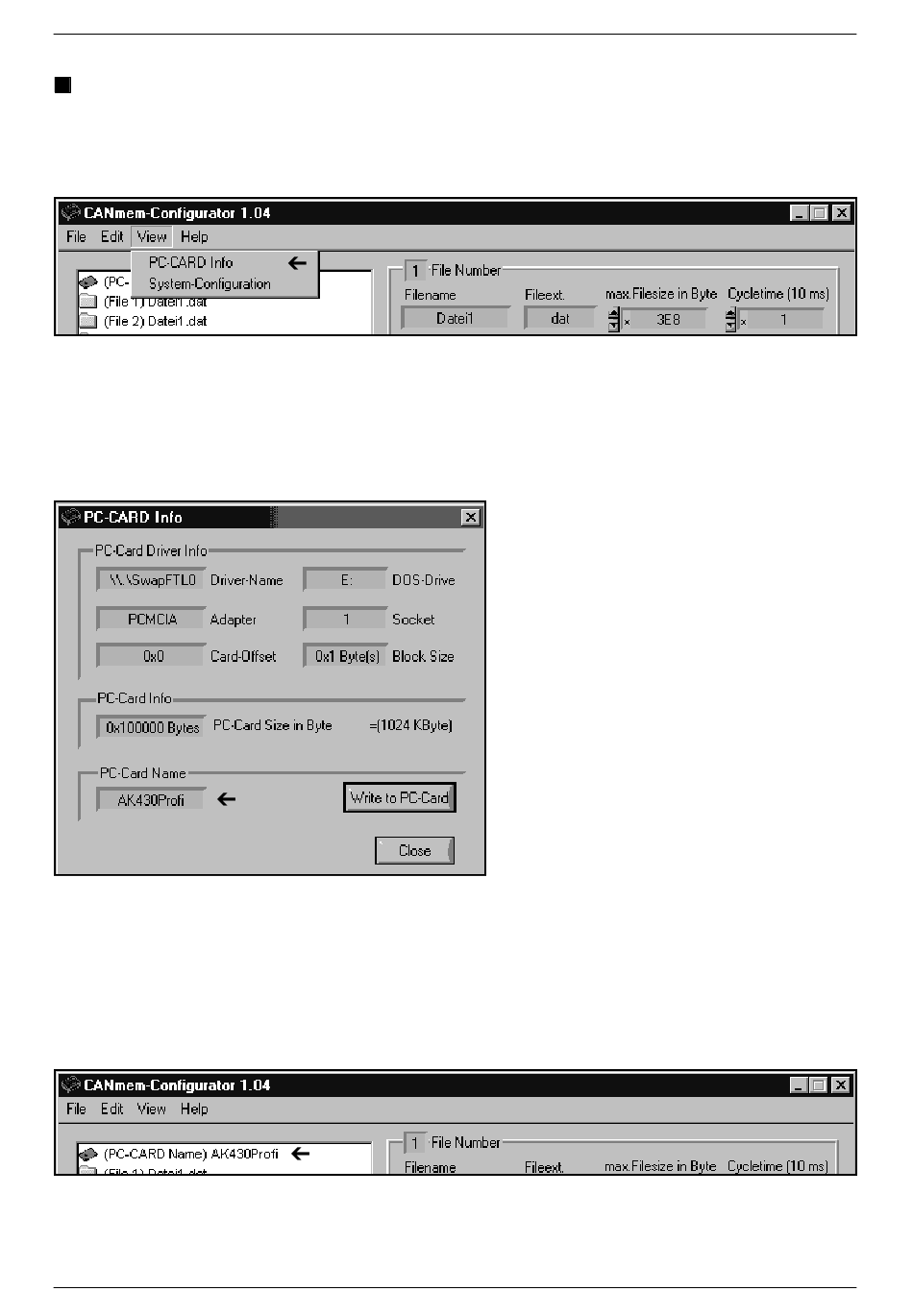

• Select the menu "View" when the memory card structure of CANmem or PC
has been read.
• Select "PC-Card Info".
Menu "View"
The PC card information window is opened. The upper part "PC-Card Driver In-
fo" is only displayed when an internal PCMCIA slot of the PC is used.
The PC-Card Info part indicates the memory capacity of the detected PCMCIA
card (here 1024 Kbytes = 1 Mbyte).
PC card information window
• Define a code of max. 11 characters (e.g. designation or serial number of the
machine) in the entry field "PC-Card Name".
• Transfer your entry by clicking on the button "Write to PC-Card".
The selected code (here for example AK430Profi) is displayed in the directory win-
dow.
Directory window of the CANmem Configurator
• Close the PC card information window by clicking on the button "Close".
