A1/+
A2/–
L1/+
X1
ETH

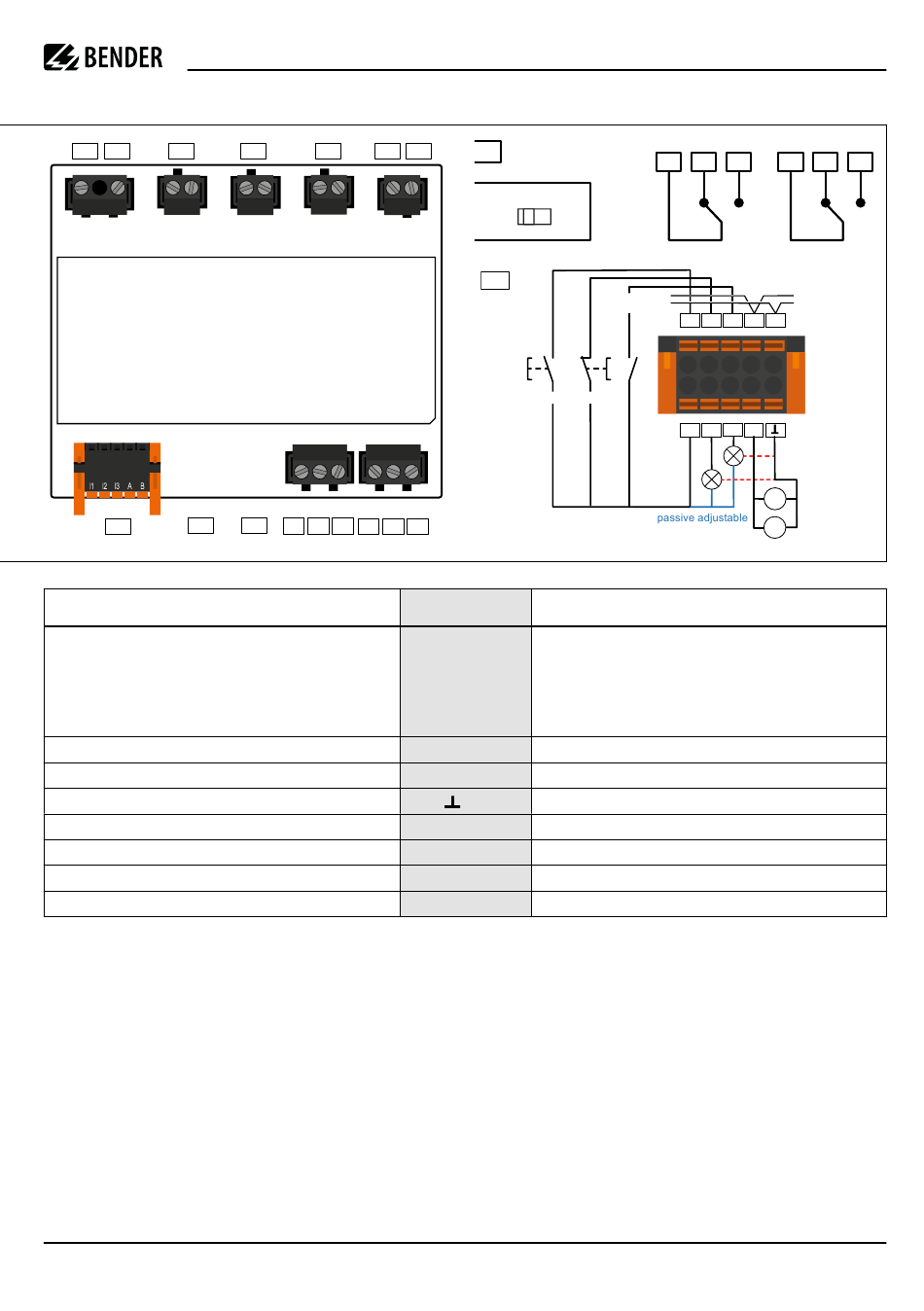

Anschlüsse
Versorgungsspannung der Ein- und Ausgänge I, Q und M.
Elektr. Überlastschutz. Autom. Abschaltung bei Kurzschluss und
Transiente (rücksetzbar)
Bei Versorgung über ein externes 24-V-Netzteil dürfen A1/+,
A2/- nicht angeschlossen werden.
Konfigurierbarer digitaler Ausgang
Konfigurierbarer analoger Ausgang (z. B. Messinstrument)
Bezugspotential Masse
Ethernet-Anschluss, Webserver, Modbus, IP
Terminierung für den BS-Bus
Relais 1
Relais 2
i
** Leitungsschutz vorsehen! Gemäß der DIN VDE
0100-430 ist bei der Versorgungsspannung ein
Leitungsschutz vorzusehen.
Inbetriebnahme des Geräts
1. Prüfen auf korrekten Anschluss des ISOMETER®s an
das zuüberwachende Netz.
2. Versorgungsspannung für ISOMETER® zuschalten
3. Inbetriebnahme-Assistent ausführen und die gefor-
derten Einstellungen durchführen. Bei einer erneuten
Inbetriebnahme können Sie ihn manuell über das
Gerätemenü aufrufen.
L2
L3/-
KE
E
R
11
12
14
21
22
24
Klemme/Terminal
R
R
OFF
ON
X1
Deactivate
high
low
active
active
TEST RESET
Supply voltage of the inputs and outputs I, Q and M.
+ (X1)
Electrical overload protection. Automatic shutdown in the event
of a short circuit and transient (resettable).
If the supply is via an external 24 V source, then A1/+, A2/-
must not be connected.
Configurable digital output
Q1, Q2 (X1)
Configurable analogue output (e.g. measuring instrument)
M+ (X1)
Reference potential ground
(X1)
Ethernet connector, webserver, modbus, IP
RJ45 (ETH)
Termination for the BS bus
R
Relay 1
11, 12, 14
Relay 2
21, 22, 24
i
** Provide line protection! According to DIN VDE
0100-430, a line protection shall be provided for
the supply voltage
Commissioning of the device
1. Check that the ISOMETER® is properly connected to
the system to be monitored.
2. Connect the supply voltage to the ISOMETER®
3. Execute the commissioning wizard and carry out the
required settings. For recommissioning, the commis-
sioning wizard can be opened manually via the de-
vice menu.
isoRW685W-D-x_D00419_03_Q_DEEN/03.2024
ISOMETER® isoRW685W-D(-B)
11
12
14
21
Device
I1 I2
I3
A B
+
Q1 Q2 M+
+24 V
active adjustable
A
V
Connection
22
24
RS-485
Currentmeter
Voltagemeter
5
