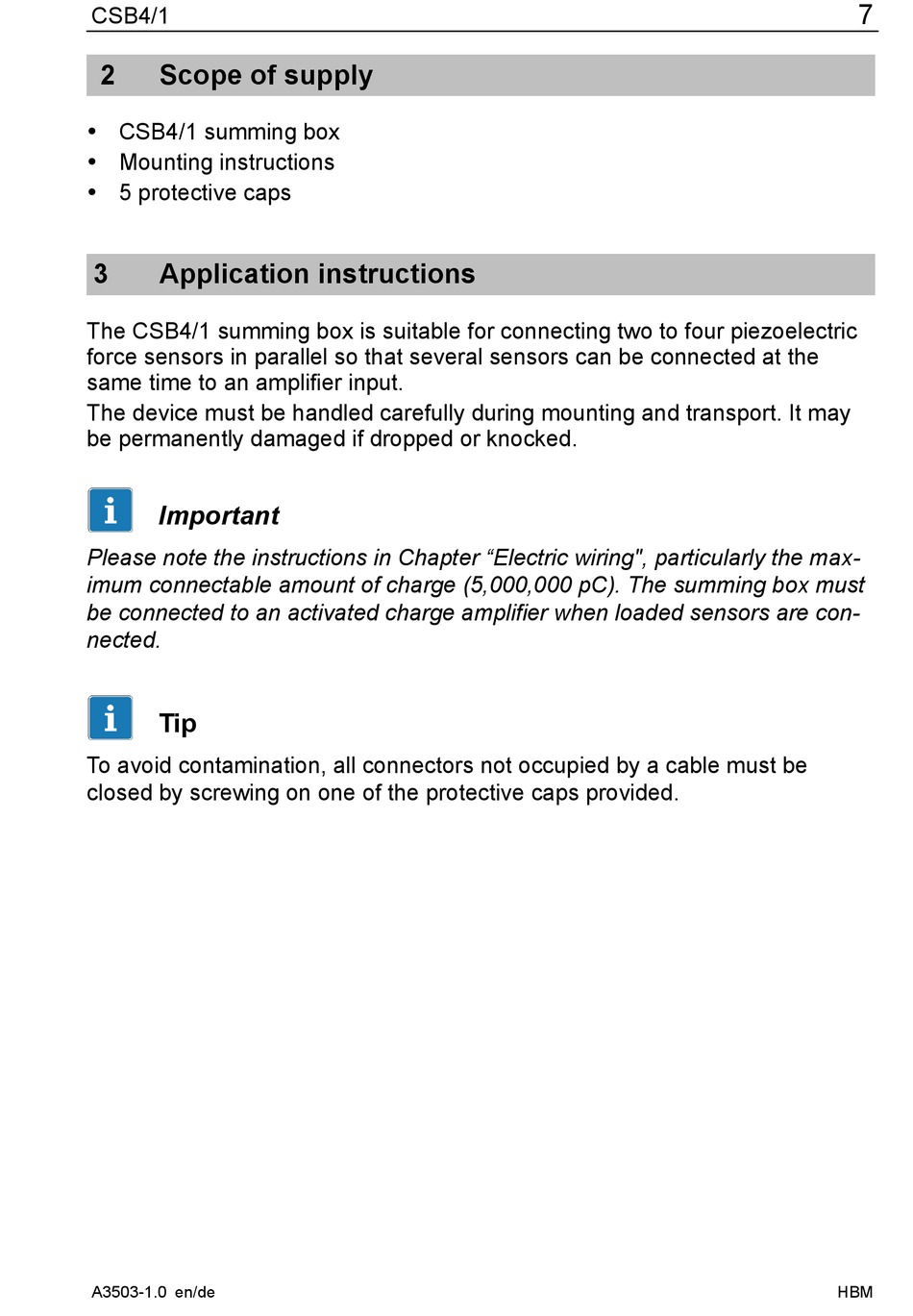

CSB4/1
2 Scope of supply
 CSB4/1 summing box
 Mounting instructions
 5 protective caps
3 Application instructions
The CSB4/1 summing box is suitable for connecting two to four piezoelectric
force sensors in parallel so that several sensors can be connected at the
same time to an amplifier input.
The device must be handled carefully during mounting and transport. It may
be permanently damaged if dropped or knocked.
Important
Please note the instructions in Chapter "Electric wiring", particularly the max-
imum connectable amount of charge (5,000,000 pC). The summing box must
be connected to an activated charge amplifier when loaded sensors are con-
nected.
Tip
To avoid contamination, all connectors not occupied by a cable must be
closed by screwing on one of the protective caps provided.
A3503-1.0 en/de
7
