Compact Classic pro

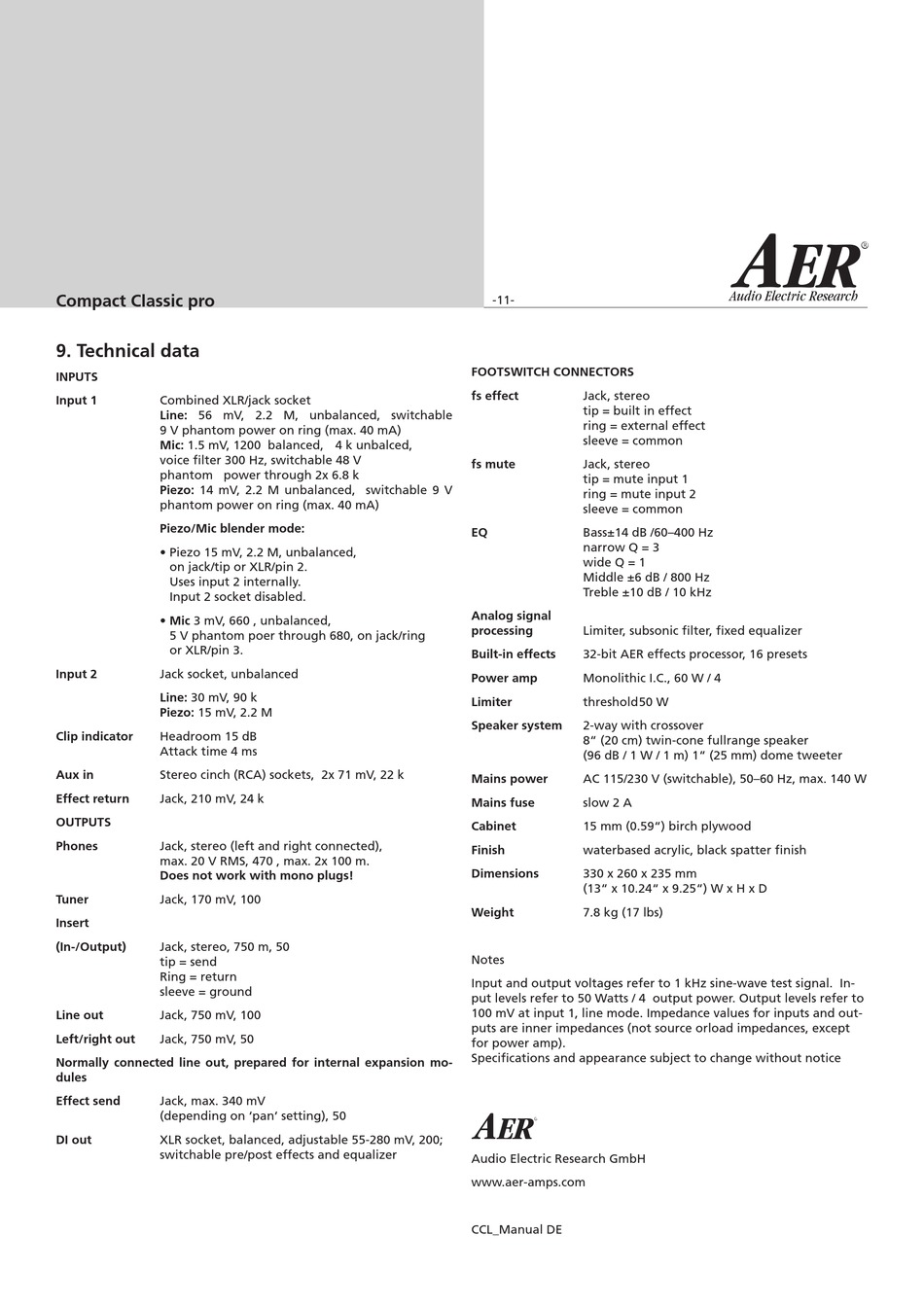

9. Technical data
INPUTS
Input 1 Combined XLR/jack socket
Line: 56 mV, 2.2 M, unbalanced, switchable
9 V phantom power on ring (max. 40 mA)
Mic: 1.5 mV, 1200 balanced, 4 k unbalced,
voice filter 300 Hz, switchable 48 V
phantom power through 2x 6.8 k
Piezo: 14 mV, 2.2 M unbalanced, switchable 9 V
phantom power on ring (max. 40 mA)
Piezo/Mic blender mode:
• Piezo 15 mV, 2.2 M, unbalanced,
on jack/tip or XLR/pin 2.
Uses input 2 internally.
Input 2 socket disabled.
• Mic 3 mV, 660 , unbalanced,
5 V phantom poer through 680, on jack/ring
or XLR/pin 3.
Input 2 Jack socket, unbalanced
Line: 30 mV, 90 k
Piezo: 15 mV, 2.2 M
Clip indicator Headroom 15 dB
Attack time 4 ms
Aux in Stereo cinch (RCA) sockets, 2x 71 mV, 22 k
Effect return Jack, 210 mV, 24 k
OUTPUTS
Phones Jack, stereo (left and right connected),
max. 20 V RMS, 470 , max. 2x 100 m.
Does not work with mono plugs!
Tuner Jack, 170 mV, 100
Insert
(In-/Output) Jack, stereo, 750 m, 50
tip = send
Ring = return
sleeve = ground
Line out Jack, 750 mV, 100
Left/right out Jack, 750 mV, 50
Normally connected line out, prepared for internal expansion mo-
dules
Effect send Jack, max. 340 mV
(depending on 'pan' setting), 50
DI out XLR socket, balanced, adjustable 55-280 mV, 200;
switchable pre/post effects and equalizer
-11-
FOOTSWITCH CONNECTORS
fs effect Jack, stereo
tip = built in effect
ring = external effect
sleeve = common
fs mute Jack, stereo
tip = mute input 1
ring = mute input 2
sleeve = common
EQ Bass±14 dB /60–400 Hz
narrow Q = 3
wide Q = 1
Middle ±6 dB / 800 Hz
Treble ±10 dB / 10 kHz
Analog signal
processing Limiter, subsonic filter, fixed equalizer
Built-in effects 32-bit AER effects processor, 16 presets
Power amp Monolithic I.C., 60 W / 4
Limiter threshold 50 W
Speaker system 2-way with crossover
8" (20 cm) twin-cone fullrange speaker
(96 dB / 1 W / 1 m) 1" (25 mm) dome tweeter
Mains power AC 115/230 V (switchable), 50–60 Hz, max. 140 W
Mains fuse slow 2 A
Cabinet 15 mm (0.59") birch plywood
Finish waterbased acrylic, black spatter finish
Dimensions 330 x 260 x 235 mm
(13" x 10.24" x 9.25") W x H x D
Weight 7.8 kg (17 lbs)
Notes
Input and output voltages refer to 1 kHz sine-wave test signal. In-
put levels refer to 50 Watts / 4 output power. Output levels refer to
100 mV at input 1, line mode. Impedance values for inputs and out-
puts are inner impedances (not source orload impedances, except
for power amp).
Specifications and appearance subject to change without notice
