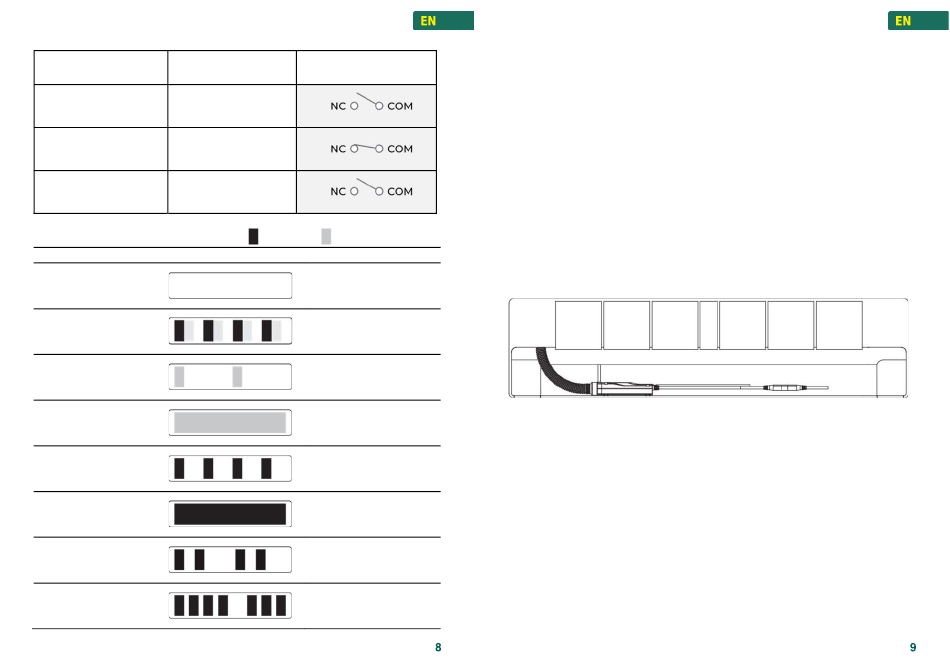

5.0 Alarm Relay Operation Table
Pump Status Condensate
Level
Not powered N/A
Powered Below alarm level
Powered Alarm activated
6.0 LED Indication
Status LED Pattern
Not powered
Startup LED
Idle
Pumping water
High water level
Alarm mode relay
High temperature
Invalid state
Instruction Manual
Default Operation
red green
Reason
Miswired, unplugged
or no voltage
Pump is starting
No water to pump
Pump is running
Increased pump
speed
High water level,
alarm activated
High temperature
detected
Sensor needs cleaning
7.0 Transport, Packaging and Storage
The VAMP-F comes in a cardboard box to protect the parts. The
cardboard box protects against vibrations during transport and
handling. Always use the cardboard box to protect the VAMP-F and
accessories and secure it to the cargo area during transport.
The storage temperatures (Section 3) must be maintained, and the
packaging must be closed. Do not expose to direct sun and to high
temperature, e.g. within service vehicles.
8.0 Installation
8.1 Application
The REFCO VAMP-F is intended for use within an air-conditioning
indoor unit. Its purpose is to remove condensate water from the
indoor unit's drain pan in circumstances where the unit's drain hose
is not sufficient.
