1
6
Connecting the
IMPORTANT! Operating the inverter with a free broken-out option card slot is not permit-
data cable to the
ted.
Fronius Symo Hy-
An appropriate blanking cover (42,0405,2020) to cover the slot is available from Fronius
brid
as an option.

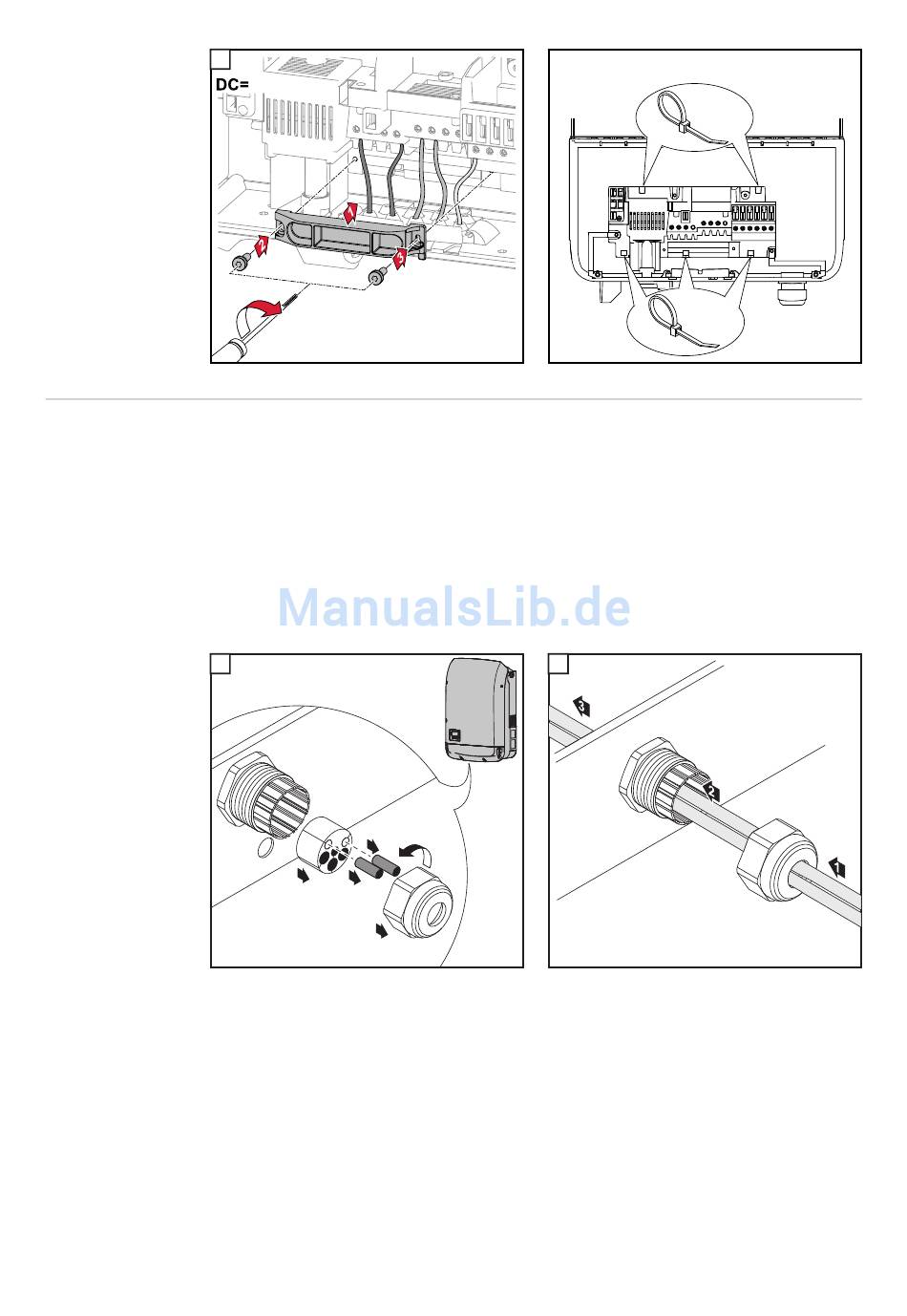

IMPORTANT! Note the following if data communication cables are being introduced into
the inverter:
-
-
1
1
18
depending on the number and cross-section of the data communication cables that
are being introduced, take the relevant blanking plugs out of the cable gland and insert
the data communication cables.
the relevant blanking plugs must be inserted into the free openings on the cable gland.
5
3
4
2
2
2
1
