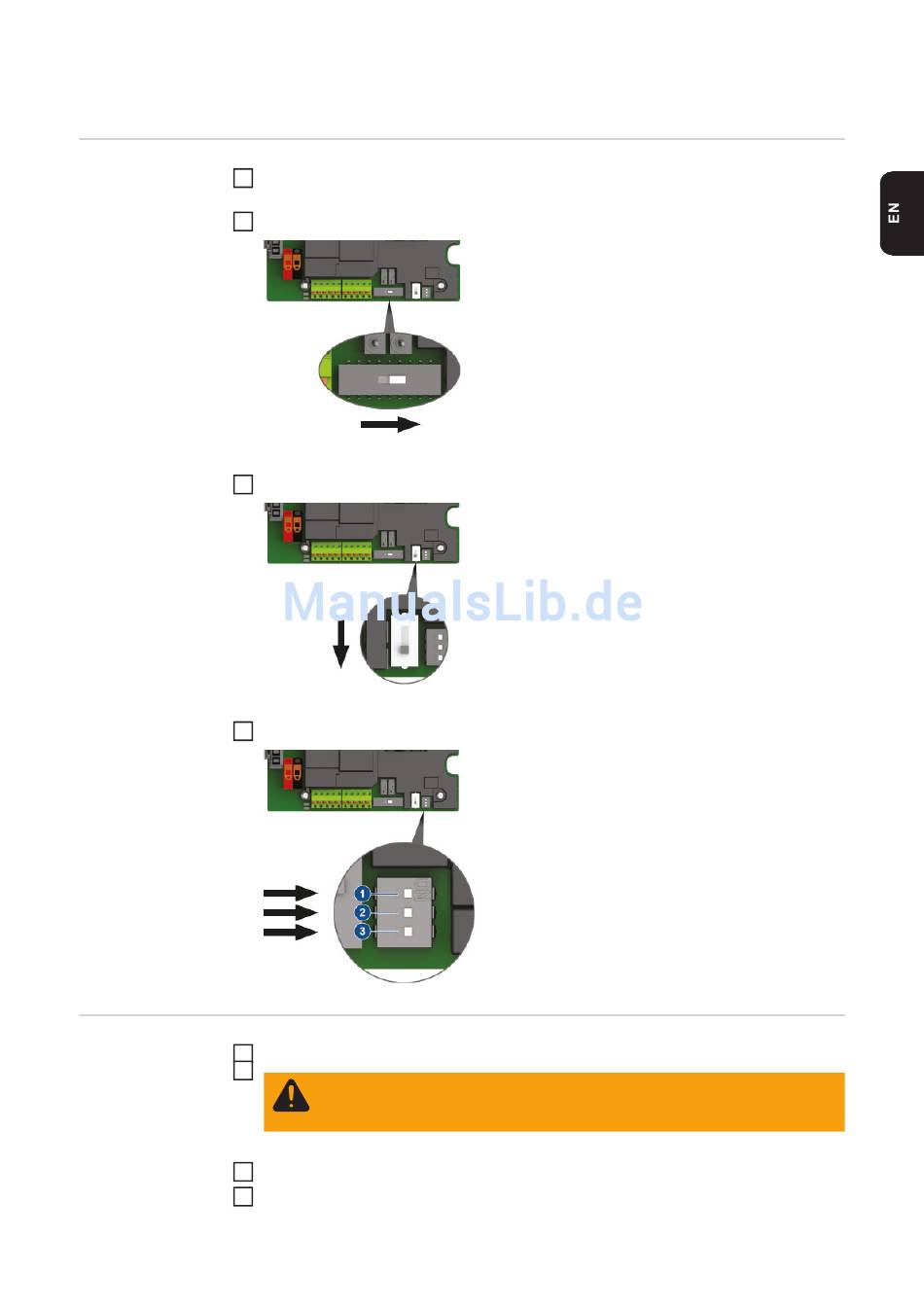

Connecting the Tesla Powerwall
Setting the com-
1
munication and
address switches
2
3
4
Connecting ca-
1
bles to the Tesla
2
Powerwall
3
4
Remove the bottom cover from the Tesla Powerwall (in accordance with the Tesla In-
stallation Instructions)
Set the CAN-Modbus switch
Set the connection switch
Set the address switch
Remove the splash cover (in accordance with the Tesla Installation Instructions)
WARNING! An electric shock can be fatal. Danger due to DC voltage from
inverter. If the Tesla Powerwall is supplied with prefitted connection cables,
these must be removed as they are only designed for 600 V DC.
Remove the Tesla connection cables (DC cable and data cable)
Fit the NPT screw connection and thread in all cables
Install the 15 A inline fuse (as close as possible to the inverter)
Protocol = Modbus (RS485)
Concluded with Modbus bias
Powerwall address = 24
