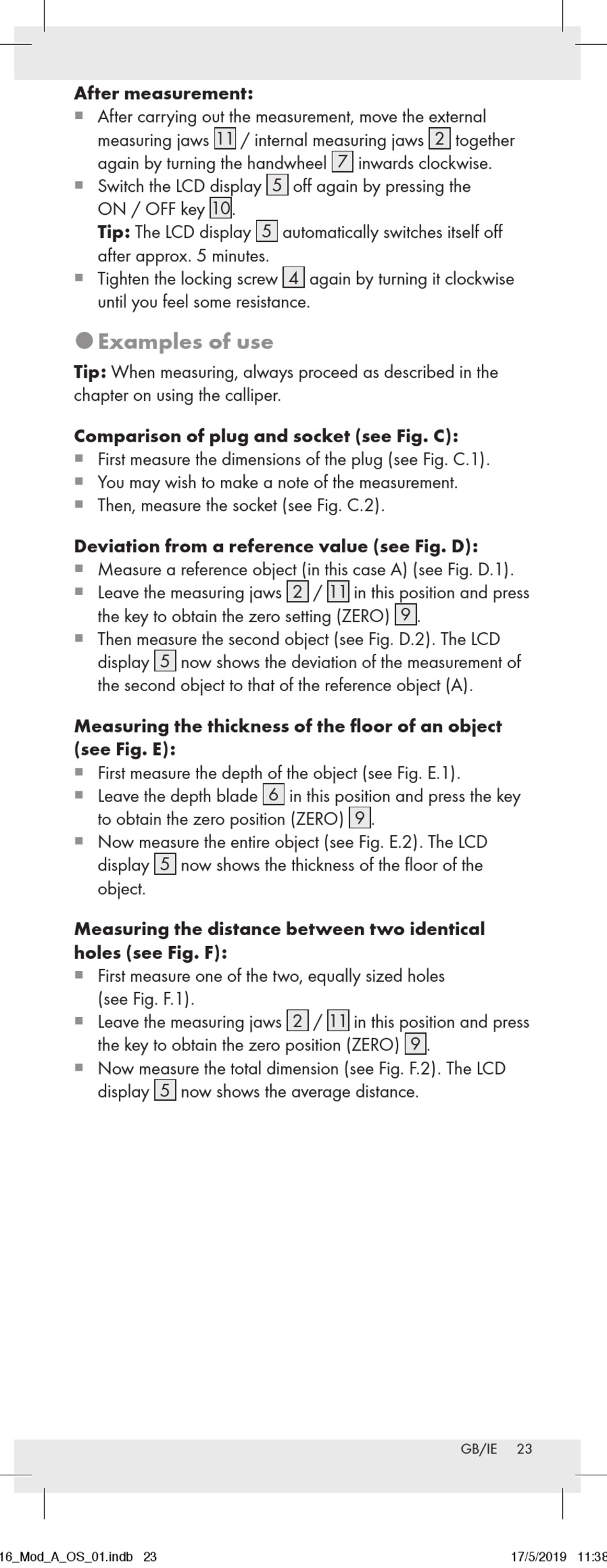

After measurement:
After carrying out the measurement, move the external
¡
¡
measuring jaws 11 / internal measuring jaws 2 together
again by turning the handwheel 7 inwards clockwise.
Switch the LCD display 5 off again by pressing the
¡
¡
ON / OFF key 10 .
Tip: The LCD display 5 automatically switches itself off
after approx. 5 minutes.
Tighten the locking screw 4 again by turning it clockwise
¡
¡
until you feel some resistance.
˜ Examples of use
Tip: When measuring, always proceed as described in the
chapter on using the calliper.
Comparison of plug and socket (see Fig. C):
First measure the dimensions of the plug (see Fig. C.1).
¡
¡
You may wish to make a note of the measurement.
¡
¡
Then, measure the socket (see Fig. C.2).
¡
¡
Deviation from a reference value (see Fig. D):
t
Measure a reference object (in this case A) (see Fig. D.1).
¡
¡
Leave the measuring jaws 2 / 11 in this position and press
¡
¡
the key to obtain the zero setting (ZERO) 9 .
Then measure the second object (see Fig. D.2). The LCD
¡
¡
:
display 5 now shows the deviation of the measurement of
ou
the second object to that of the reference object (A).
Measuring the thickness of the floor of an object
(see Fig. E):
First measure the depth of the object (see Fig. E.1).
t
¡
¡
Leave the depth blade 6 in this position and press the key
¡
¡
to obtain the zero position (ZERO) 9 .
Now measure the entire object (see Fig. E.2). The LCD
¡
¡
display 5 now shows the thickness of the floor of the
object.
Measuring the distance between two identical
es
holes (see Fig. F):
First measure one of the two, equally sized holes
¡
¡
(see Fig. F.1).
Leave the measuring jaws 2 / 11 in this position and press
¡
¡
the key to obtain the zero position (ZERO) 9 .
oo
Now measure the total dimension (see Fig. F.2). The LCD
¡
¡
display 5 now shows the average distance.
