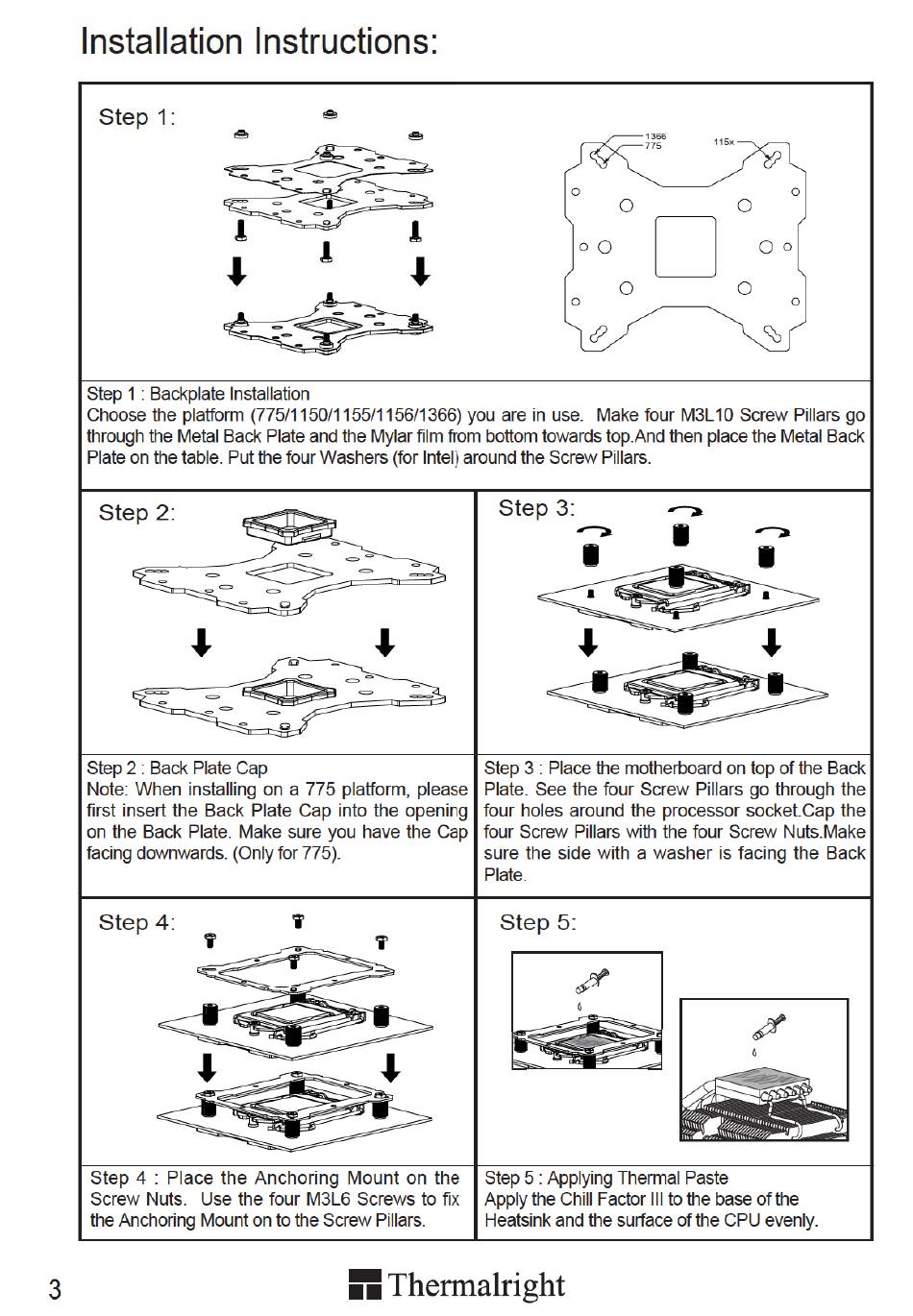

Installation
Step 1:
Step 1 : Backplate Installation
Choose the platform (775/1150/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars go
through the Metal Back Plate and the Mylar film from bottom towards top.And then place the Metal Back
Plate on the table. Put the four Washers (for Intel) around the Screw Pillars.
Step 2:
Step 2 : Back Plate Cap
Note: When installing on a 775 platform, please
first insert the Back Plate Cap into the opening
on the Back Plate. Make sure you have the Cap
facing downwards. (Only for 775).
Step 4:
Step 4 : Place the Anchoring
Screw Nuts. Use
the Anchoring Mount on to the Screw Pillars.
3
Instructions:
Mount on the
the four M3L6 Screws
Thermalright
o
o
(4)
Step 3:
Step 3 : Place the motherboard on top of the Back
Plate. See the four Screw Pillars go through the
four holes around the processor socket.Cap the
four Screw Pillars
sure the side with a washer is facing the Back
Plate.
step 5:
Step 5 : Applying Thermal Paste
Apply the Chill Factor Ill to the base of the
to fix
Heatsink and the surface of the CPU evenly.
1366
115x
775
o
O O
O O
o
with the four Screw Nuts.Make
