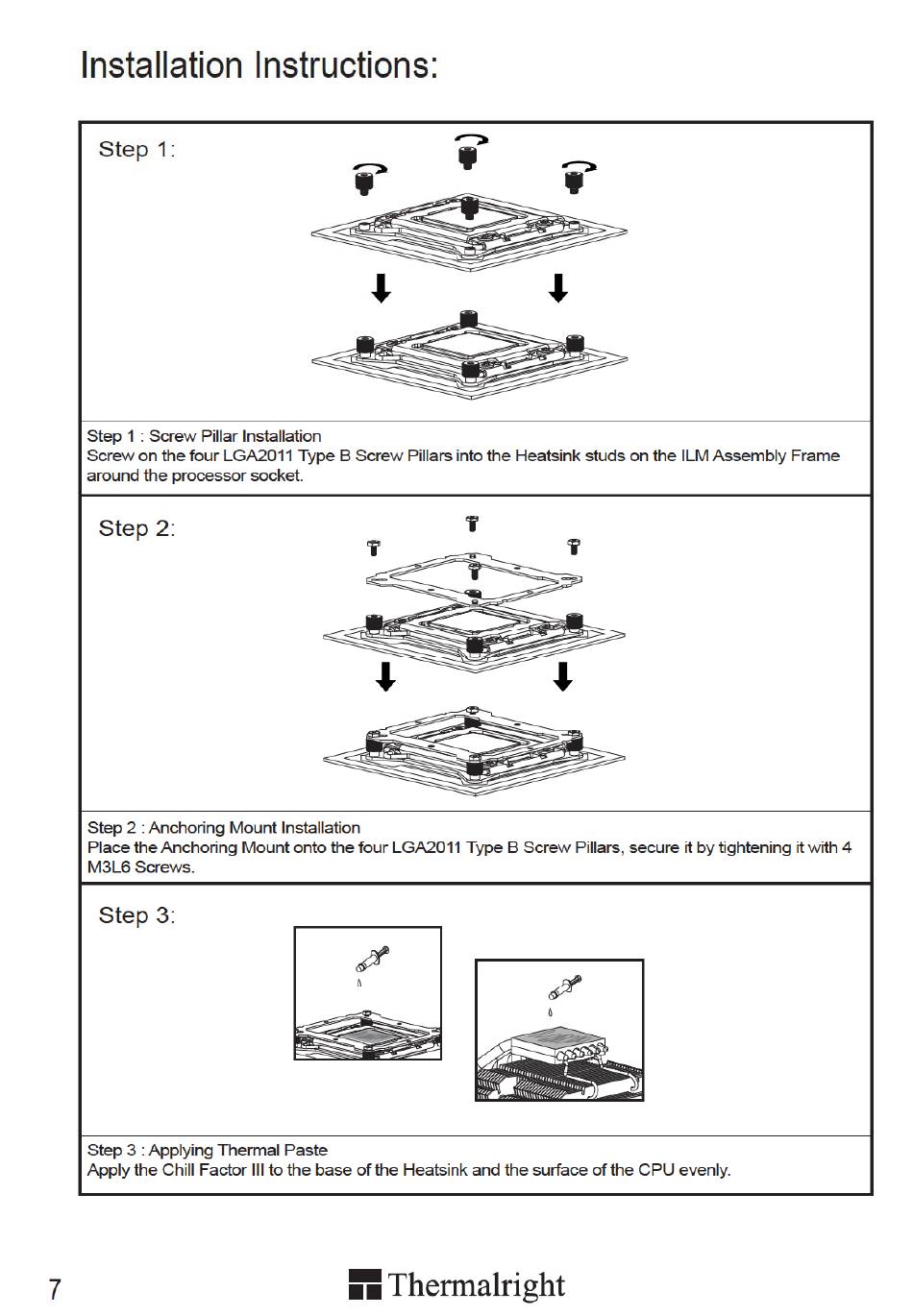

Installation
Step 1:
Step 1 : Screw Pillar Installation
Screw on the four LGA2011 Type B Screw Pillars into the Heatsink studs on the ILM Assembly
around the processor socket.
step 2:
Step 2 : Anchoring
Place the Anchoring
M3L6 Screws.
Step 3:
Step 3 : Applying Thermal Paste
Apply the Chill Factor Ill to the base of the Heatsink and the surface of the CPU evenly.
7
Instructions:
Mount Installation
Mount onto the four LGA2011 Type B Screw Pillars, secure it by tightening
Thermalright
Frame
it with 4
