Thermalright AXP-100RH Montageanleitung Seite 11

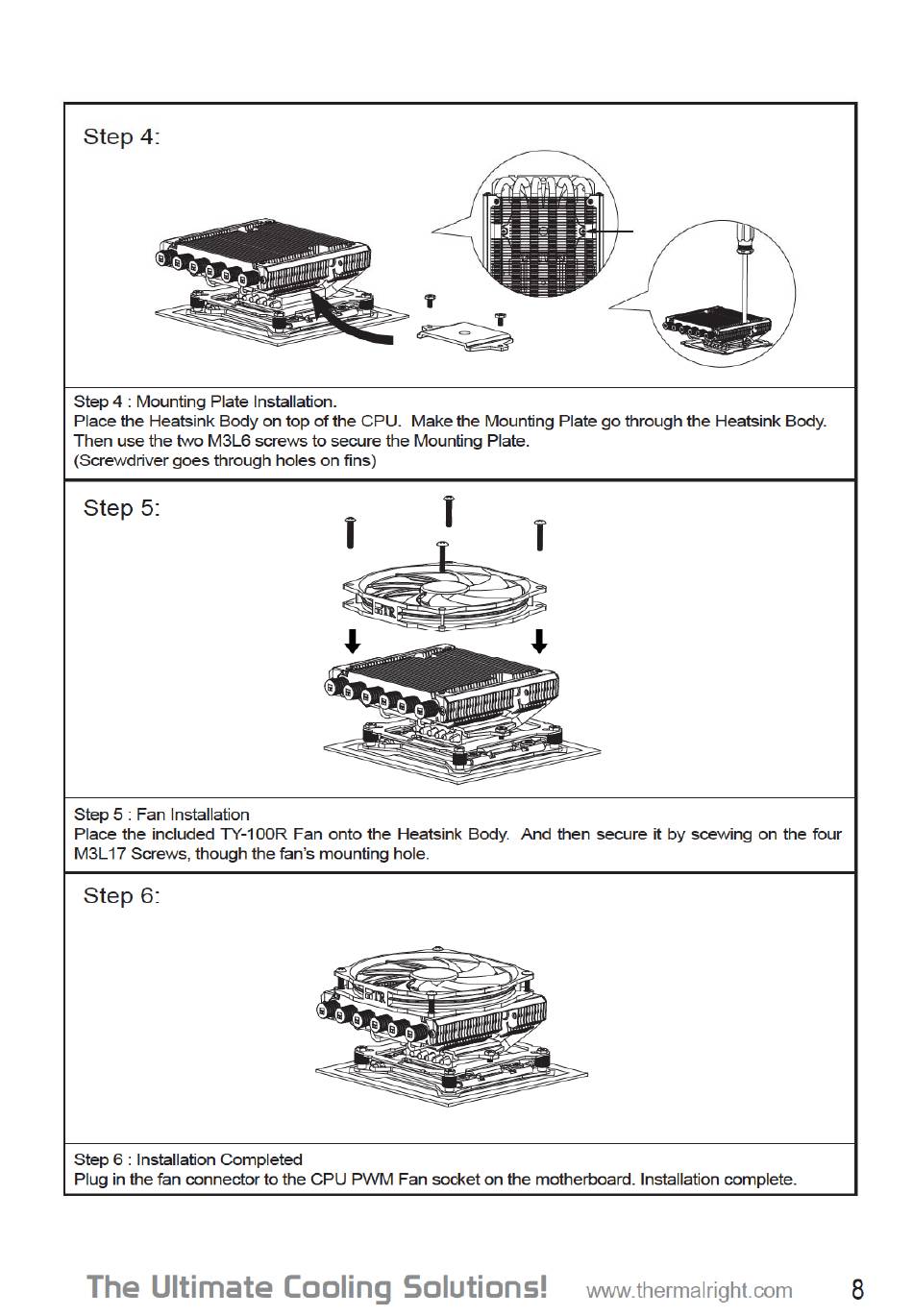

Step 4:
Step 4 : Mounting Plate Installation.
Place the Heatsink Body on top of the CPIJ.
Then use the M3L6 screws to secure the Mounting Plate.
(Screwdriver goes through holes on fins)
Step 5:
Step 5 : Fan Installation
Place the included TY-I OOR Fan onto the Heatsink
M3L17 Screws, though the fan's mounting hole.
Step 6:
Step 6 : Installation Completed
Plug in the fan connector
The Ultimate
Make the Mounting
to the CPU PWM Fan socket on the motherboard.
Cooling Solutions!
Plate go through the Heatsink
Body. And then secure it by scewing
Installation complete.
www.thermalright.com
Body.
on the four
8
