Thermalright AXP-100RH Montageanleitung Seite 15

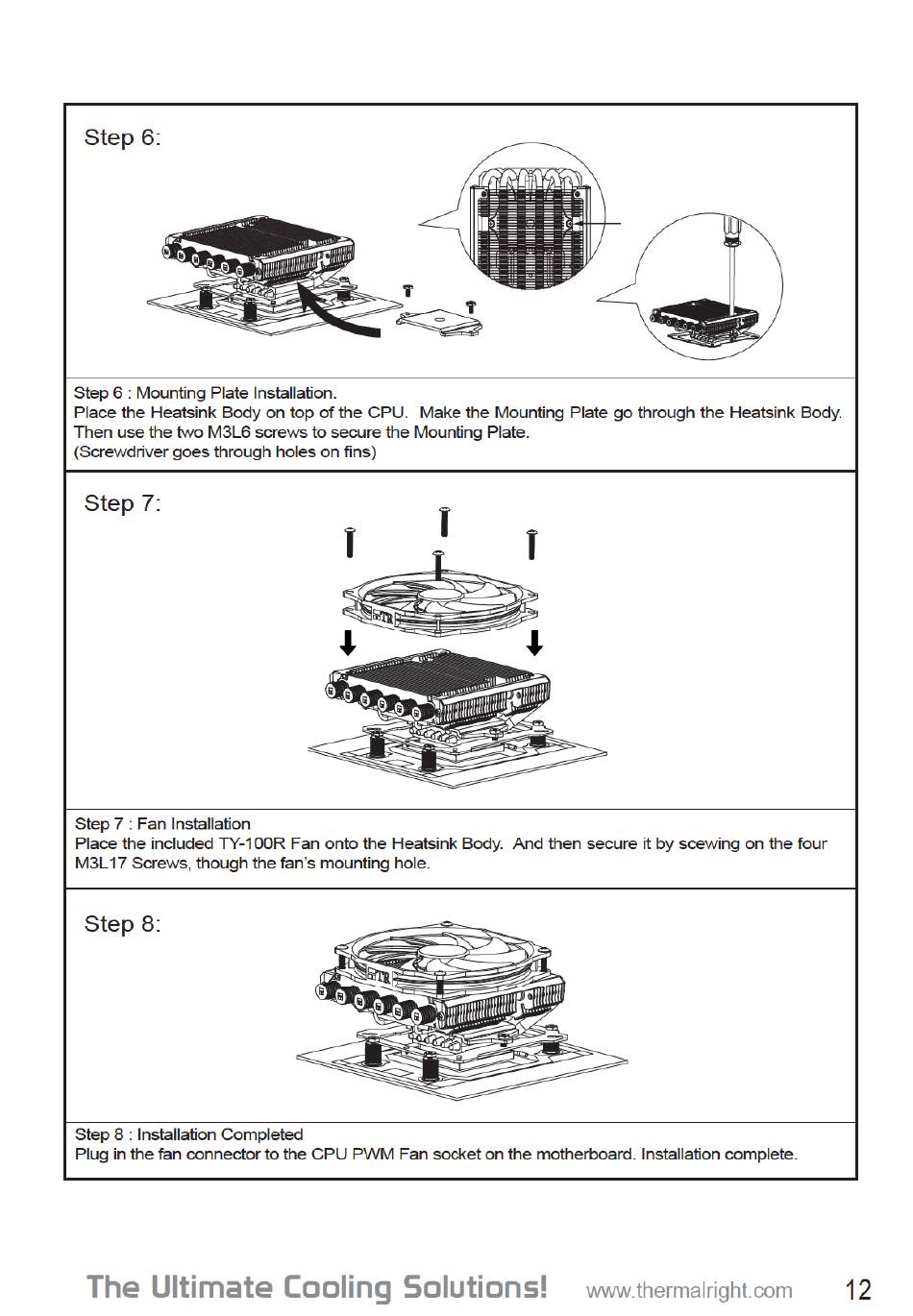

Step 6:
Step 6 : Mounting Plate Installation.
Place the Heatsink Body on top of the CPIJ.
Then use the two M3L6 screws to secure the Mounting Plate.
(Screwdriver goes through holes on fins)
step 7:
Step 7 : Fan Installation
Place the included TY-I OOR Fan onto the Heatsink
M3L17 Screws, though the fan's mounting
Step 8:
Step 8 : Installation Completed
Plug in the fan connector
The Ultimate
Make the Mounting
hole.
to the CPU PWM Fan socket on the motherboard.
Cooling Solutions!
7
Plate go through the Heatsink
Body. And then secure it by scewing on the four
www.thermalright.com
Body.
Installation complete.
12
