AXP-IOORH
AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+

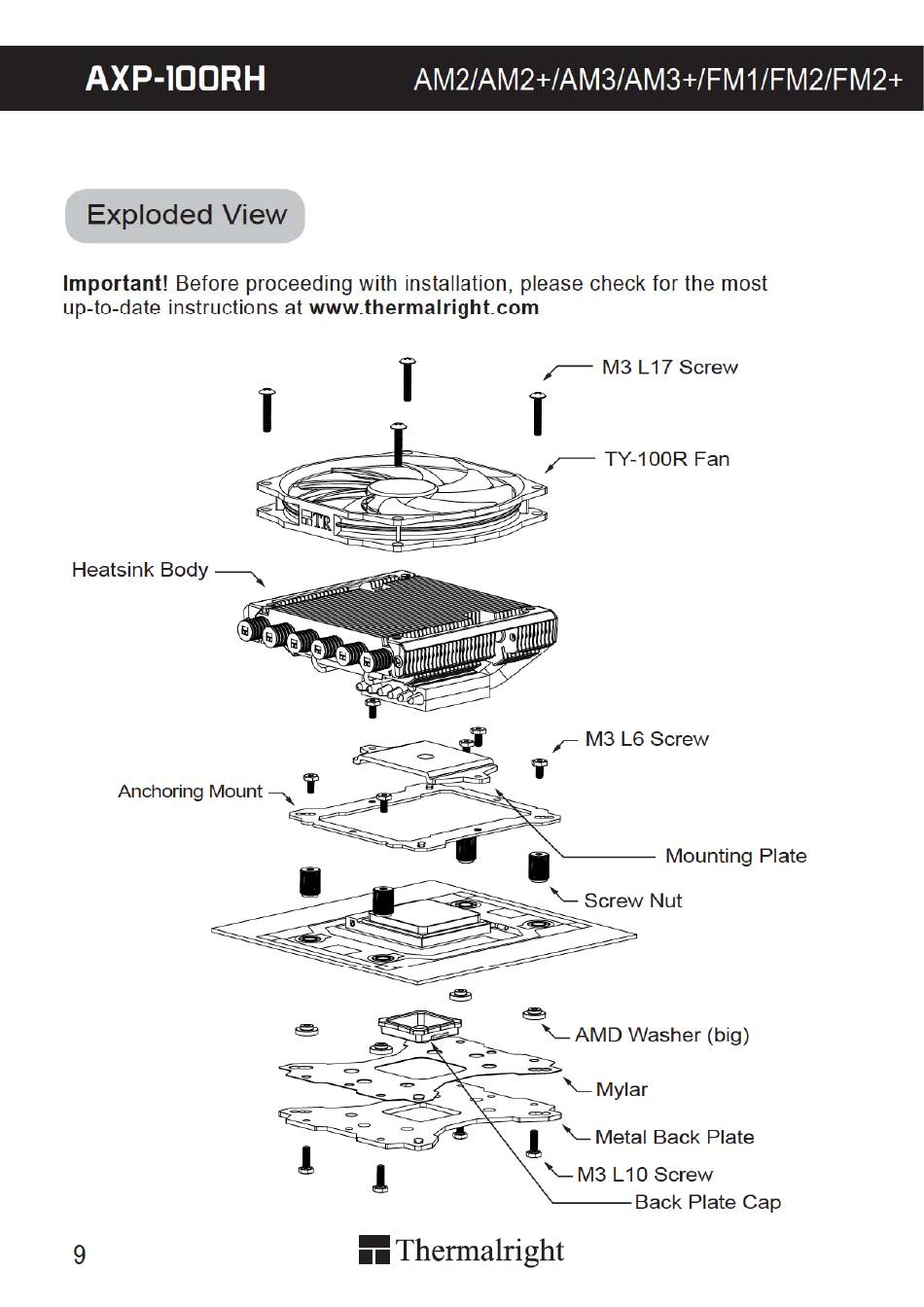

Exploded View
Important! Before proceeding with installation, please check for the most
up-to-date instructions at www.thermalright.com
Z— M3 L17 Screw
Z— TY-IOOR Fan
HeatsinkBody—X
M3 L6 Screw
Anchoring Mount
Mounting Plate
screw Nut
AMD Washer (big)
X—Mylar
Metal Back Plate
M3 LIO Screw
Back Plate Cap
Thermalright
9
