5.8.

TEMPERATURE MEASUREMENT

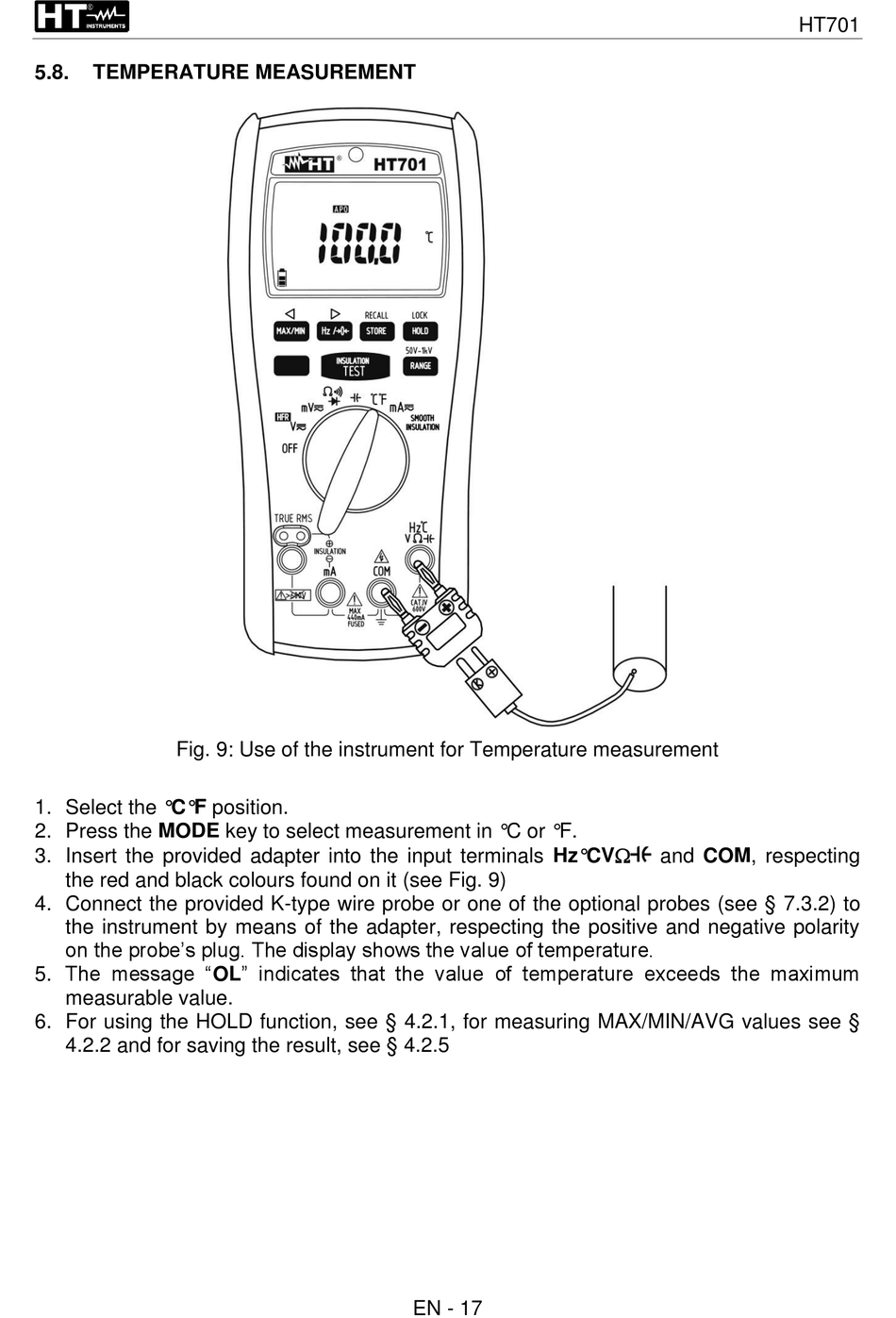

Fig. 9: Use of the instrument for Temperature measurement
1. Select the °C°F position.
2. Press the MODE key to select measurement in °C or °F.
3. Insert the provided adapter into the input terminals Hz°CV
the red and black colours found on it (see Fig. 9)
4. Connect the provided K-type wire probe or one of the optional probes (see § 7.3.2) to
the instrument by means of the adapter, respecting the positive and negative polarity
on the probe's plug. The display shows the value of temperature.
5. The message "OL" indicates that the value of temperature exceeds the maximum
measurable value.
6. For using the HOLD function, see § 4.2.1, for measuring MAX/MIN/AVG values see §
4.2.2 and for saving the result, see § 4.2.5
EN - 17
HT701
and COM, respecting
