R11: FAN
R12: Power Inlet
Connects the datachable power cord.
R13: On/Off Switch
Powers on/off.

(D) Conditional Access

Amongst the channels that are scanned via the receiver, some channel can be properly tuned on
only with the corresponding Smartcard. The receiver provides one Smartcard Reader slot and users
need to purchase those Smartcards that are required for viewing such subscription based services.

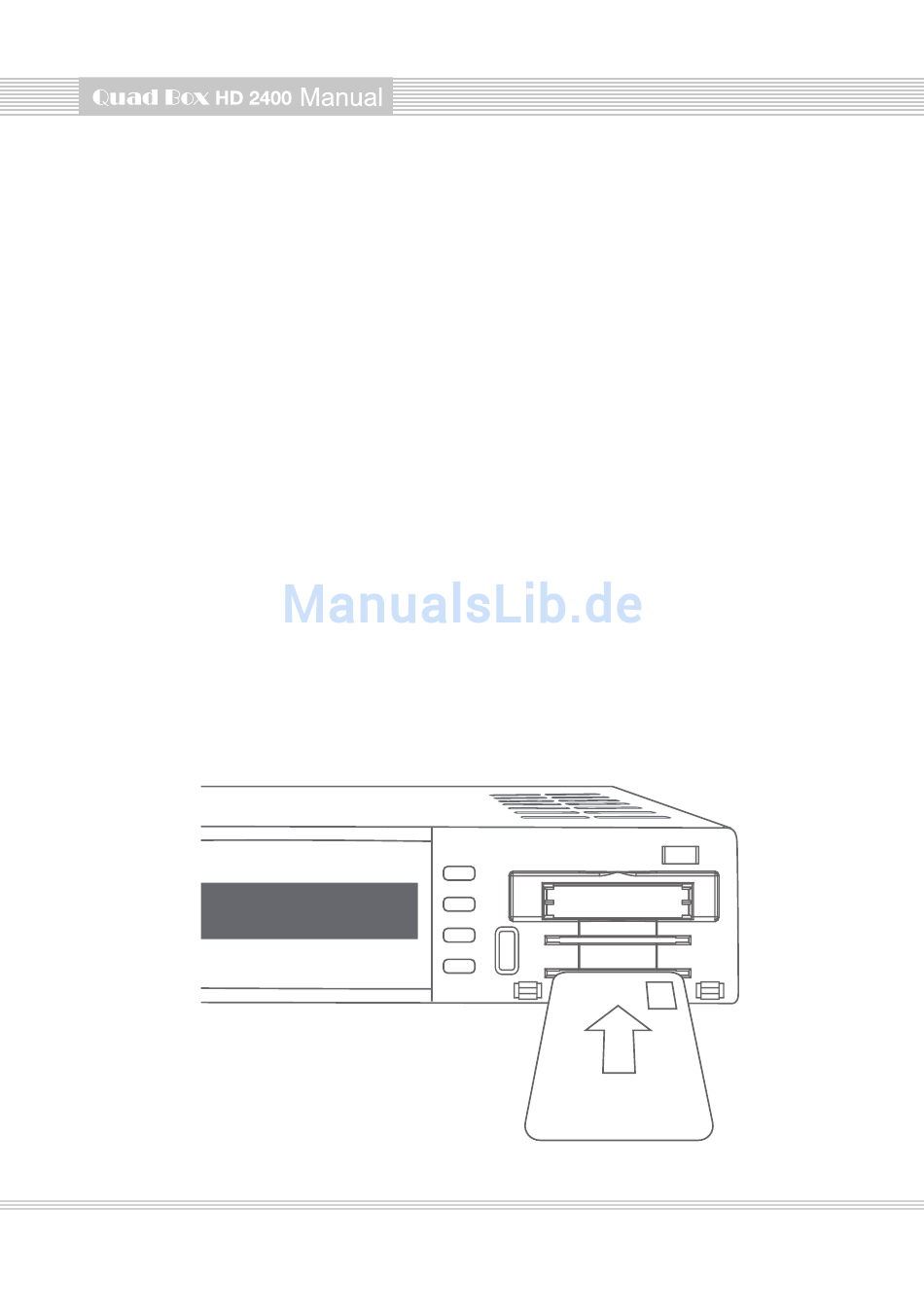

Insertion of Smartcard
① Open the door on the right side.
② Insert Smartcard as in the following instruction.
③ Make sure that the Smartcard remains inserted while viewing.
Quad Box
9
