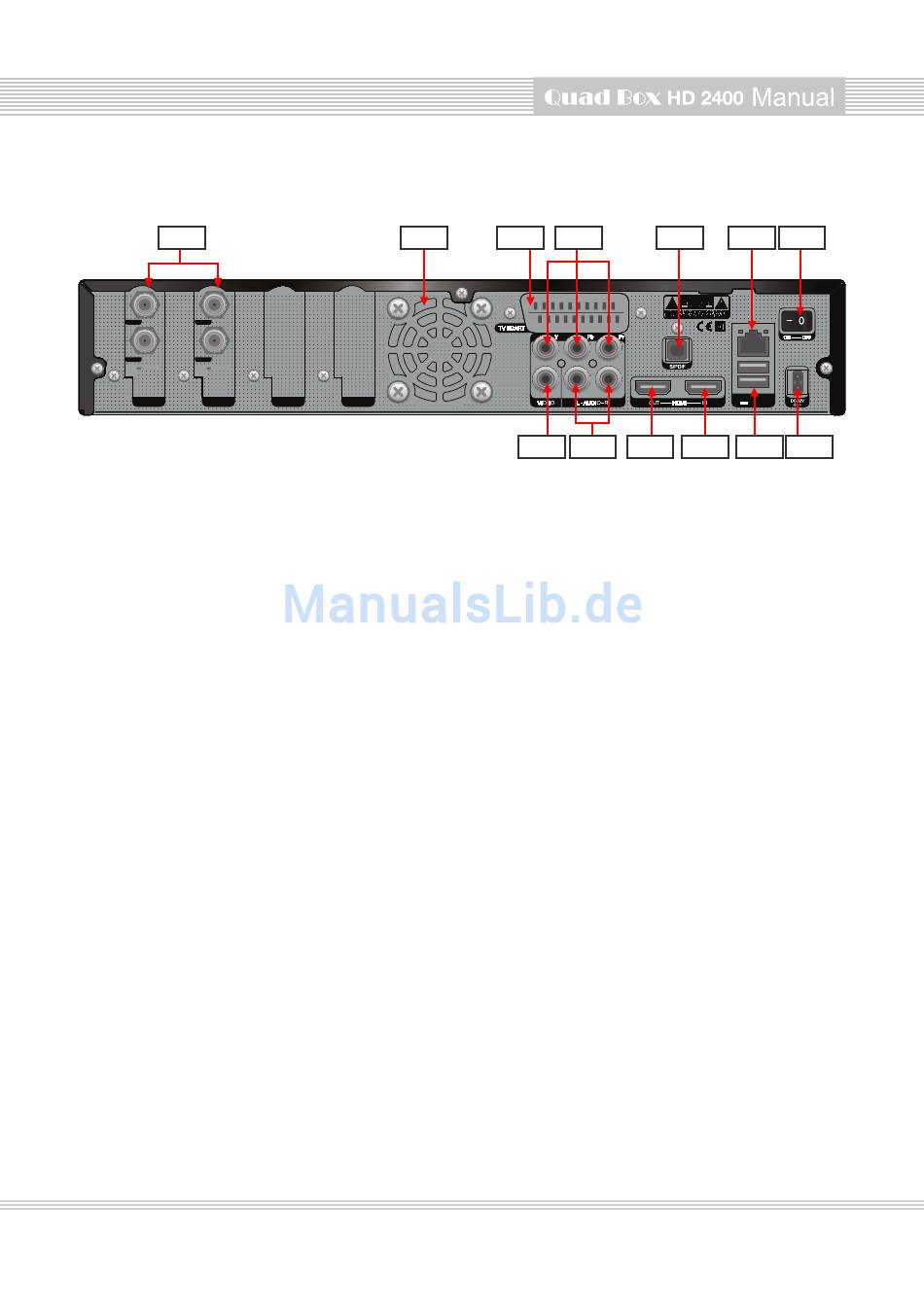

▣ Rear Panel

R1
LNB IN LNB IN
Loop Out Loop Out
Max 400mA Max 400mA
13/18V 13/18V
22KHz 22KHz
TUNER A TUNER B
R1: Two pluggable Tuner Slots
Pluggable Type DVB-S2 and DVB C/T Hybrid Tuner available. Insert plug DVB-T/T2 Tuner.
R2: SCART
One SCART connector is provided for TV using SCART cable.
R3: Video Output
Connects to TV using RCA cable(composite YPbPr).
R4: Component (YPbPr)
Connects to TV using a component cable.
R5: Audio output
Connects to TV using RCA cable.
R6: HDMI OUT
Connects to TV using a HDMI cable for both audio and video signals.
R7: HDMI IN
Connects external devices to the receiver.
R8: Ethernet
Connects the PC or another set top box of the receiver.
R9: USB
Connects the USB memory stick or external HDD.
R10: S/PDIF
Connects to a digital audio system using S/PDIF cable.
8
R11
TUNER C TUNER D
R2 R4 R10
R3 R5 R6
R8 R13
USB2.0X2
500mA Max
5V
R7 R9 R12
