(C) Product Descriptions

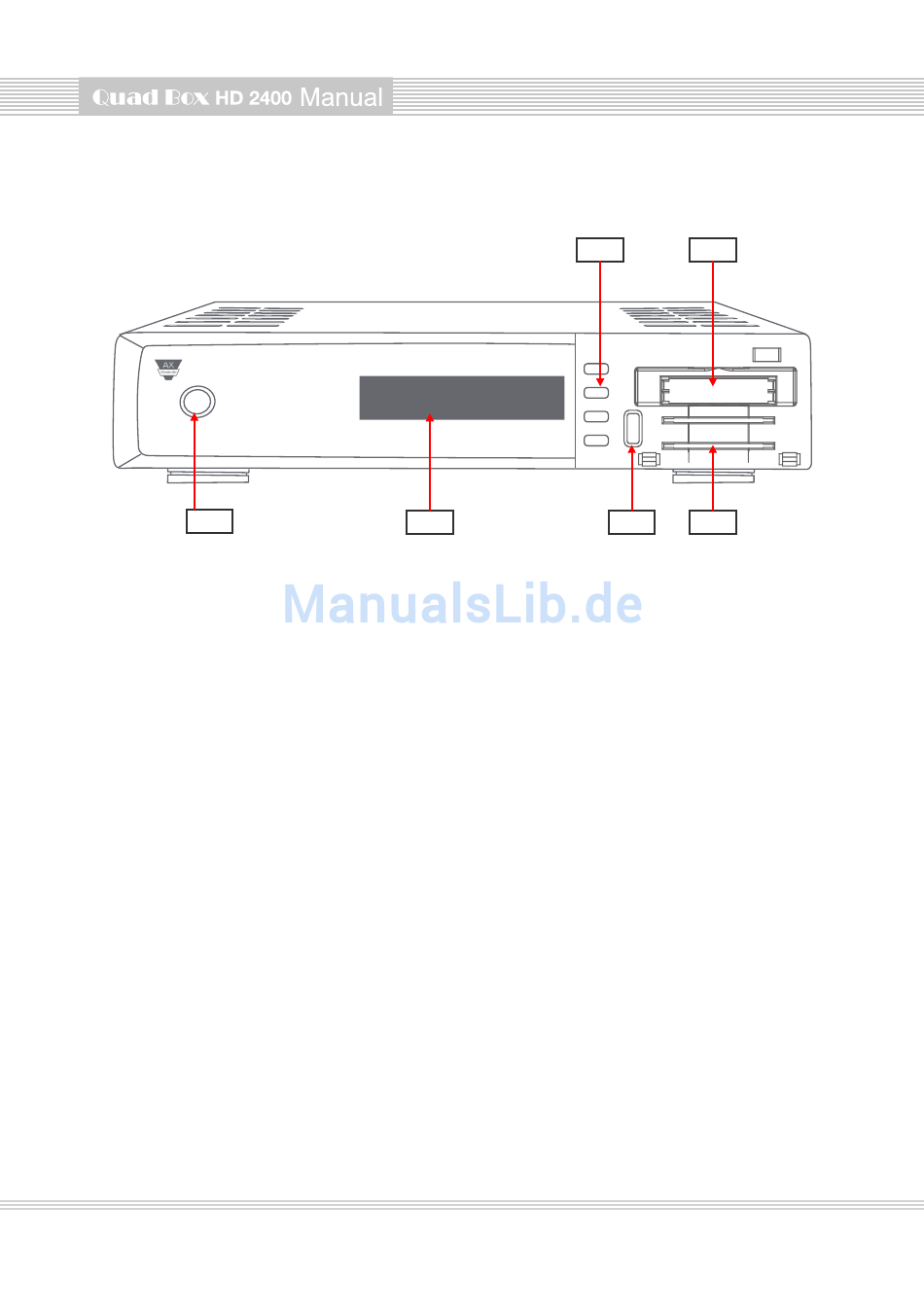

▣ Front Panel

F2
F1: OLED Display
Displays the current channel or certain programming function when using the menus.
256 x 64 pixels (Blue)
F2: Button (Power On/Off)
F3: Buttons (CH ▼/▲, Vol -/+)
F4: USB Host
Connects the USB memory stick or external HDD.
F5: CI Module Slot
Two CI module slots are provide.
F6: Smartcard Reader Slot
Two Smartcard slots are provide.
Quad Box
F1
F3 F6
F4 F5
