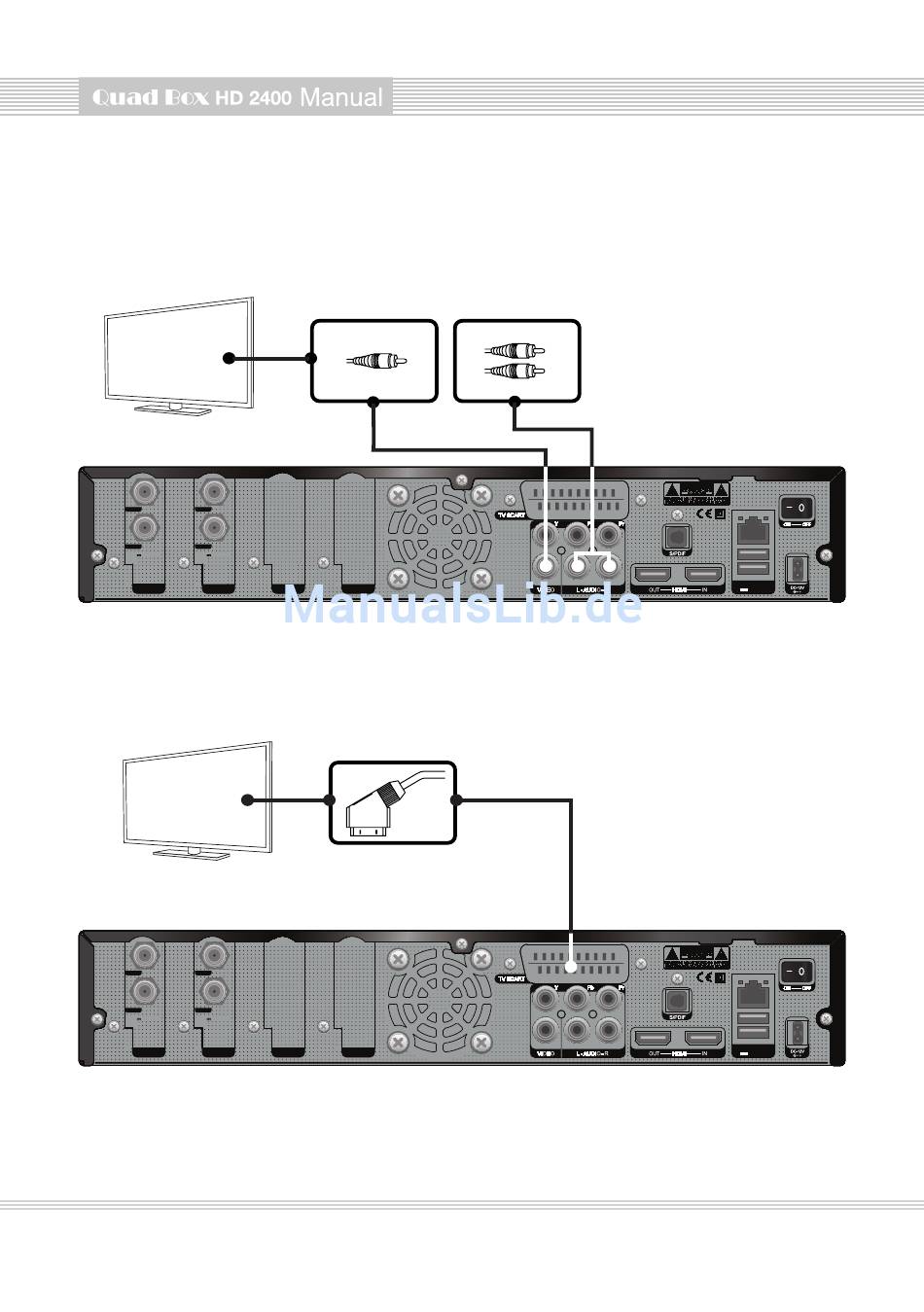

C. Connecting TV via RCA (Video) Cable
The receiver provides Composite video connection as well. Composite cable has normally three connectors
at the both end; one video (Yellow) and Audio (White/Red). Connect your TV to the receiver using SCART
cable as follows.
LNB IN LNB IN
Loop Out Loop Out
13/18V Max 400mA 13/18V Max 400mA
22KHz 22KHz
TUNER A TUNER B
D. Connecting TV via SCART cables
In case your TV is analogue TV, SCART cable is the most common method. Connect to your receiver
using SCART cable as follows.
LNB IN LNB IN
Loop Out Loop Out
13/18V Max 400mA 13/18V Max 400mA
22KHz 22KHz
TUNER A TUNER B
VIDEO
TUNER C TUNER D
TV
SCART
TUNER C TUNER D
AUDIO
USB2.0X2
5V 500mA Max
USB2.0X2
500mA Max
5V
17
