2. Connecting the TV (and VCR)

The receiver provides a variety of audio/video connection methods.

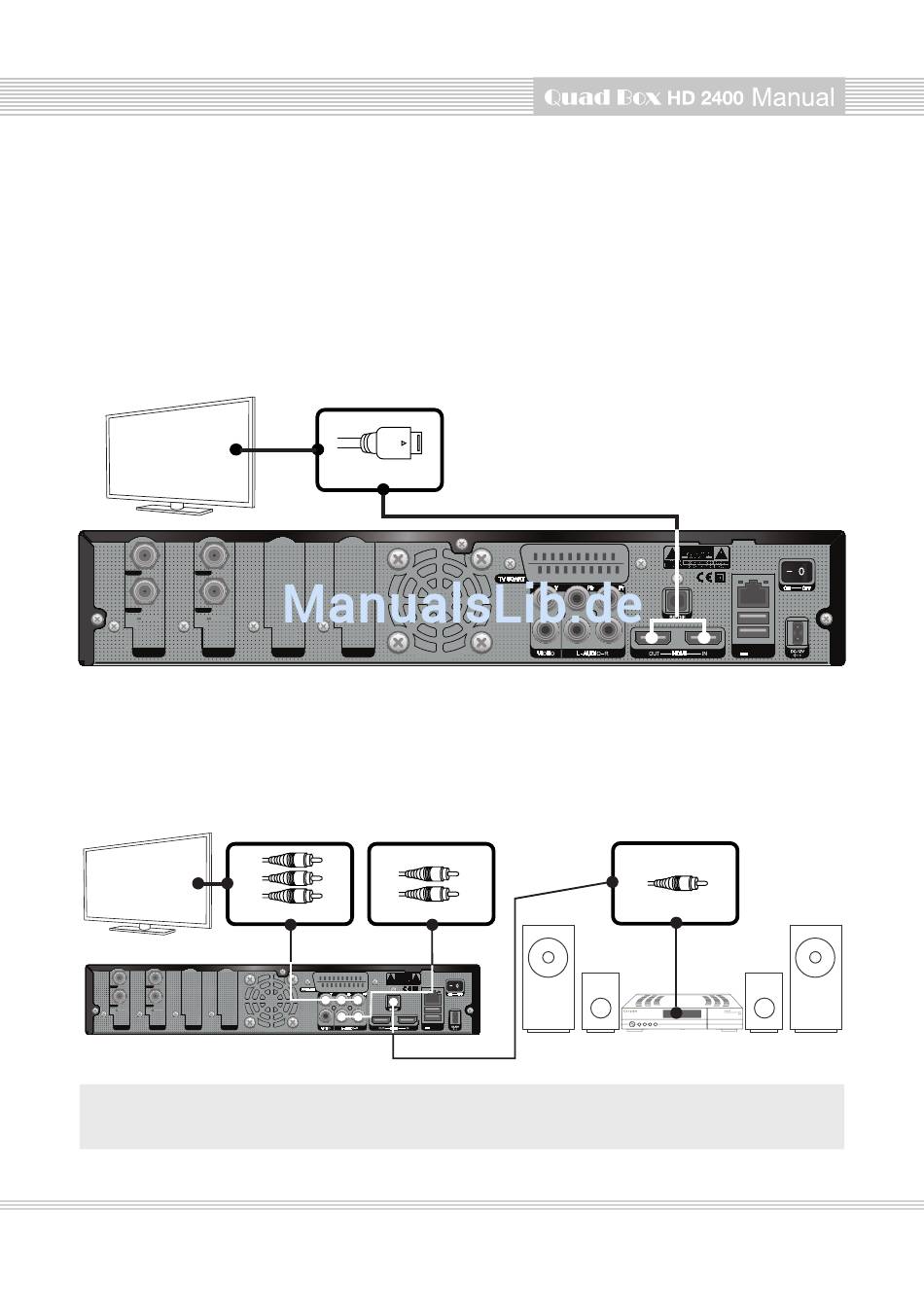

A. Connecting TV via HDMI cable
For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended.
Most HDTVs Have HDMI connectors to ensure the highest picture quality. In the rear panel of the
receiver. one HDMI connector is available for this purpose. Connect your TV to the receiver. using a
HDMI cable as follows.
LNB IN LNB IN
Loop Out Loop Out
13/18V Max 400mA 13/18V Max 400mA
22KHz 22KHz
TUNER A TUNER B
B. Connecting TV via Component Cable
The secondly recommend TV connection for digital TV is vi component cable (YPbPr). However, unlike
the HDMI connection which delivers audio and video signal at the same time, YPbPr connection
requires additional audio connection either via RCA cable (Stereo L/R) or S/PDIF as follows.
LNB IN LNB IN
Loop Out Loop Out
13/18V Max 400mA 13/18V Max 400mA
22KHz 22KHz
TUNER A TUNER B TUNER C TUNER D
NOTE: When you have an A/V receiver with S/PDIF digital audio input, this connection is recommended
to enjoy the best audio quality, especially for the Digital sound.
