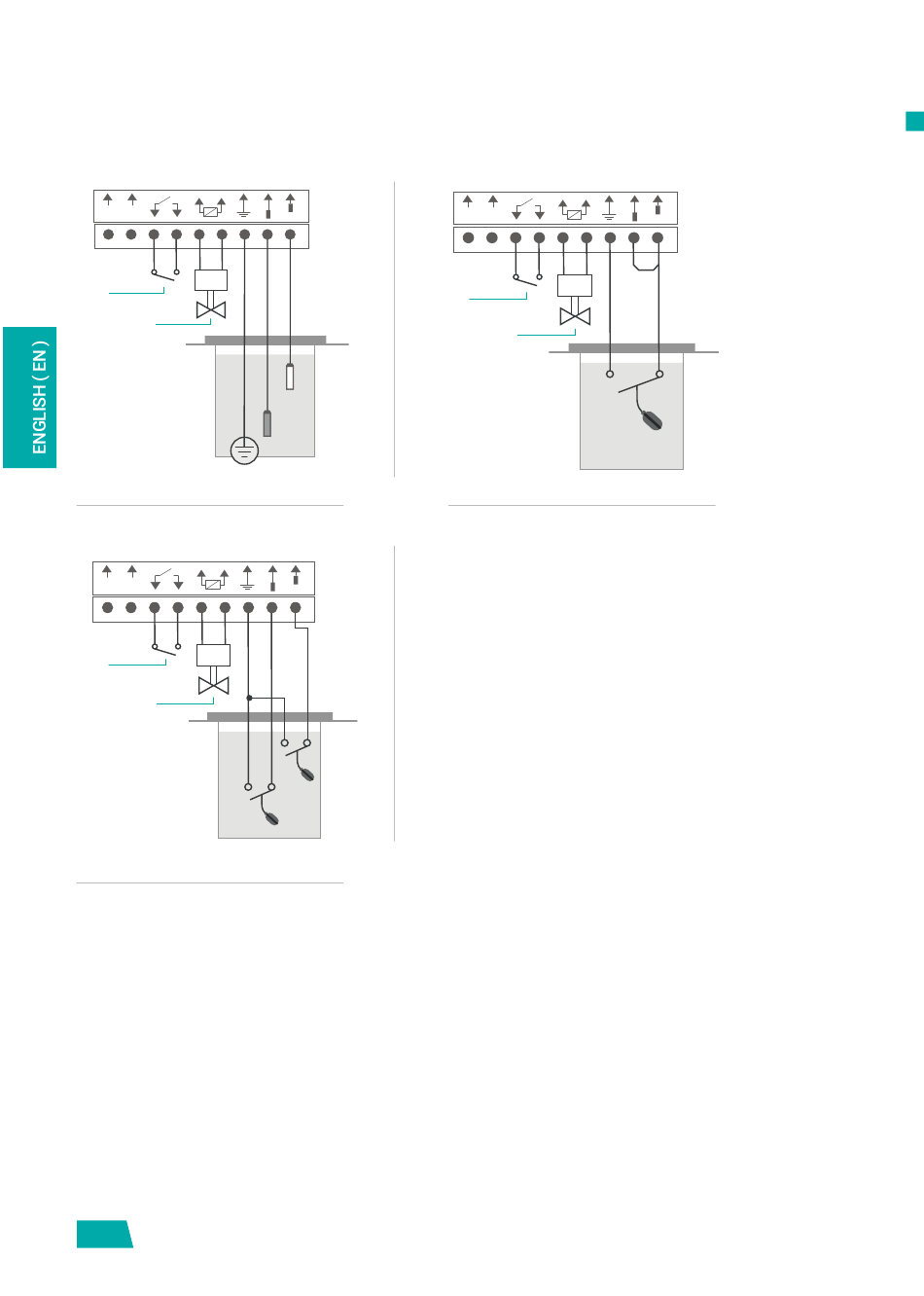

2 probes
24V
230V
24V
230V
1
1
2
2
2 floats
24V
230V
24V
230V
1
1
2
2
24V
230V
1.
Relay output contact
It is a voltage-free relay contact (5A / 250 VAC max) whose contact is connected to the
1
output of the filling solenoid valve. It is activated and deactivated at the same time as
the solenoid valve. It can be used to activate a filling signaling. It can also be used to
2
connect a single-phase filling pump, connecting it in series through the module power
supply and a contactor.
2.
Solenoid valve 24VAC
8
1 float
24V
230V
1
2
It is essential for the proper functioning of
24V
the level relay that the ground connection
230V
is correct. It is recommended to connect
to any point in the pipe or pump (screw,
flange, valve, etc.), to a pickaxe.
1
2
If the tank is made of insulating materials
It is recommended to place
submerged in the bottom.
The probe cables must be sufficiently
insulated,
since
contact would cause the equipment to
malfunction.
a probe
a
false
ground
