1. OPERATION
ECO-FILL is a fi lling control panel by level probes or fl oats and 24V solenoid valve control.
When the reservoir level drops below the minimum probe, the solenoid valve opens. The
solenoid valve remains open until the level reaches the maximum probe.
The solenoid valve closes only when the water level reaches the maximum probe.
There is always a delay to the opening and closing of the solenoid valve that can be set.

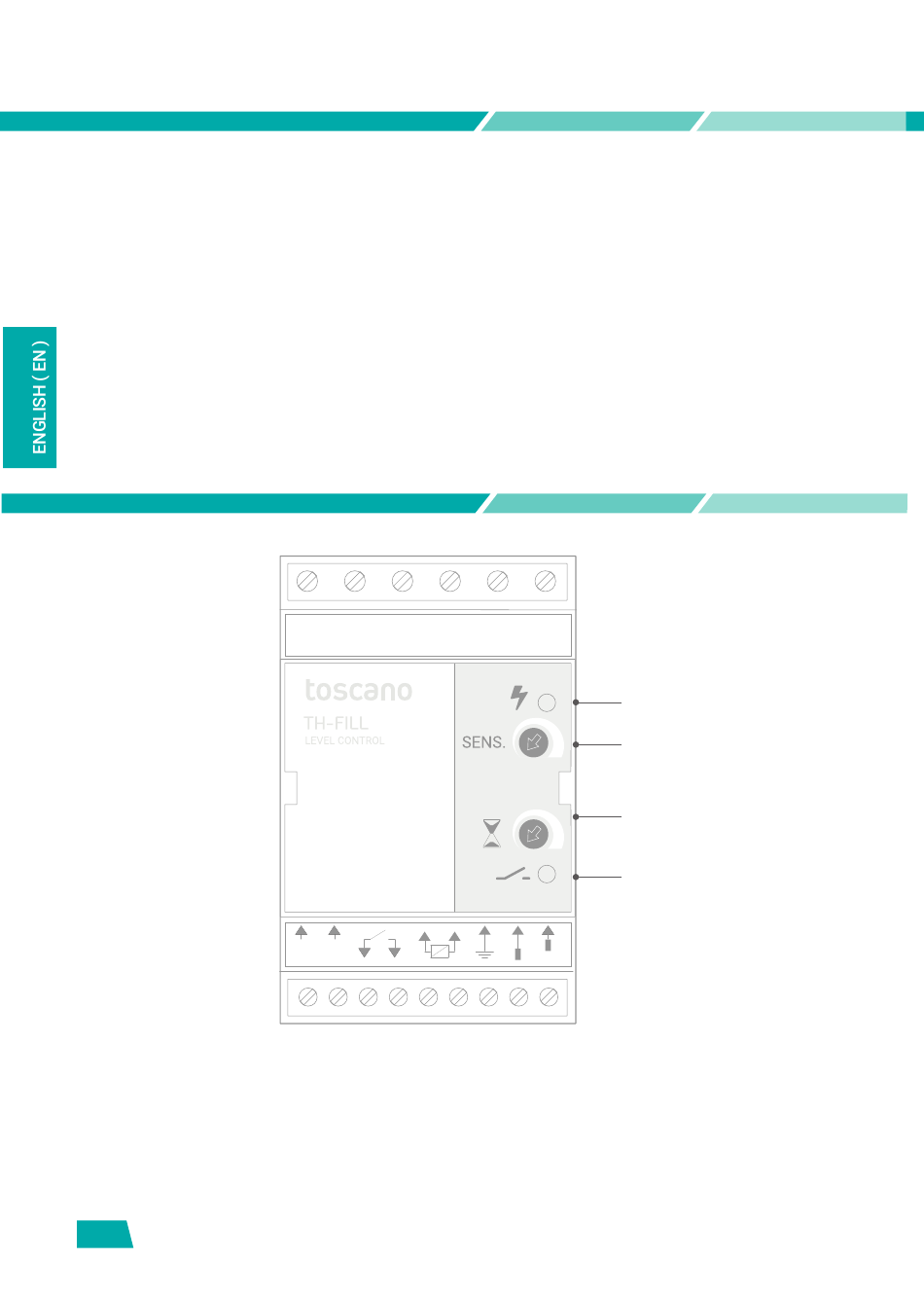

2. CONTROL MODULE
1. Voltage presence
2. Sensitivity setting
3. Setting of opening / closing delay of solenoid valve
4. Solenoid valve status
6
24V
230V
5 6 7
1 Presencia de tensión.
2
Ajuste de sensibilidad.
3
Ajuste de retardo
de apertura /cierre
de electroválvula.
4
Electroválvula activada.
