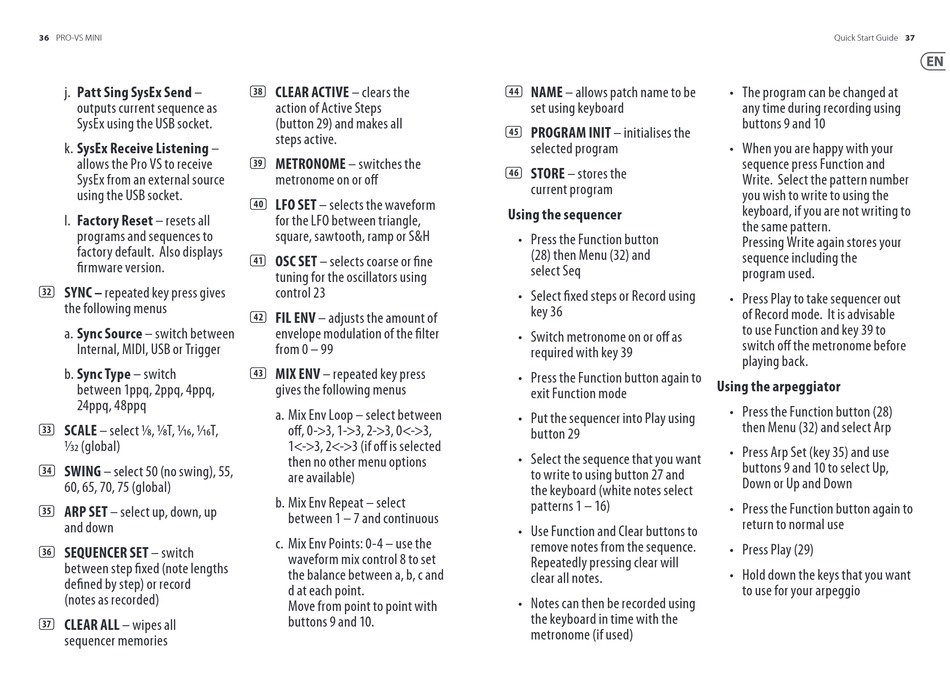

36
PRO-VS MINI
j. Patt Sing SysEx Send –
outputs current sequence as
SysEx using the USB socket.
k. SysEx Receive Listening –
allows the Pro VS to receive
SysEx from an external source
using the USB socket.
l. Factory Reset – resets all
programs and sequences to
factory default. Also displays
rmware version.
(32) SYNC – repeated key press gives
the following menus
a. Sync Source – switch between
Internal, MIDI, USB or Trigger
b. Sync Type – switch
between 1ppq, 2ppq, 4ppq,
24ppq, 48ppq
(33) SCALE – select , T, , T,
(global)
(34) SWING – select 50 (no swing), 55,
60, 65, 70, 75 (global)
(35) ARP SET – select up, down, up
and down
(36) SEQUENCER SET – switch
between step xed (note lengths
dened by step) or record
(notes as recorded)
(37) CLEAR ALL – wipes all
sequencer memories
(38) CLEAR ACTIVE – clears the
action of Active Steps
(button 29) and makes all
steps active.
(39) METRONOME – switches the
metronome on or o
(40) LFO SET – selects the waveform
for the LFO between triangle,
square, sawtooth, ramp or S&H
(41) OSC SET – selects coarse or ne
tuning for the oscillators using
control 23
(42) FIL ENV – adjusts the amount of
envelope modulation of the lter
from 0 – 99
(43) MIX ENV – repeated key press
gives the following menus
a. Mix Env Loop – select between
o, 0->3, 1->3, 2->3, 0<->3,
1<->3, 2<->3 (if o is selected
then no other menu options
are available)
b. Mix Env Repeat – select
between 1 – 7 and continuous
c. Mix Env Points: 0-4 – use the
waveform mix control 8 to set
the balance between a, b, c and
d at each point.
Move from point to point with
buttons 9 and 10.
(44) NAME – allows patch name to be
set using keyboard
(45) PROGRAM INIT – initialises the
selected program
(46) STORE – stores the
current program
Using the sequencer
• Press the Function button
(28) then Menu (32) and
select Seq
• Select xed steps or Record using
key 36
• Switch metronome on or o as
required with key 39
• Press the Function button again to
exit Function mode
• Put the sequencer into Play using
button 29
• Select the sequence that you want
to write to using button 27 and
the keyboard (white notes select
patterns 1 – 16)
• Use Function and Clear buttons to
remove notes from the sequence.
Repeatedly pressing clear will
clear all notes.
• Notes can then be recorded using
the keyboard in time with the
metronome (if used)
Quick Start Guide
• The program can be changed at
any time during recording using
buttons 9 and 10
• When you are happy with your
sequence press Function and
Write. Select the pattern number
you wish to write to using the
keyboard, if you are not writing to
the same pattern.
Pressing Write again stores your
sequence including the
program used.
• Press Play to take sequencer out
of Record mode. It is advisable
to use Function and key 39 to
switch o the metronome before
playing back.
Using the arpeggiator
• Press the Function button (28)
then Menu (32) and select Arp
• Press Arp Set (key 35) and use
buttons 9 and 10 to select Up,
Down or Up and Down
• Press the Function button again to
return to normal use
• Press Play (29)
• Hold down the keys that you want
to use for your arpeggio
37
