4 OPERATING INSTRUCTIONS

4.1 INSTRUMENT DESCRIPTION

4.1.1 Commands description

4.1.2 Alignment marks

Put the conductor within the jaws on intersection of the indicated marks as much as
possible (see Fig. 2) in order to meet the meter accuracy specifications

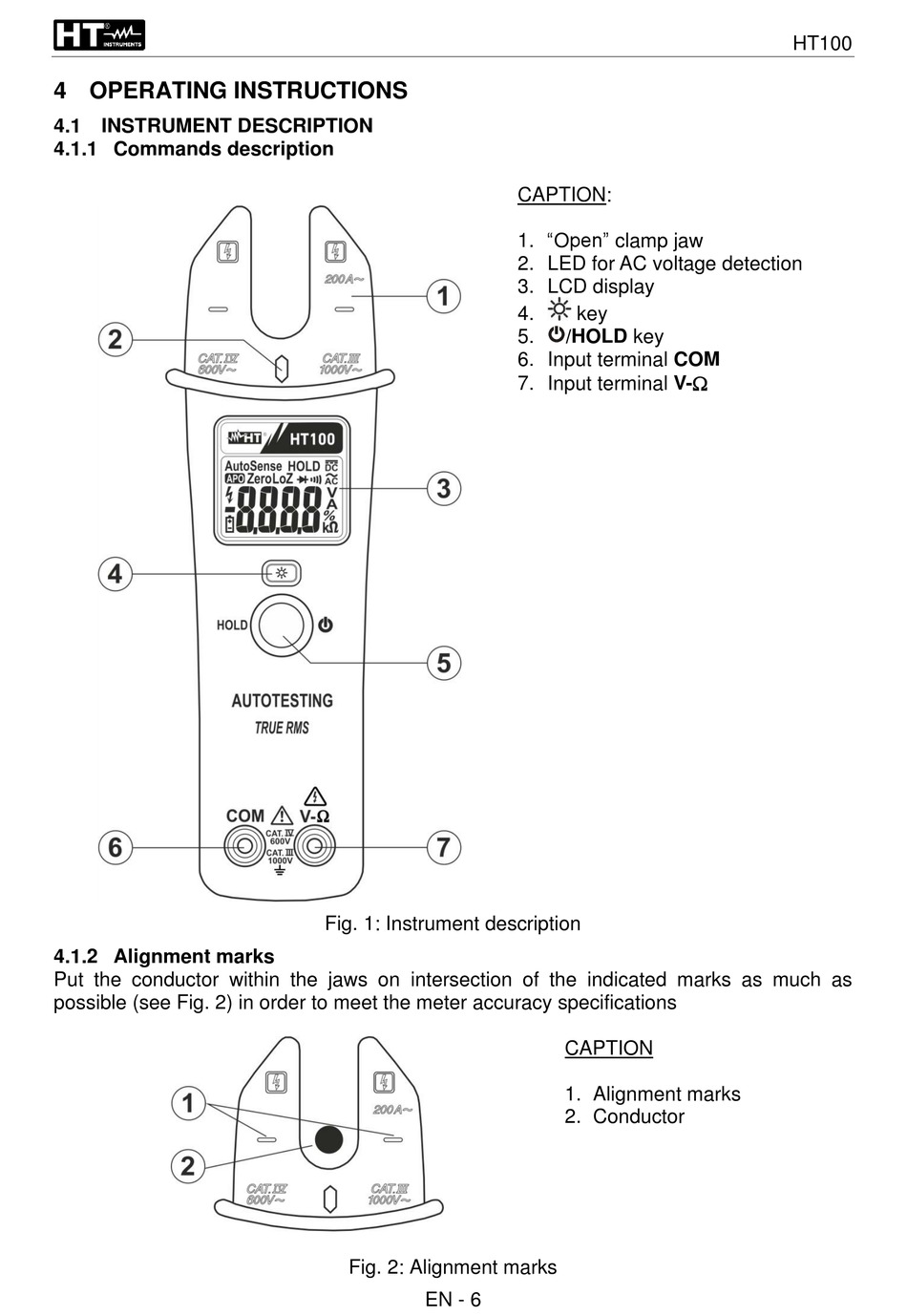

Fig. 1: Instrument description
Fig. 2: Alignment marks
EN - 6
CAPTION:
1. "Open" clamp jaw
2. LED for AC voltage detection
3. LCD display
4. key
5. /HOLD key
6. Input terminal COM
7. Input terminal V-
CAPTION
1. Alignment marks
2. Conductor
HT100
