Handle base
Reserved hole on the door
M5 hexagon screw (two)

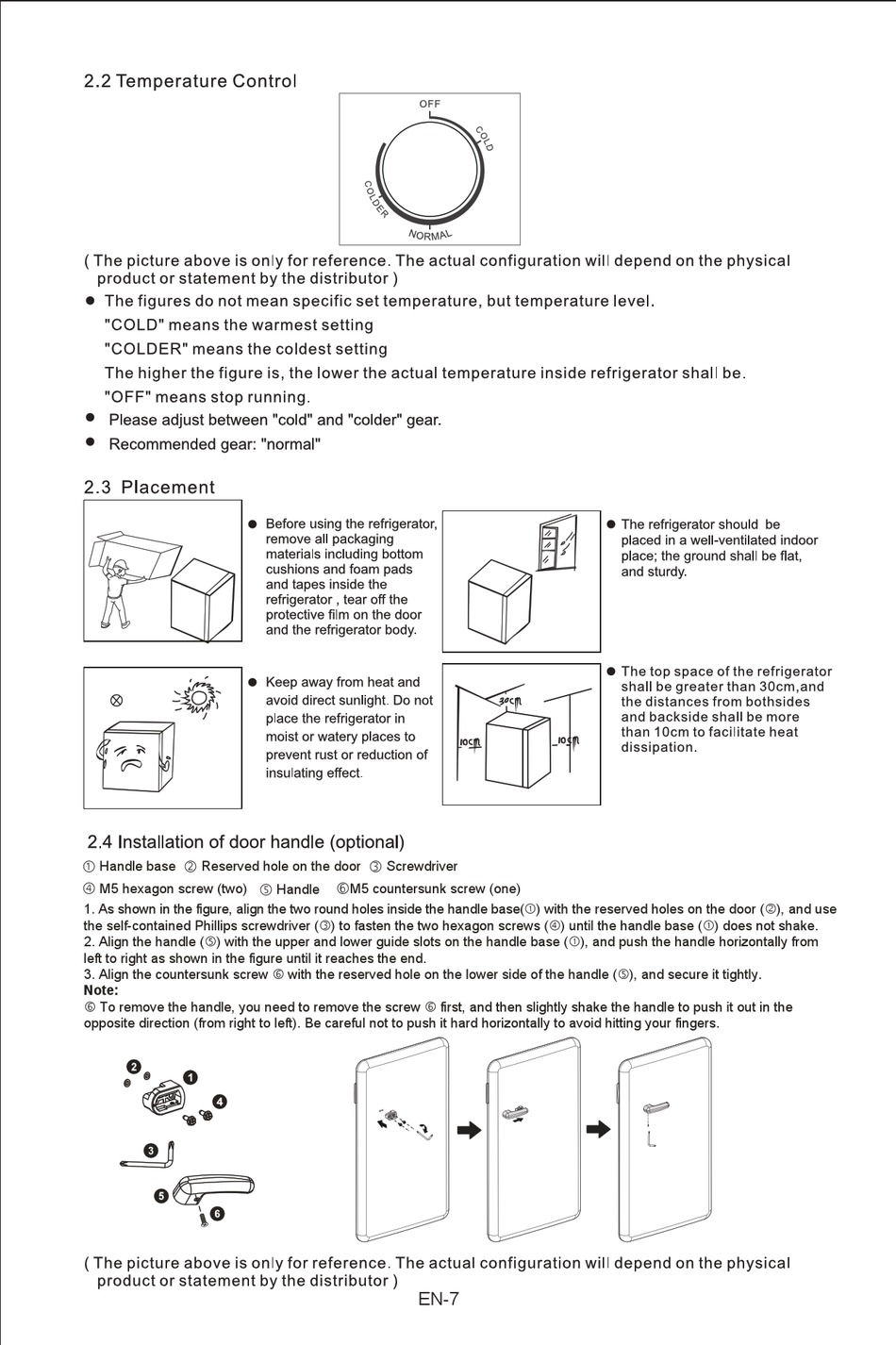

1. As shown in the figure, align the two round holes inside the handle base() with the reserved holes on the door (), and use
the self-contained Phillips screwdriver () to fasten the two hexagon screws () until the handle base () does not shake.
2. Align the handle () with the upper and lower guide slots on the handle base (), and push the handle horizontally from
left to right as shown in the figure until it reaches the end.
3. Align the countersunk screw with the reserved hole on the lower side of the handle (), and secure it tightly.
Note:
To remove the handle, you need to remove the screw first, and then slightly shake the handle to push it out in the
opposite direction (from right to left). Be careful not to push it hard horizontally to avoid hitting your fingers.
Screwdriver
M5 countersunk screw (one)
Handle
EN-7
