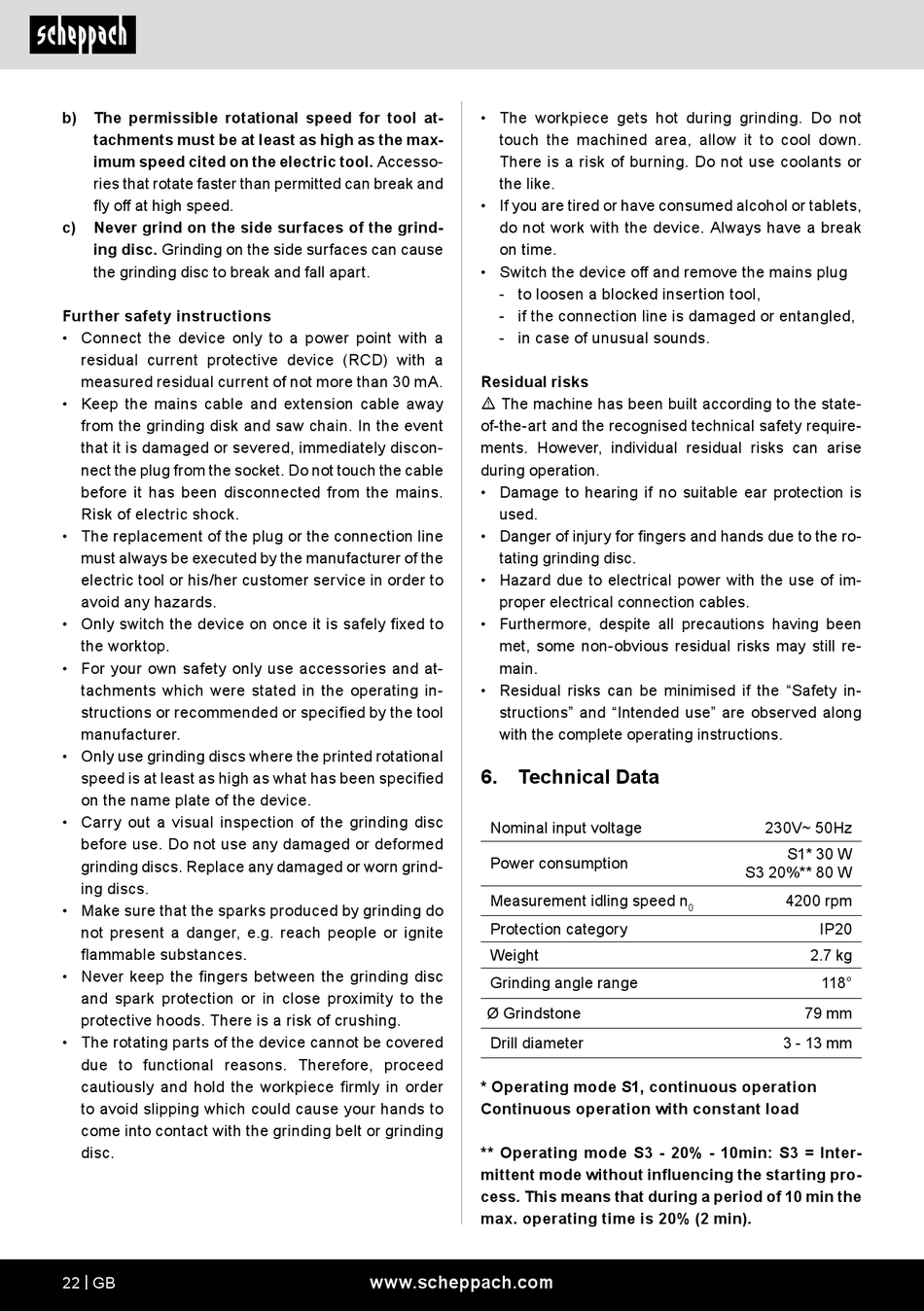

Scheppach DBS800 Originalbetriebsanleitung Seite 22

b) The permissible rotational speed for tool at-
tachments must be at least as high as the max-
imum speed cited on the electric tool. Accesso-
ries that rotate faster than permitted can break and
fly off at high speed.
c) Never grind on the side surfaces of the grind-
ing disc. Grinding on the side surfaces can cause
the grinding disc to break and fall apart.
Further safety instructions
• Connect the device only to a power point with a
residual current protective device (RCD) with a
measured residual current of not more than 30 mA.
• Keep the mains cable and extension cable away
from the grinding disk and saw chain. In the event
that it is damaged or severed, immediately discon-
nect the plug from the socket. Do not touch the cable
before it has been disconnected from the mains.
Risk of electric shock.
• The replacement of the plug or the connection line
must always be executed by the manufacturer of the
electric tool or his/her customer service in order to
avoid any hazards.
• Only switch the device on once it is safely fixed to
the worktop.
• For your own safety only use accessories and at-
tachments which were stated in the operating in-
structions or recommended or specified by the tool
manufacturer.
• Only use grinding discs where the printed rotational
speed is at least as high as what has been specified
on the name plate of the device.
• Carry out a visual inspection of the grinding disc
before use. Do not use any damaged or deformed
grinding discs. Replace any damaged or worn grind-
ing discs.
• Make sure that the sparks produced by grinding do
not present a danger, e.g. reach people or ignite
flammable substances.
• Never keep the fingers between the grinding disc
and spark protection or in close proximity to the
protective hoods. There is a risk of crushing.
• The rotating parts of the device cannot be covered
due to functional reasons. Therefore, proceed
cautiously and hold the workpiece firmly in order
to avoid slipping which could cause your hands to
come into contact with the grinding belt or grinding
disc.
22 | GB
• The workpiece gets hot during grinding. Do not
touch the machined area, allow it to cool down.
There is a risk of burning. Do not use coolants or
the like.
• If you are tired or have consumed alcohol or tablets,
do not work with the device. Always have a break
on time.
• Switch the device off and remove the mains plug
- to loosen a blocked insertion tool,
- if the connection line is damaged or entangled,
- in case of unusual sounds.
Residual risks
m The machine has been built according to the state-
of-the-art and the recognised technical safety require-
ments. However, individual residual risks can arise
during operation.
• Damage to hearing if no suitable ear protection is
used.
• Danger of injury for fingers and hands due to the ro-
tating grinding disc.
• Hazard due to electrical power with the use of im-
proper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety in-
structions" and "Intended use" are observed along
with the complete operating instructions.
6. Technical Data
Nominal input voltage
Power consumption
Measurement idling speed n
Protection category
Weight
Grinding angle range
Ø Grindstone
Drill diameter
* Operating mode S1, continuous operation
Continuous operation with constant load
** Operating mode S3 - 20% - 10min: S3 = Inter-
mittent mode without influencing the starting pro-
cess. This means that during a period of 10 min the
max. operating time is 20% (2 min).
www.scheppach.com
230V~ 50Hz
S1* 30 W
S3 20%** 80 W
4200 rpm
0
IP20
2.7 kg
118°
79 mm
3 - 13 mm
