FunctiHn and device Hverview
5 FunctiHn and device
Hverview
The Homematic IP Blind Actuator is
suitable for installation with a flush-
mounting or surface-mounting box
and offers individual control of con-
nected AC motors used with blinds,
shutters and awnings.
Thus, electrically operated window co-
verings are moved up and down auto-
matically and the slat position of blinds
can be adjusted precisely.
Blinds, shutters and awnings are
operated easily via an external push-
button, via remote control or the
Homematic IP app.

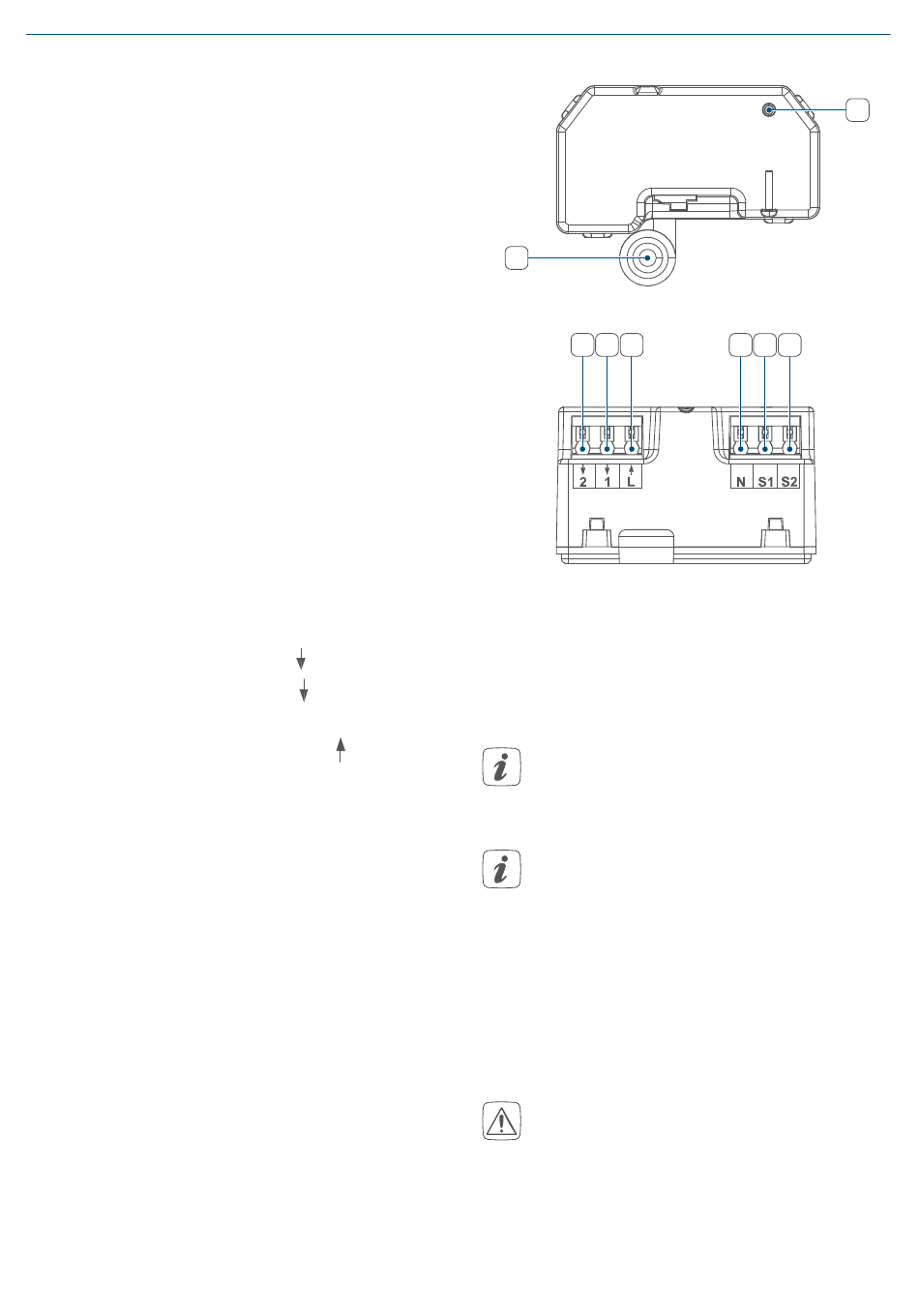

Device overview:
(A) System button (reset button and LED)
(B) Fixing lug
(C) Connecting terminal 2 (motor "up")
(D) Connecting terminal 1 (motor
"down")
(E) Connecting terminal for L (phase
conductor)
(F) Connecting terminal for N (neutral
conductor)
(G) Connecting terminal for S1 (push-
button input "down")
(H) Connecting terminal for S2 (push-
button input "up")
B
C D E
Figure 1
6
tart-um
6.1
Installation instructions
Please read this entire section
before starting to install the de-
vice.
Before installation, please note
the device number (SGTIN) la-
belled on the device as well as the
exact installation location in order
to make later allocation easier.
You can also find the device num-
ber on the QR code sticker sup-
plied.
Please note! Only to be installed
by persons with the relevant elec-
tro-technical knowledge and
experience!*
A
F G H
17
