Controls and indicators of S2t
CH1[PEAK] indicator
CH1[SOLIDSTATE] knob
CH2[PEAK] indicator
CH1[TUBE] knob
CH2[GAIN] knob
* Available only for
Hi-Z jack.
[DIRECT MONITOR] knob
Hi-Z jack
[MONO/STEREO] switch
FOOT SW jack
PHANTOM[ON/OFF] switch
INPUT SELECT[Hi-Z/MIC/LINE] switch
USB jack
LINE INPUT CH2/R jack
LINE INPUT CH1/L jack
AUX IN jack
OUT PUT R jack
OUT PUT L/MONO jack
MIC INPUT CH2/R jack
CH1 [TUBE] knob
monitored directly. Monitoring volume is
The Hi-Z jack input can be gained
adjustable with [DIRECT MONITOR] knob.
through a tube with CH1 [TUBE] knob.
CH1 [PEAK] indicator lights on when the
[PHONES] knob
signal is too large.
Headphone volume can be adjusted with
[PHONES] knob.
CH1 [SOLIDSTATE] knob
The input signals from Hi-Z and MIC
[OUTPUT] knob
INPUT CH1/L jacks can be gained with
Output volume of the output jacks can be
CH1 [SOLIDSTATE] knob. CH1 [PEAK]
adjusted with [OUTPUT] knob.
indicator lights on when the signal is too
large. With these knobs, you can mix the
INPUT SELECT [Hi-Z/MIC/LINE] switch
tube gained sound and the transistor
This switches the available input jacks.
gained sound for the guitar/bass inputs.
When the Hi-Z jack is on use, switch this to
"Hi-Z". As well, "MIC" is for MIC INPUT
CH2 [GAIN] knob
jacks, and "LINE" is for line input jacks.
The MIC INPUT CH2/R jack input can be
gained with CH2 [GAIN] knob. CH2
[MONO/STEREO] switch
[PEAK] indicator lights on when the
This switches the direct monitor sound
signal is too large.
between monaural and stereo.
[DIRECT MONITOR] knob
PHANTOM [ON/OFF] switch
The input sounds to Hi-Z, MIC INPUT
To supply the phantom power to a
and other jacks can be sent to OUTPUT
condenser microphone, turn on the
L(MONO)/R and PHONES jacks to get
PHANTOM [ON/OFF] switch.
Connections and Functions
PHONES jack
1
Guitar/Bass
[OUTPUT] knob
[PHONES] knob
Foot Switch(ZOOM FS-01)
3
CONTROL IN jack
5
Computer
8
MTR
MIC INPUT CH1/L jack
USB Audio Interface S2t / USB Audio Interface C5.1t : hardware specifications
G Number of Audio Record/
Playback Channels
G Audio Sampling
G Frequency Response
G USB
G Inputs
•Hi-z Input
•MIC Input
•LINE INPUT
•AUX Input
4
Expression Pedal
(ZOOM FP-01/02)
6
Monitor System
(Audio component/Amplified speaker)
7
Dynamic microphone and
condenser microphone
9
Rhythm machine
Record: 1 pair of stereo
G Phantom powersupply
Playback: 1 pair of stereo
G Outputs
24bit 48kHz/44.1kHz
•Line Output
48 kHz: 20 Hz to 22 kHz (+0 dB/-1 dB)
44.1 kHz: 20 Hz to 20 kHz (+0 dB/-0.5 dB)
TypeB USB 1.1 Full Speed
•Headphone
Standard mono phone jack
G Residual Noise Level
Input impedance: 470 kiloohm
Input level: -17dBm to +4dBm
XLR/standard phone combo jack x2
(pin 2:HOT, Tip:HOT, Ring:COLD, Sleeve:GND)
G Control input (S2t only)
(Balanced and Unbalanced operation)
•FOOT SW
Input impedance: 1 kiloohm or more
•CONTROL IN
Input level: -38dBm to +1dBm
G Tube circuitry
Standard mono phone jack(L/R)
G Power requirements
Input impedance: 47 kiloohm
G Current Draw
Rated input level: -10dBm
G Dimensions
Mini phone jack (stereo)
•USB Audio Interface S2t
Input impedance: 15 kiloohm
•USB Audio Interface C5.1t
Rated input level: -10dBm

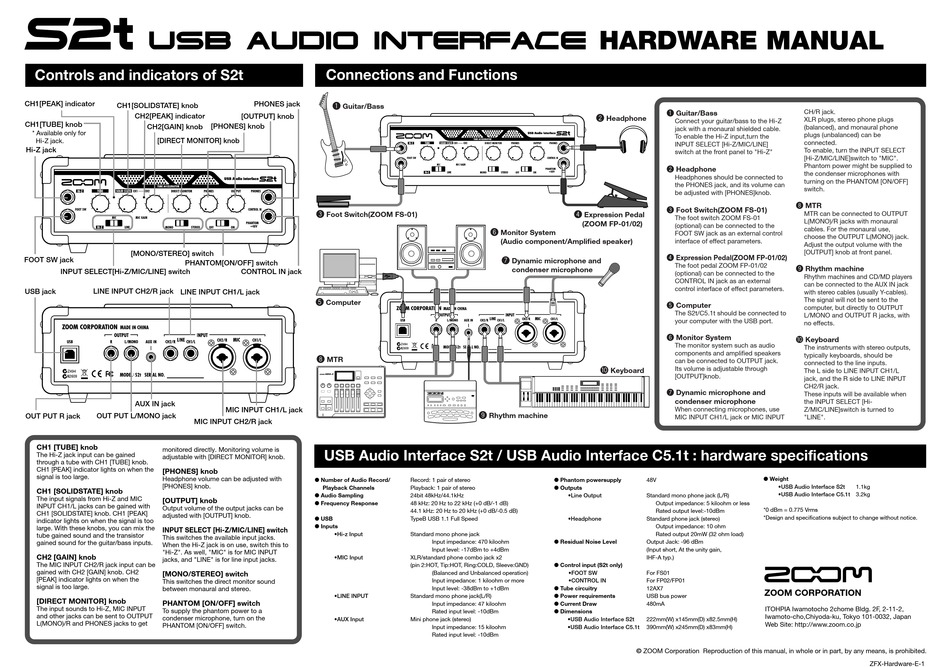

HARDWARE MANUAL
1 Guitar/Bass
2
Headphone
Connect your guitar/bass to the Hi-Z
jack with a monaural shielded cable.
To enable the Hi-Z input,turn the
INPUT SELECT [Hi-Z/MIC/LINE]
switch at the front panel to "Hi-Z"
2 Headphone
Headphones should be connected to
the PHONES jack, and its volume can
be adjusted with [PHONES]knob.
3 Foot Switch(ZOOM FS-01)
The foot switch ZOOM FS-01
(optional) can be connected to the
FOOT SW jack as an external control
interface of effect parameters.
4 Expression Pedal(ZOOM FP-01/02)
The foot pedal ZOOM FP-01/02
(optional) can be connected to the
CONTROL IN jack as an external
control interface of effect parameters.
5 Computer
The S2t/C5.1t should be connected to
your computer with the USB port.
6 Monitor System
The monitor system such as audio
components and amplified speakers
can be connected to OUTPUT jack.
Its volume is adjustable through
0
Keyboard
[OUTPUT]knob.
7 Dynamic microphone and
condenser microphone
When connecting microphones, use
MIC INPUT CH1/L jack or MIC INPUT
G Weight
48V
Standard mono phone jack (L/R)
Output impedance: 5 kiloohm or less
*0 dBm = 0.775 Vrms
Rated output level:-10dBm
*Design and specifications subject to change without notice.
Standard phone jack (stereo)
Output impedance: 10 ohm
Rated output 20mW (32 ohm load)
Output Jack: -96 dBm
(Input short, At the unity gain,
IHF-A typ.)
For FS01
For FP02/FP01
12AX7
ZOOM CORPORATION
USB bus power
480mA
ITOHPIA Iwamotocho 2chome Bldg. 2F, 2-11-2,
Iwamoto-cho,Chiyoda-ku, Tokyo 101-0032, Japan
222mm(W) x145mm(D) x82.5mm(H)
Web Site: http://www.zoom.co.jp
390mm(W) x245mm(D) x83mm(H)
© ZOOM Corporation Reproduction of this manual, in whole or in part, by any means, is prohibited.
CH/R jack.
XLR plugs, stereo phone plugs
(balanced), and monaural phone
plugs (unbalanced) can be
connected.
To enable, turn the INPUT SELECT
[Hi-Z/MIC/LINE]switch to "MIC".
Phantom power might be supplied to
the condenser microphones with
turning on the PHANTOM [ON/OFF]
switch.
8 MTR
MTR can be connected to OUTPUT
L(MONO)/R jacks with monaural
cables. For the monaural use,
choose the OUTPUT L(MONO) jack.
Adjust the output volume with the
[OUTPUT] knob at front panel.
9 Rhythm machine
Rhythm machines and CD/MD players
can be connected to the AUX IN jack
with stereo cables (usually Y-cables).
The signal will not be sent to the
computer, but directly to OUTPUT
L/MONO and OUTPUT R jacks, with
no effects.
0 Keyboard
The instruments with stereo outputs,
typically keyboards, should be
connected to the line inputs.
The L side to LINE INPUT CH1/L
jack, and the R side to LINE INPUT
CH2/R jack.
These inputs will be available when
the INPUT SELECT [Hi-
Z/MIC/LINE]switch is turned to
"LINE".
•USB Audio Interface S2t
1.1kg
•USB Audio Interface C5.1t 3.2kg
ZFX-Hardware-E-1
