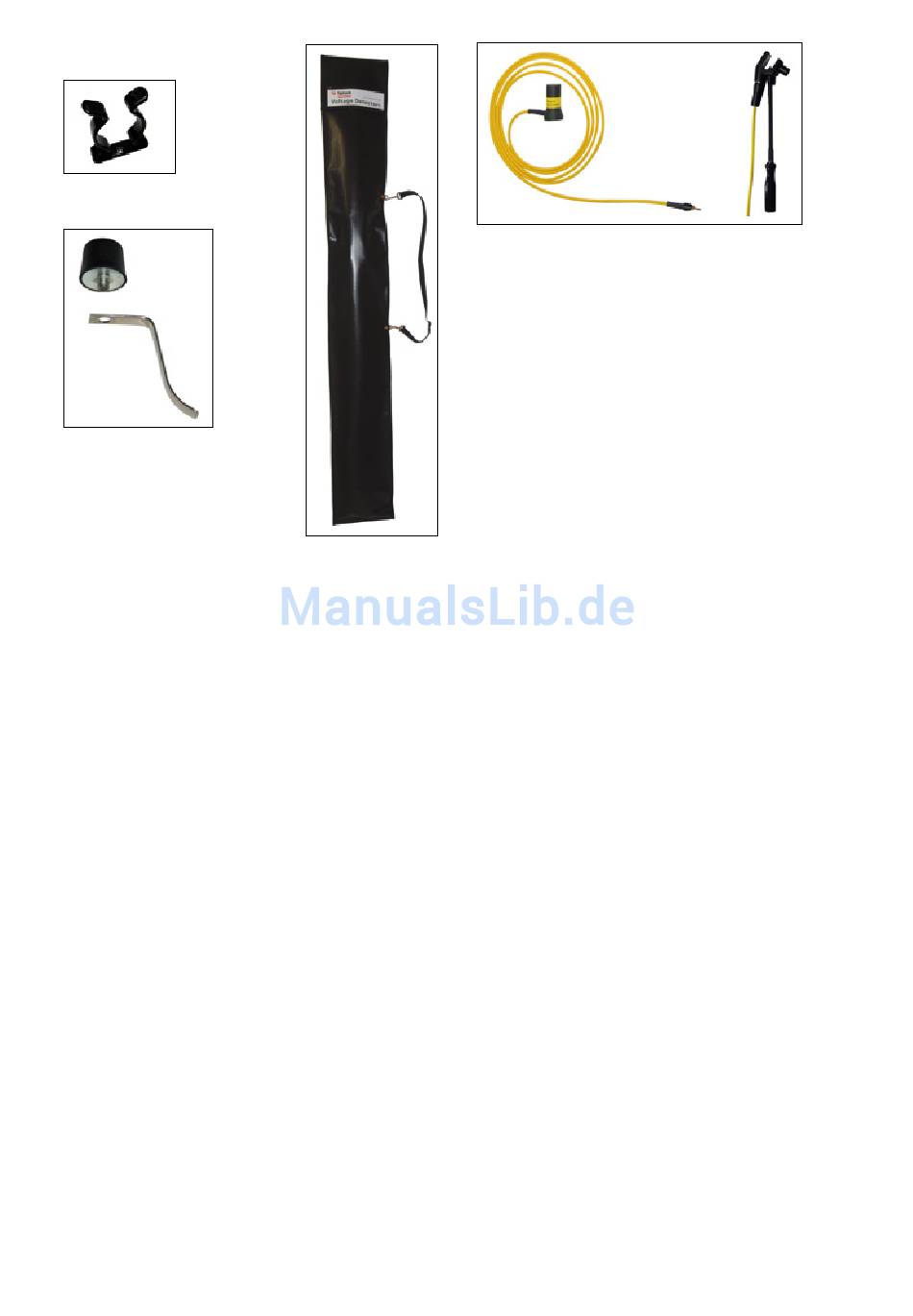

10. Accessories
Spring clip for wall holder
Test electrode TT3 and
rubber bumper
11. Technical data
Nominal voltage range:
Frequency:
Input resistance:
Measurement current:
Display:
Limit U t:
On-time:
Self-test:
Surge voltage strength:
Construction:
Indicator group:
Operating temperature:
Power supply:
Protection category:
Design:
Standards
Dimensions / weight
50 ... 3000 V AC/DC
0 ... 500 Hz
1672 kΩ, therefrom 1540 kΩ in the moulded resistance cartridge
beneath the test electrode
1.8 mA at 3000 V AC/DC
red LED for voltage > Limit U t
green LED for standby / absent of voltage
two-line LCD with backlight green / red for indication of voltage,
frequency, type of voltage, and battery condition
acoustic signal at > Limit U t
max. interference voltage. The value of U t is labelled on the name plate.
15 minutes
function, protective resistors and ground contact
>100 kV (test report available)
for indoor and outdoor installations
I and III
–15°C ... + 55°
6 x AA 1,5 V - IEC LR6 alkali-manganese or FR6 Lithium battery
IP 65, device can be used in moist environments
• two-pole voltage tester with fixed connection to ground
• 4-part GRP-telescopic tube with integrated PUR spiral line
• moulded resistor decade approx. 1540 kΩ
• display part made of impact-proof, dust proof
plastic casing IP 65 with unbreakable display cover
• 1.8 m line PUR with contact terminal or contact
magnet for grounding at rails
Display/function and test engineering in accordance with EN/IEC 61243-2
Extension and telescopic tube in accordance with EN/IEC 61010-1
Surge voltage strength in accordance with EN/IEC 60071
1740 x 120 x 110 mm
run-out length up to 5.2 m
device incl. line and magnet 2.3 kg
18
Replacement line with magnet or clamp.
Bag with ring bolt and shoulder belt
