• Mark the correct position of the holes and fix the mounting bracket using the screws with
metal anchors or screws and washers suitable for the type of ceiling chosen.
• Verify proper installation of the bracket before hanging the fan. The mounting bracket
must support the entire weight of the fan.

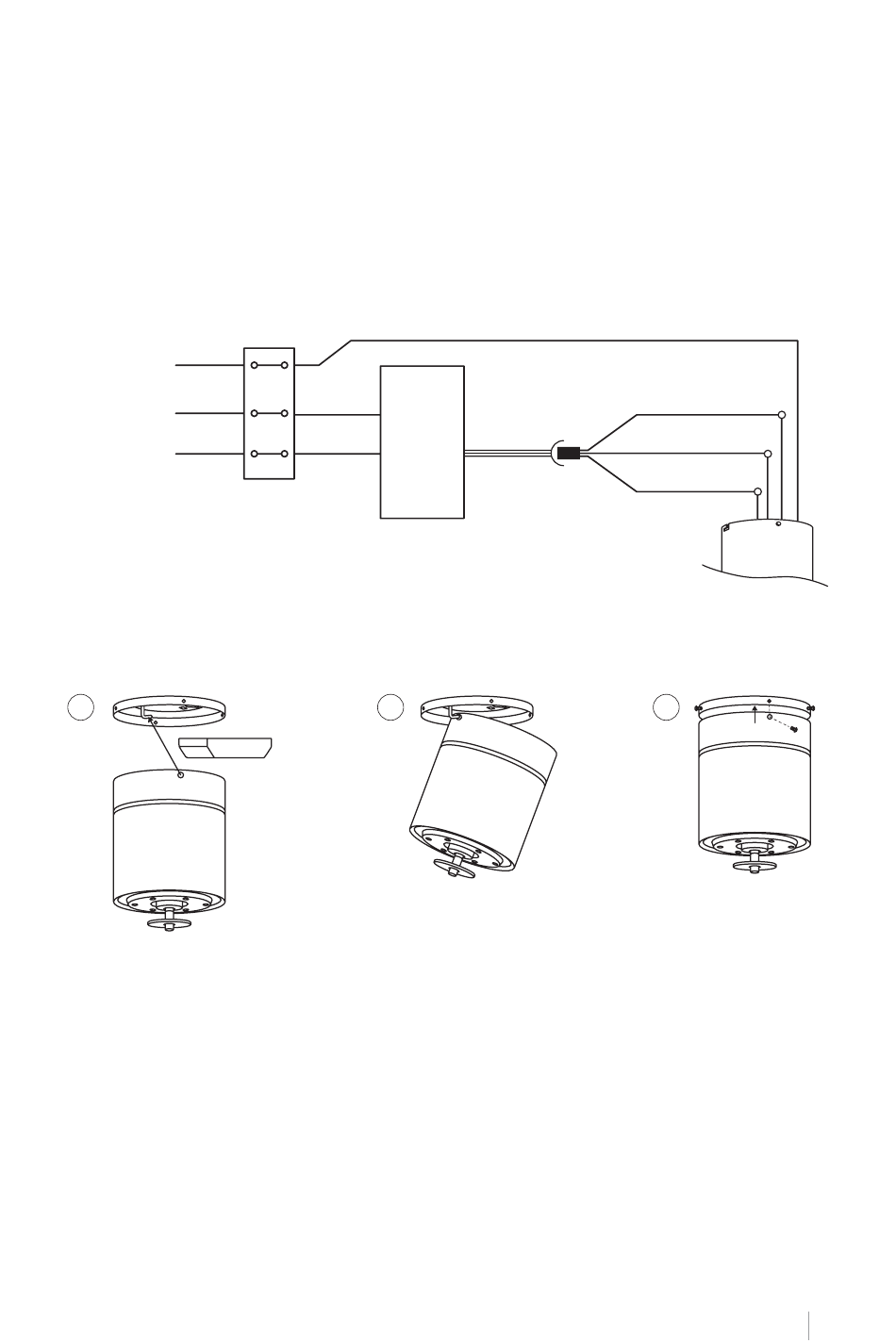

W IRING CON N ECTI ON
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Take ground
L
N
RECE IVE R PL ACE ME NT
1
1. Insert the driver inside the motor body.
2. Hook the engine body onto the left hook of the body mount and route the wiring so it does
not get pinched.
3. Position the motor body so that the holes fit and then screw the 4 body bracket screws to
the motor body.
Note: Make sure that the motor body is perfectly installed to the ceiling.
L input (black)
Remote
control
receiver
Input N
(white)
2
Ground (green/yellow)
DC L motor (gray)
DC L motor (pink)
DC L motor (red)
3
