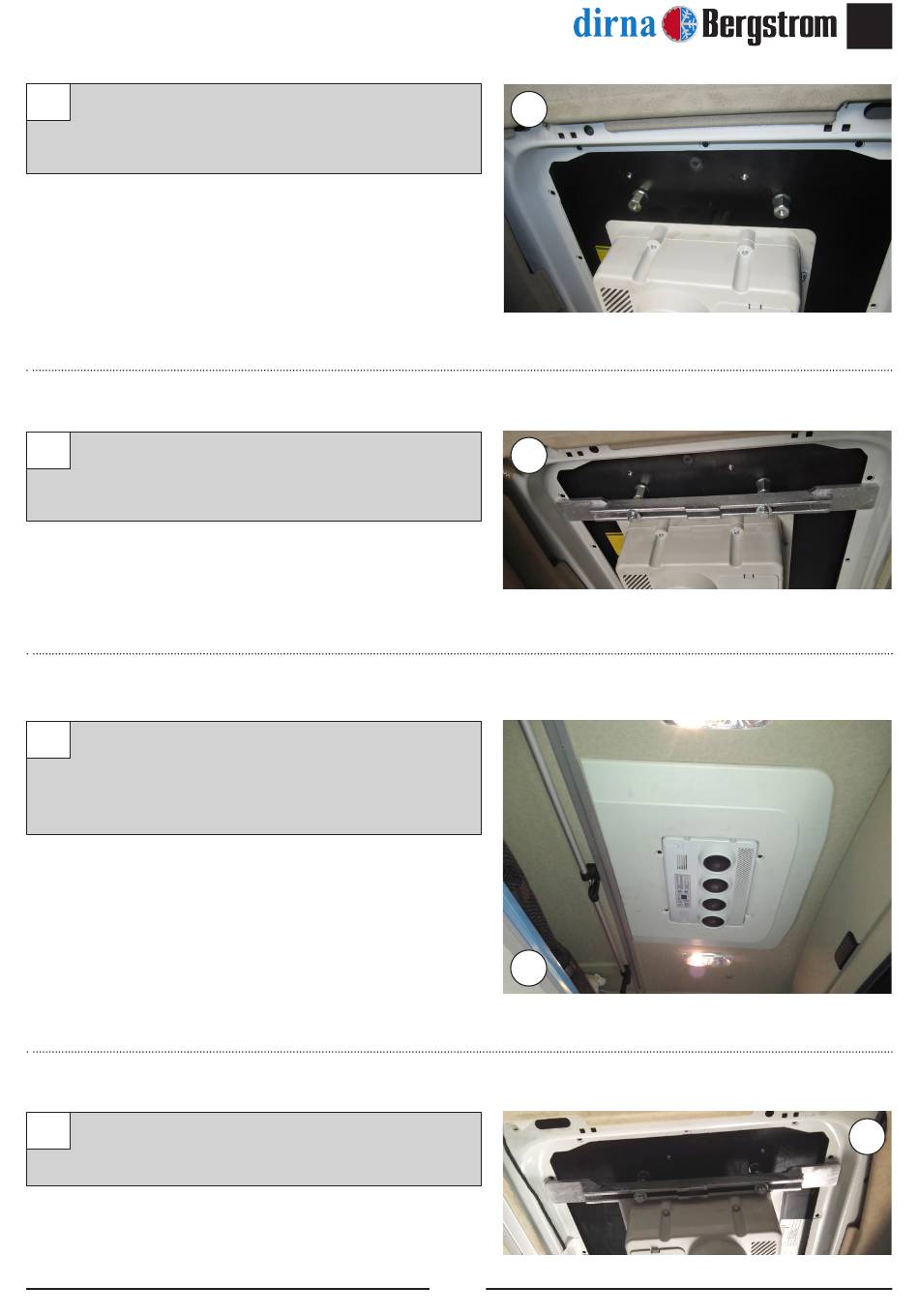

Screw (4) L=26 hexagons in the inserts in the base
of the unit with a rubber washer and a flat washer,
and tighten with a torque of 12.7±10% Nm.
9 Position fastening brackets with (4) 8/125x45
screws with flat washer and grower washer,
without tightening.
10 Position the console and align the unit using the
curtain rail as a reference (the console must come
up against the rail). Once aligned, remove the
console.
11 Secure the fastening brackets by tightening the
M8/125x45 screws.
