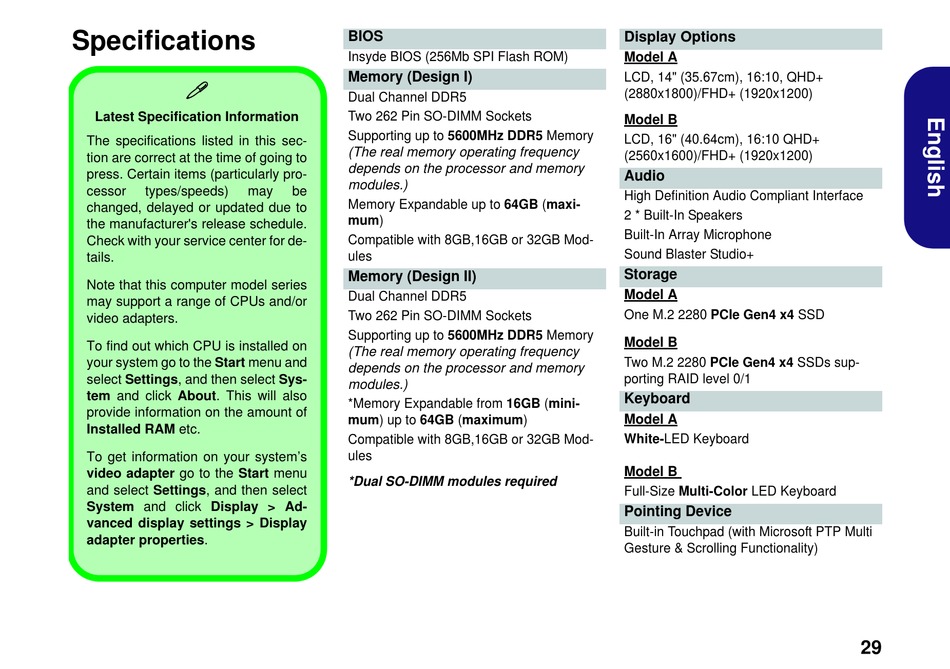

Specifications


Latest Specification Information
The specifications listed in this sec-
tion are correct at the time of going to
press. Certain items (particularly pro-
cessor types/speeds) may
changed, delayed or updated due to
the manufacturer's release schedule.
Check with your service center for de-
tails.
Note that this computer model series
may support a range of CPUs and/or
video adapters.
To find out which CPU is installed on
your system go to the Start menu and
select Settings, and then select Sys-
tem and click About. This will also
provide information on the amount of
Installed RAM etc.
To get information on your system's
video adapter go to the Start menu
and select Settings, and then select
System and click Display > Ad-
vanced display settings > Display
adapter properties.
BIOS
Insyde BIOS (256Mb SPI Flash ROM)
Memory (Design I)
Dual Channel DDR5
Two 262 Pin SO-DIMM Sockets
Supporting up to 5600MHz DDR5 Memory
(The real memory operating frequency
depends on the processor and memory
modules.)
be
Memory Expandable up to 64GB (maxi-
mum)
Compatible with 8GB,16GB or 32GB Mod-
ules
Memory (Design II)
Dual Channel DDR5
Two 262 Pin SO-DIMM Sockets
Supporting up to 5600MHz DDR5 Memory
(The real memory operating frequency
depends on the processor and memory
modules.)
*Memory Expandable from 16GB (mini-
mum) up to 64GB (maximum)
Compatible with 8GB,16GB or 32GB Mod-
ules
*Dual SO-DIMM modules required
Display Options
Model A
LCD, 14" (35.67cm), 16:10, QHD+
(2880x1800)/FHD+ (1920x1200)
Model B
LCD, 16" (40.64cm), 16:10 QHD+
(2560x1600)/FHD+ (1920x1200)
Audio
High Definition Audio Compliant Interface
2 * Built-In Speakers
Built-In Array Microphone
Sound Blaster Studio+
Storage
Model A
One M.2 2280 PCIe Gen4 x4 SSD
Model B
Two M.2 2280 PCIe Gen4 x4 SSDs sup-
porting RAID level 0/1
Keyboard
Model A
White-LED Keyboard
Model B
Full-Size Multi-Color LED Keyboard
Pointing Device
Built-in Touchpad (with Microsoft PTP Multi
Gesture & Scrolling Functionality)
29
