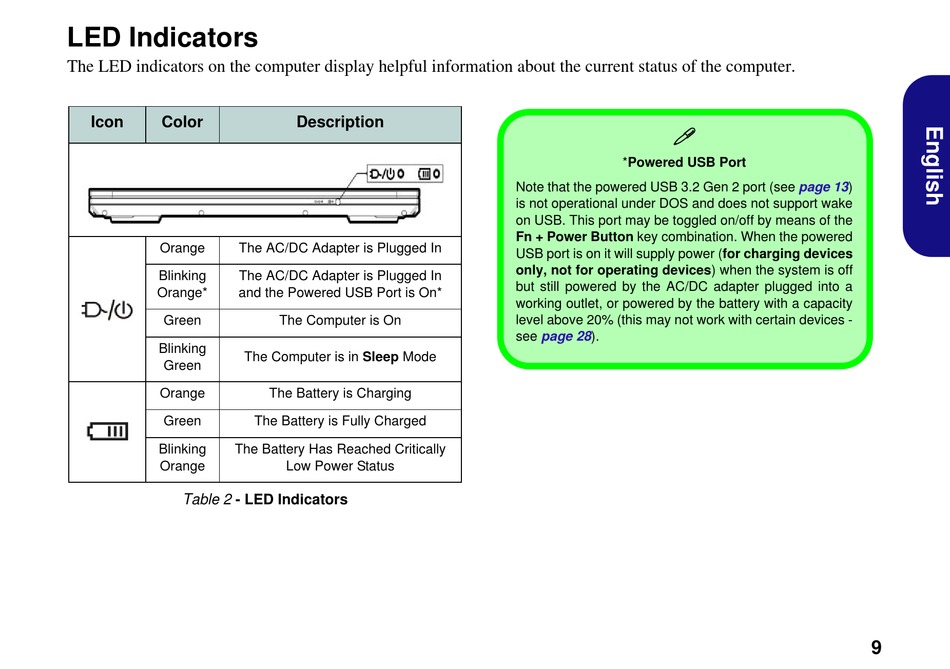

LED Indicators

The LED indicators on the computer display helpful information about the current status of the computer.
Icon Color
Orange The AC/DC Adapter is Plugged In
Blinking The AC/DC Adapter is Plugged In
Orange* and the Powered USB Port is On*
Green
Blinking
The Computer is in Sleep Mode
Green
Orange
Green
Blinking The Battery Has Reached Critically
Orange
Table 2 - LED Indicators
Description
The Computer is On
The Battery is Charging
The Battery is Fully Charged
Low Power Status

*Powered USB Port
Note that the powered USB 3.2 Gen 2 port (see
is not operational under DOS and does not support wake
on USB. This port may be toggled on/off by means of the
Fn + Power Button key combination. When the powered
USB port is on it will supply power (for charging devices
only, not for operating devices) when the system is off
but still powered by the AC/DC adapter plugged into a
working outlet, or powered by the battery with a capacity
level above 20% (this may not work with certain devices -
see page 28).
page 13)
