Front, Left & Right Views
System Map:
2

Overheating
To prevent your com-
puter from overheat-
ing make sure
nothing blocks any
vent while the com-
puter is in use.
Front
4
3
7
Right

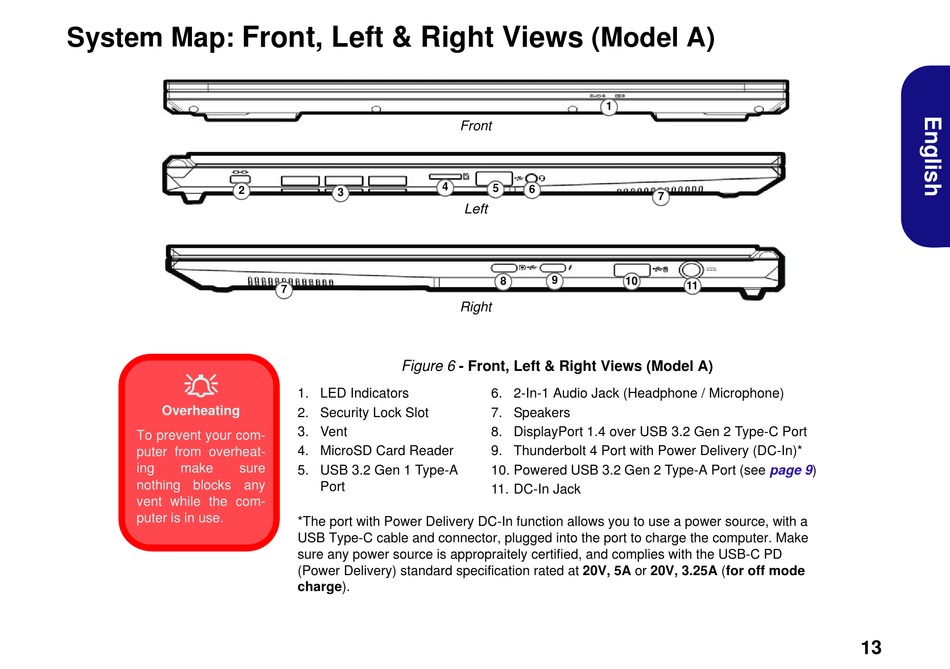

Figure 6 - Front, Left & Right Views (Model A)
1. LED Indicators
2. Security Lock Slot
3. Vent
4. MicroSD Card Reader
5. USB 3.2 Gen 1 Type-A
Port
*The port with Power Delivery DC-In function allows you to use a power source, with a
USB Type-C cable and connector, plugged into the port to charge the computer. Make
sure any power source is appropraitely certified, and complies with the USB-C PD
(Power Delivery) standard specification rated at 20V, 5A or 20V, 3.25A (for off mode
charge) .
(Model A)
1
5
6
Left
8 9
10
6. 2-In-1 Audio Jack (Headphone / Microphone)
7. Speakers
8. DisplayPort 1.4 over USB 3.2 Gen 2 Type-C Port
9. Thunderbolt 4 Port with Power Delivery (DC-In)*
10. Powered USB 3.2 Gen 2 Type-A Port (see
11. DC-In Jack
7
11
page 9)
13
