System Map: Bottom & Rear Views
2
3 4
Model A

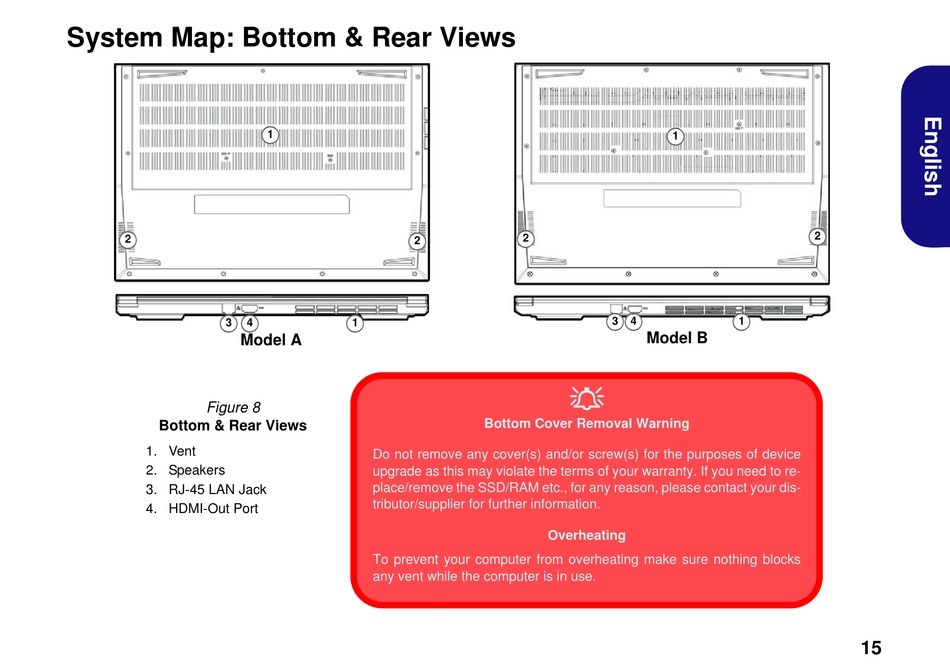

Figure 8
Bottom & Rear Views
1. Vent
2. Speakers
3. RJ-45 LAN Jack
4. HDMI-Out Port
1
2
1
Do not remove any cover(s) and/or screw(s) for the purposes of device
upgrade as this may violate the terms of your warranty. If you need to re-
place/remove the SSD/RAM etc., for any reason, please contact your dis-
tributor/supplier for further information.
To prevent your computer from overheating make sure nothing blocks
any vent while the computer is in use.
