Front, Left & Right Views
System Map:
2
1. LED Indicators
2. Security Lock Slot
3. MicroSD Card Reader
4. USB 3.2 Gen 1 Type-A Port
5. 2-In-1 Audio Jack (Headphone /
Microphone)
*The port with Power Delivery DC-In function allows you to use a power source, with a USB Type-C
cable and connector, plugged into the port to charge the computer. Make sure any power source is
appropraitely certified, and complies with the USB-C PD (Power Delivery) standard specification rated
at 20V, 5A or 20V, 3.25A (for off mode charge) .
14
Front
3
4
Left
6
Right

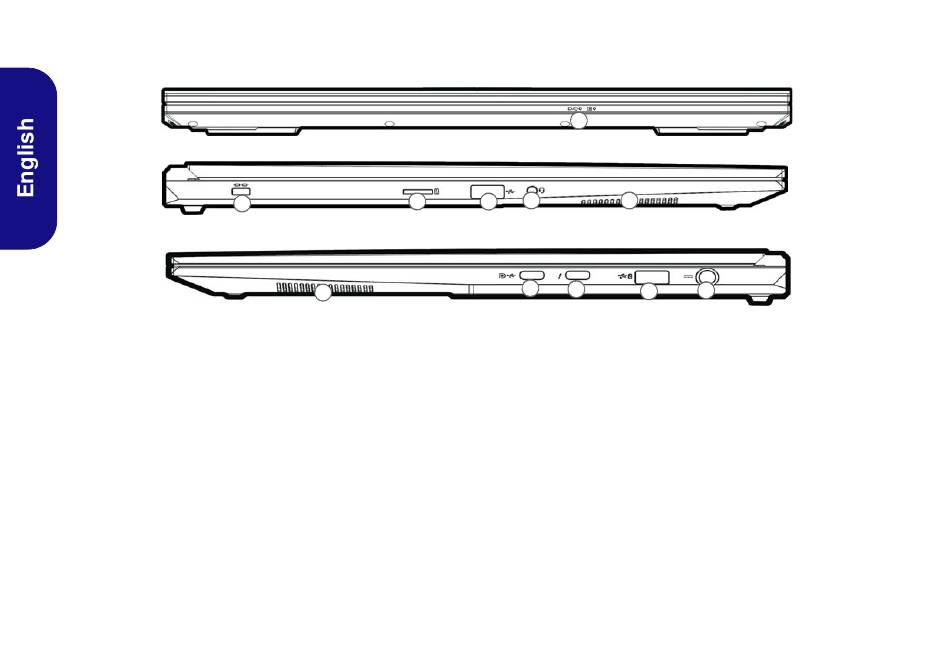

Figure 7 - Front, Left & Right Views (Model B)
6. Speakers
7. DisplayPort 1.4 over USB 3.2 Gen 2 Type-C Port
8. Thunderbolt 4 Port with Power Delivery (DC-In)*
9. Powered USB 3.2 Gen 2 Type-A Port (see
10. DC-In Jack
(Model B)
1
5
6
7
8
9
10
page
9)
