Dynacode
Angle adjustment (intermittent mode)
The installation angle of the printhead is default 26° to the print surface. However, manufacturing tolerances of printhead and
mechanics can require another angle.
CAUTION!
Damage of printhead by unequal use!
Higher wastage of ribbon by faster ripping.
⇒
Change factory settings only in exceptional cases.
•

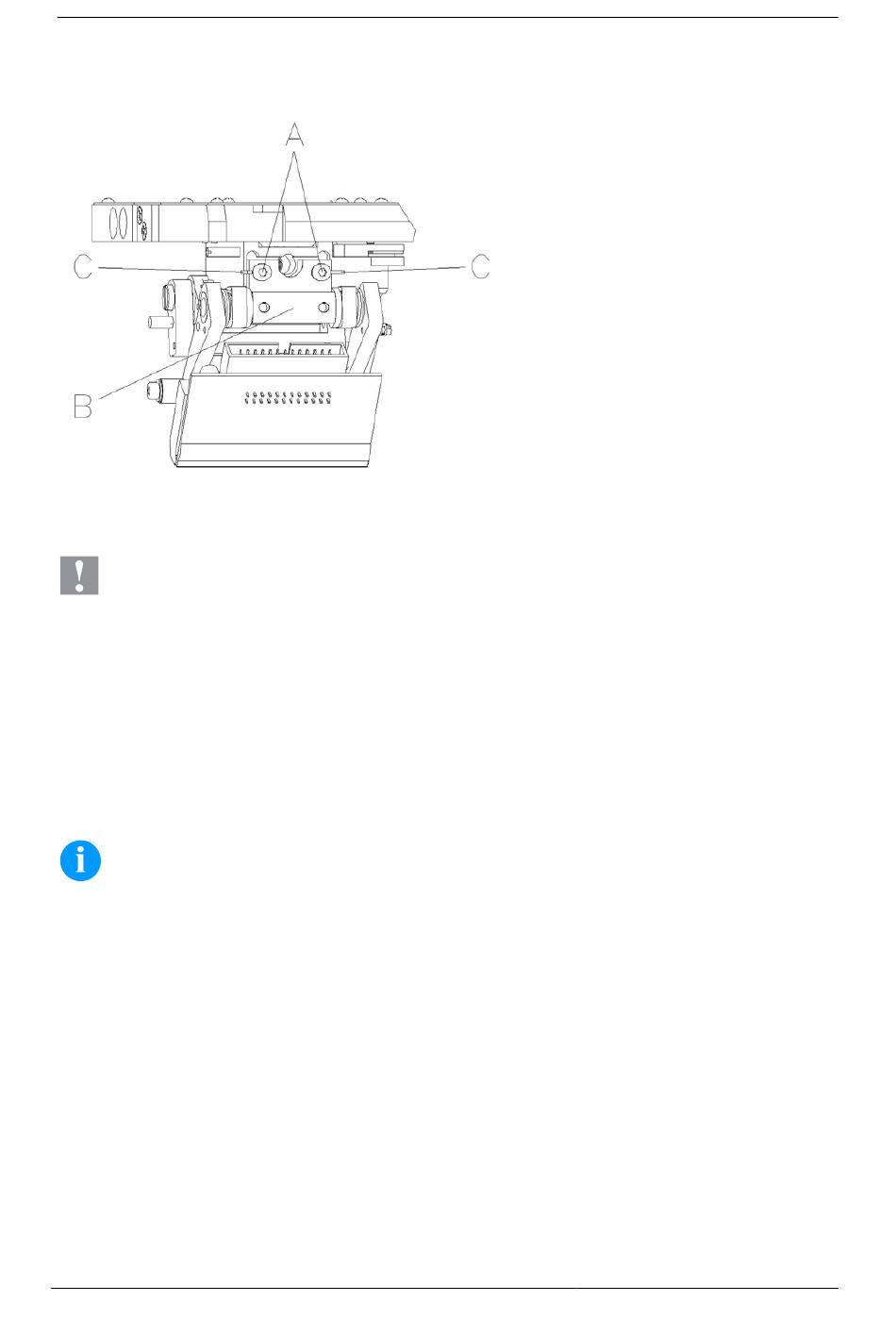

Loosen slightly two Allen head screws (A).
•
Move adjusting part (B) to adjust the angle between printhead and printhead support.
move downwards = decrease angle
move upwards = increase angle
•
Tighten again the Allen head screws (A).
•
Start a print order with approx. 3 layouts to check the correct unwrinkled ribbon run.
NOTICE!
The slots (C) serve for position control. Pay attention to a parallel adjustment.
