GridScan/LR
6.1

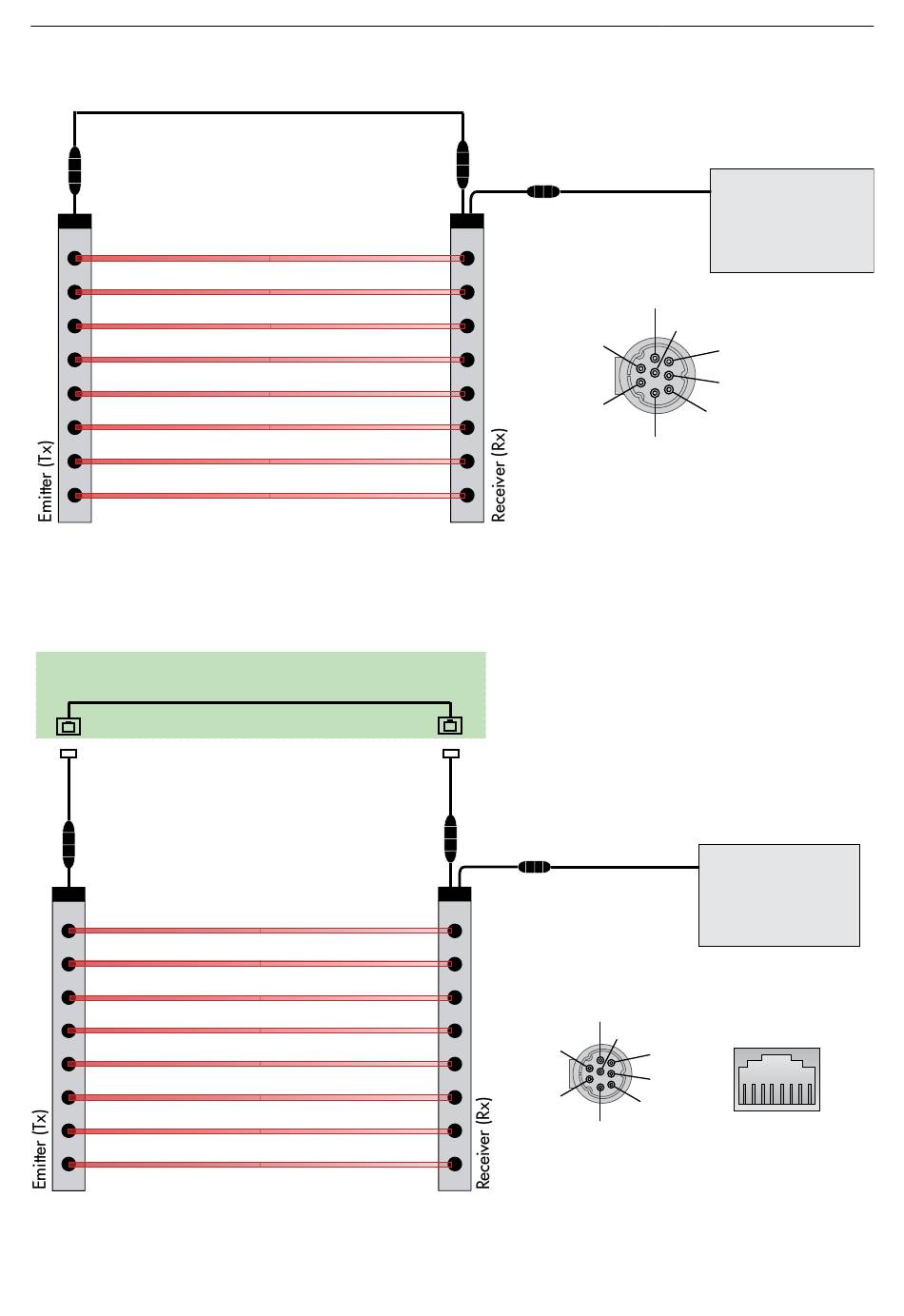

Product setup with synchronization cable (Standard)
Synchronization cable 30 m, M8 4-pin, male-female
M8, 4-pin
Figure 8:
Product setup with synchronization cable
6.2
Product setup with network cable (RJ45)
U72-cable, 4-pin or analog (telephone/network) cable - uncrossed
RJ45 socket
RJ45 plug
Cable 5 m, RJ45 - M8 female
M8, 4-pin
Figure 9:
Product setup with network cable
© CEDES | V 2.0
Infrared light beams
Provided by customer
RJ45 socket
RJ45 plug
Cable 5 m, RJ45 - M8 male
Infrared light beams
M8, 4-pin
MiniDIN, 8-pin
M8, 4-pin
MiniDIN, 8-pin
1 blue
2 gray
Connection cable 5 m
MiniDIN, 8-pin
3 green
4 white
1 blue
6 pink
7 brown
2 gray
8 yellow
5 black
Pin assignment, MiniDIN, 8-pin
Connection cable 5 m
MiniDIN, 8-pin
3 green
4 white
6 pink
7 brown
8 yellow
5 black
Pin assignment,
MiniDIN, 8-pin
English
Controller
Controller
8 7 6 5 4 3 2 1
Connected pins:
1, 2, 3, 6
Connected pins,
RJ45
7
