GridScan/LR
CAUTION
Damage to the eye
Although the GridScan/LR does not emit
dangerous amounts of infrared light, long
exposure to intense infrared light sources
can result in damage to the eyes.
 Never look directly into the active
infrared emitter from a close distance.
 Always align the GridScan/LR emitter
edge with the receiver edge
5.1

Safe operation

A test-signal has to be applied which puts the GridScan/LR into a test mode whereby the device checks all relevant safety
circuits. Only if this internal test is successful, does the GridScan/LR allow operation.
Important: This test sequence must be implemented otherwise safe operation cannot be guaranteed! Please refer to
section 7.2 (Test input) for more application details.
5.2

Delivery package

The contents of the GridScan/LR package vary according to the type of system ordered and can include the following:
• 1 × GridScan/LR emitter edge (Tx)
• 1 × GridScan/LR receiver edge (Rx)
• 1 × Connection cable
• 1 × Synchronization cable
• 4 × Mounting bracket with screws
• Washers and nuts
• Installation and Operation Manual
Extension and connection cables in various lengths are
also available.
Important: For enquiries regarding the product and
accessories or application support, please contact your
local CEDES representative.
5.3

GridScan/LR product overview

The GridScan/LR main parts:
1. Status LED
2. Earth cable
3. Mounting profiles
4. Synchronization cable
5. Connection cable
6. Optical element
7. Mounting grooves
© CEDES | V 2.0

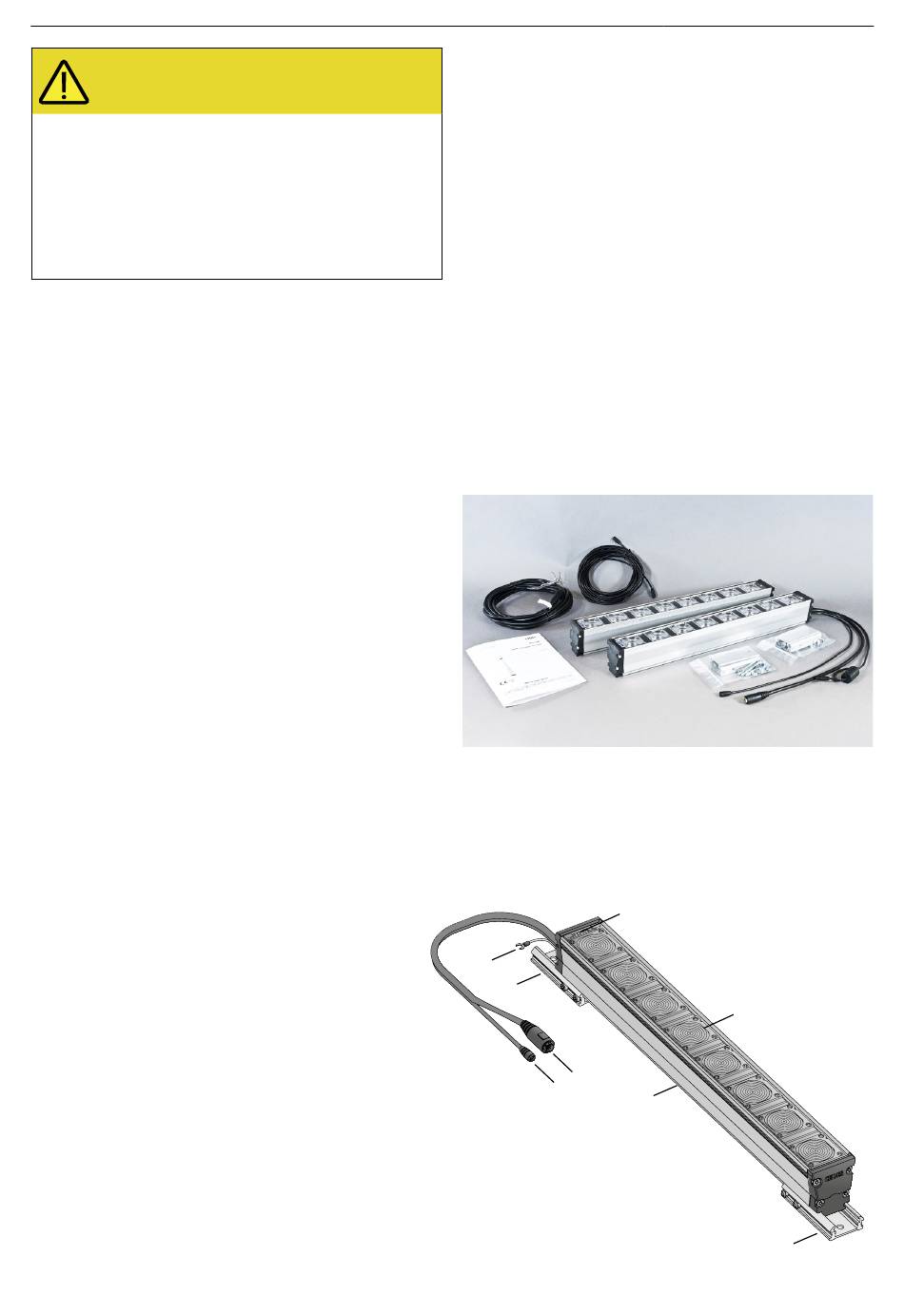

Figure 6:
Typical GridScan/LR delivery package
2
3
5
4
Figure 7:
GridScan/LR product overview
1
6
7
3
English
5
