Hardware
2. Hardware

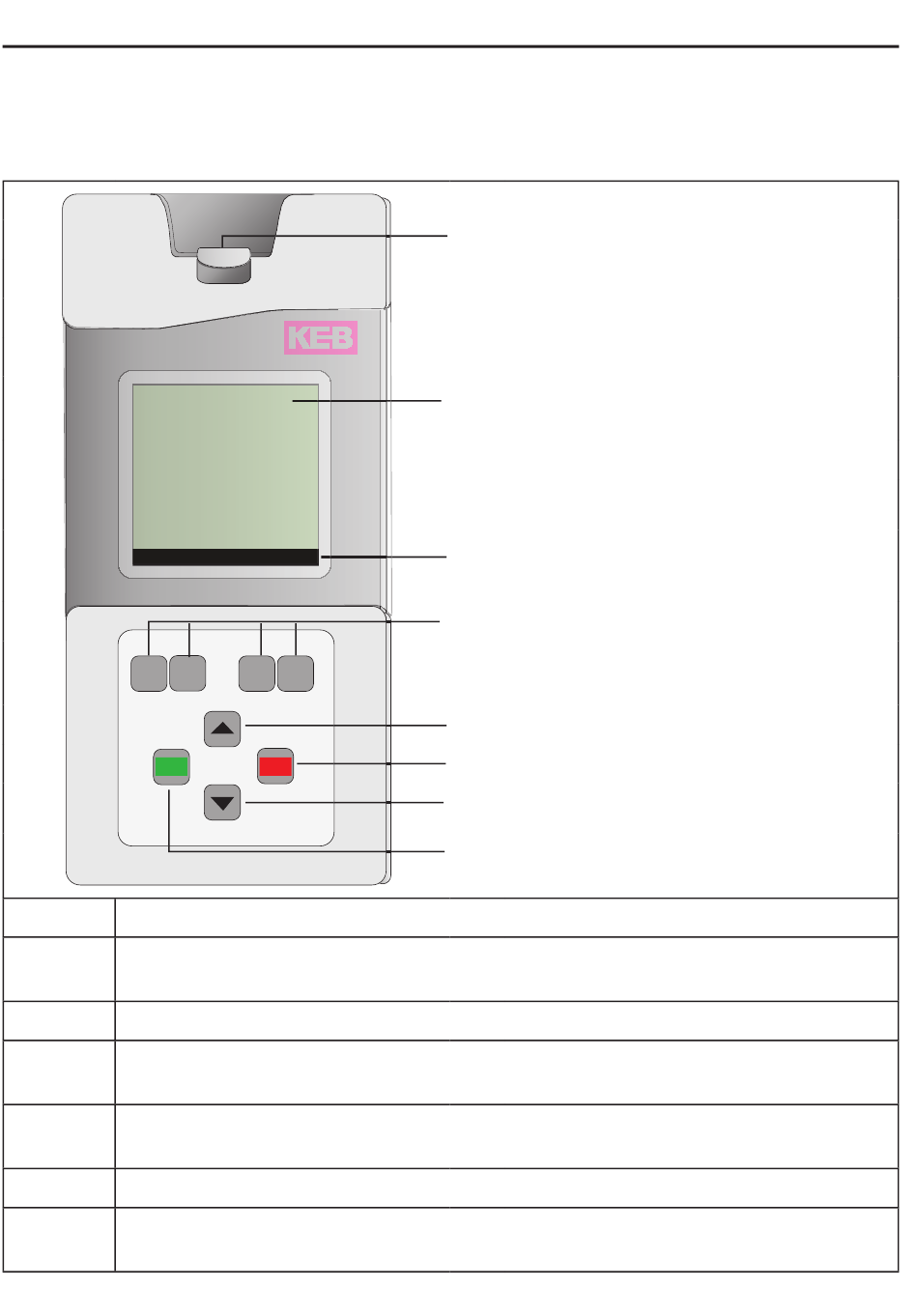

2.1 Description of the operator
F1
ENTER
1 The operator can be removed from the inverter.
2 The LCD display offers a detailed representation of the information with a plain
text display.
3 A fl ashing function bar indicates an inverter error.
4 The function keys F1 to F4 are variable assigned. The assignment is displayed by
the function bar.
5 and 7 With "Up" and "Down" it can be moved between the menu items or changing pa-
rameter values.
6 With ESC a jump to the next superior menu is done.
8 With ENTER it can be jumped into the selected menu item or a selection can be
confi rmed.
GB - 8
F2 F3 F4
ESC
(1) Lock arm
(2) LCD display
160 x 160 pixel, 32 gray scale value
(3) Function bar
(4) Function keys F1 to F4
(5) Up
(6) ESC
(7) Down
(8) ENTER
