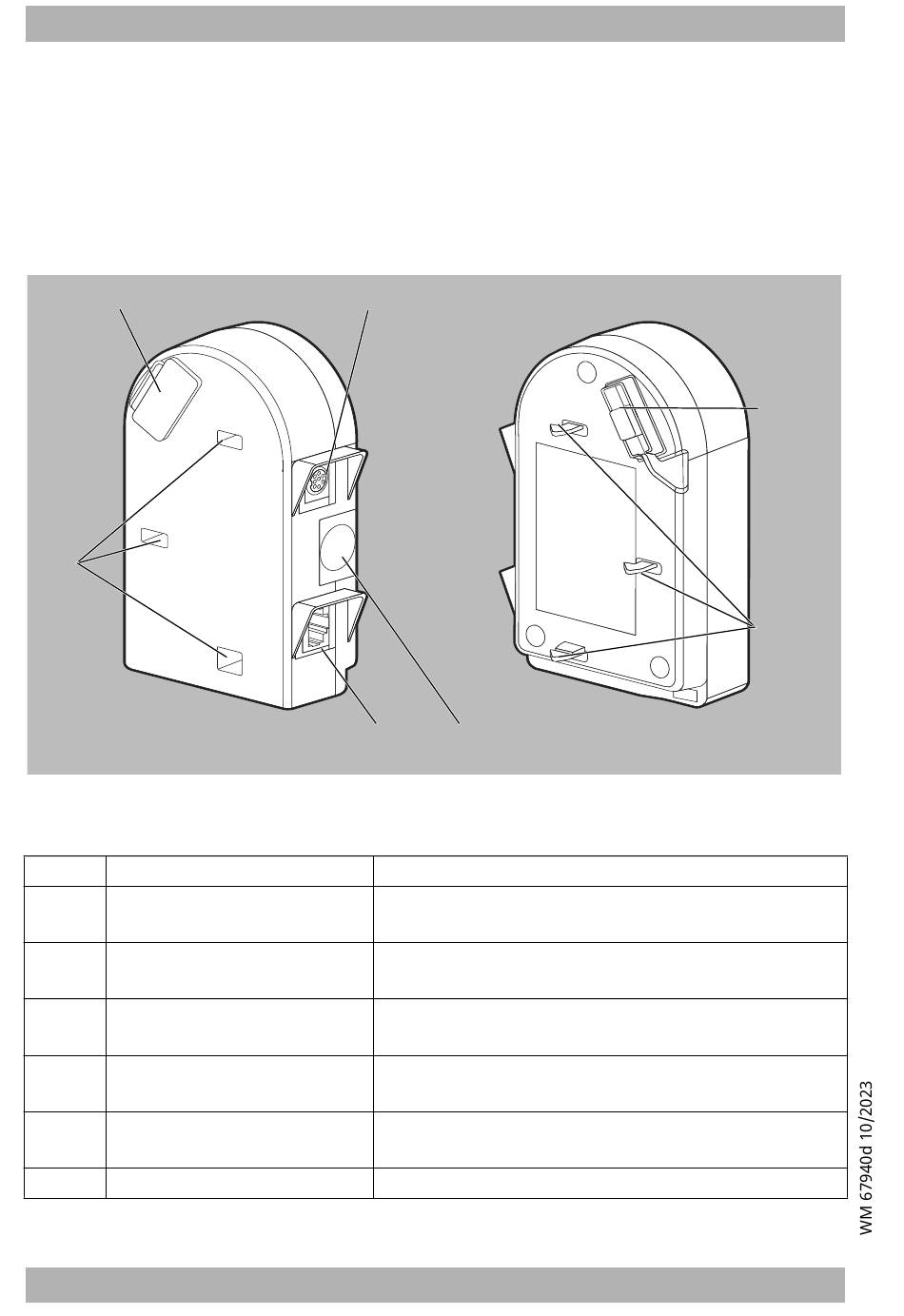

3.1 Overview of prismaCONNECT
1
7
No. Designation
1 System interface cover
2 Module interface
3 System interface
4 Locking hook
5 Module release catch
6 LAN port
36 EN prismaCONNECT
module
2
6
3-1 prismaCONNECT module
Description
Covers the system interface when no other
module is connected.
For connecting to the prismaPSG module or
prisma HUB.
For connecting to the therapy device or to other
modules.
Attaches the module to the therapy device or to
other modules.
Allows the module to be connected to and
removed from the therapy device.
For connecting to a PC
5
3
4
