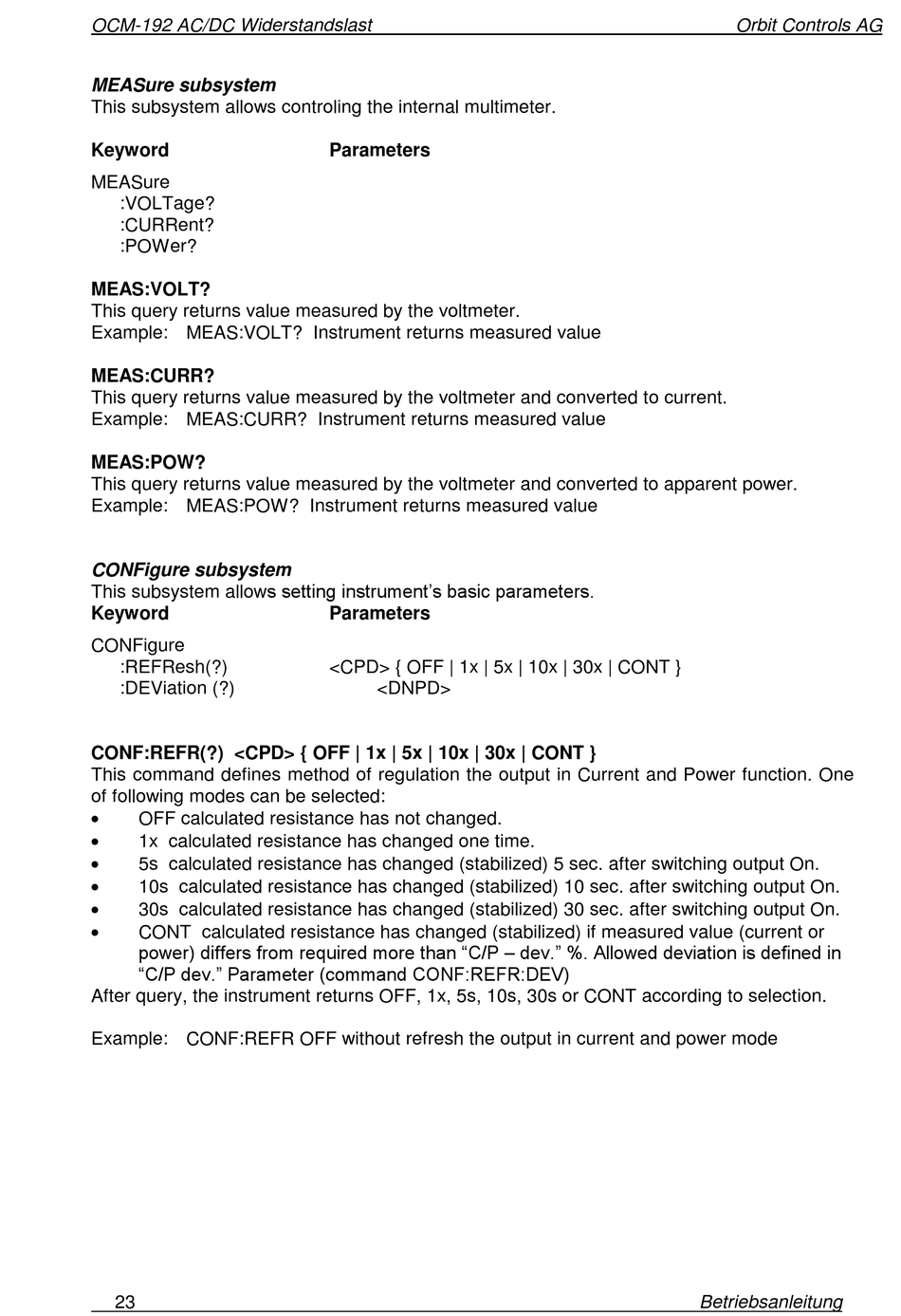

OCM-192 AC/DC Widerstandslast
MEASure subsystem
This subsystem allows controling the internal multimeter.
Keyword
MEASure
:VOLTage?
:CURRent?
:POWer?
MEAS:VOLT?
This query returns value measured by the voltmeter.
Example: MEAS:VOLT? Instrument returns measured value
MEAS:CURR?
This query returns value measured by the voltmeter and converted to current.
Example: MEAS:CURR? Instrument returns measured value
MEAS:POW?
This query returns value measured by the voltmeter and converted to apparent power.
Example: MEAS:POW? Instrument returns measured value
CONFigure subsystem
This subsystem allows setting instrument's basic parameters.
Keyword
CONFigure
:REFResh(?)
:DEViation (?)
CONF:REFR(?) <CPD> { OFF | 1x | 5x | 10x | 30x | CONT }
This command defines method of regulation the output in Current and Power function. One
of following modes can be selected:

OFF calculated resistance has not changed.

1x calculated resistance has changed one time.

5s calculated resistance has changed (stabilized) 5 sec. after switching output On.

10s calculated resistance has changed (stabilized) 10 sec. after switching output On.

30s calculated resistance has changed (stabilized) 30 sec. after switching output On.

CONT calculated resistance has changed (stabilized) if measured value (current or
power) differs from required more than "C/P – dev." %. Allowed deviation is defined in
"C/P dev." Parameter (command CONF:REFR:DEV)
After query, the instrument returns OFF, 1x, 5s, 10s, 30s or CONT according to selection.
Example: CONF:REFR OFF without refresh the output in current and power mode
23
Parameters
Parameters
<CPD> { OFF | 1x | 5x | 10x | 30x | CONT }
<DNPD>
