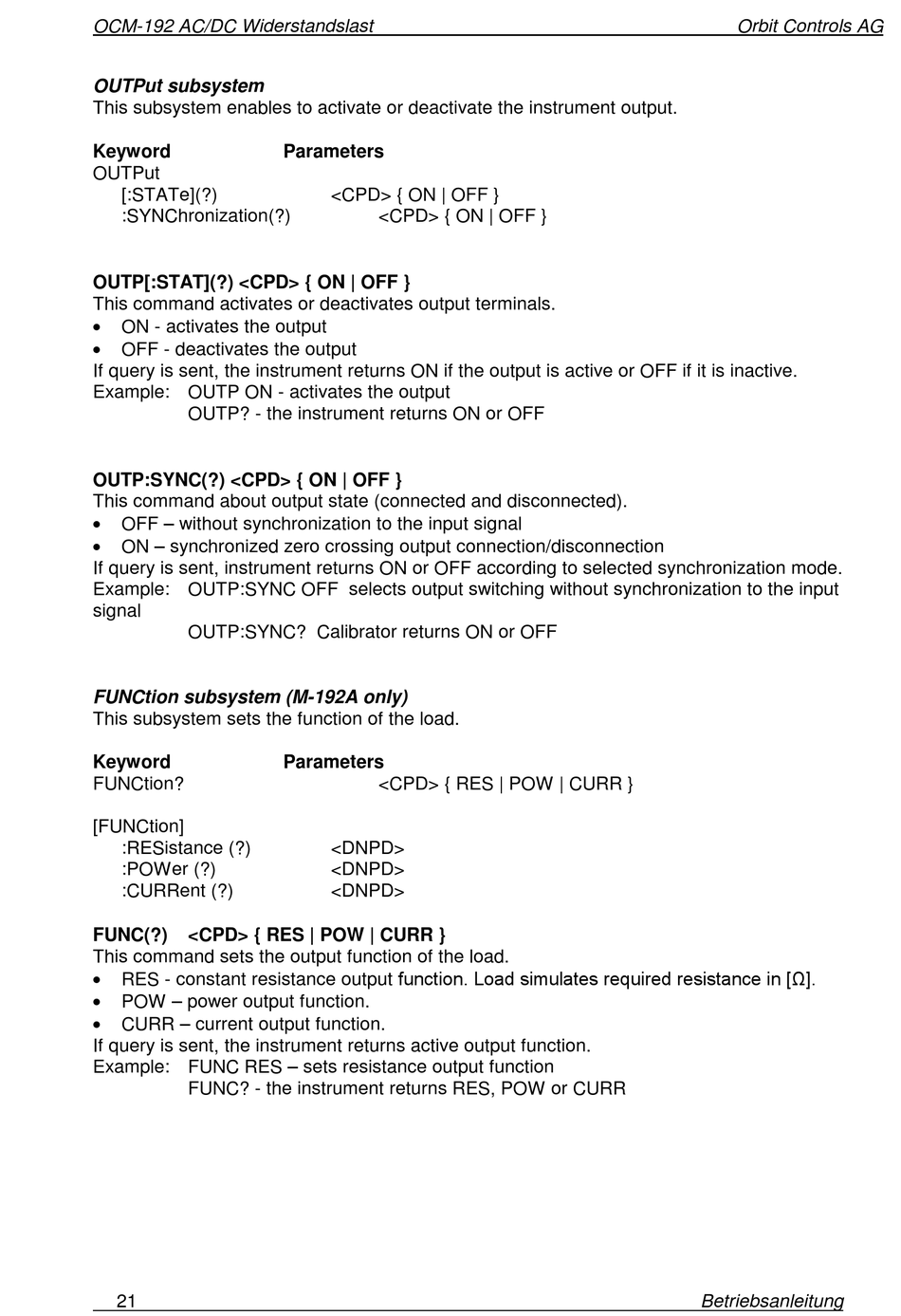

orbit controls OCM-192 Betriebsanleitung Seite 21

OCM-192 AC/DC Widerstandslast
OUTPut subsystem
This subsystem enables to activate or deactivate the instrument output.
Keyword
OUTPut
[:STATe](?)
:SYNChronization(?)
OUTP[:STAT](?) <CPD> { ON | OFF }
This command activates or deactivates output terminals.

ON - activates the output

OFF - deactivates the output
If query is sent, the instrument returns ON if the output is active or OFF if it is inactive.
Example: OUTP ON - activates the output
OUTP? - the instrument returns ON or OFF
OUTP:SYNC(?) <CPD> { ON | OFF }
This command about output state (connected and disconnected).

OFF – without synchronization to the input signal

ON – synchronized zero crossing output connection/disconnection
If query is sent, instrument returns ON or OFF according to selected synchronization mode.
Example: OUTP:SYNC OFF selects output switching without synchronization to the input
signal
OUTP:SYNC? Calibrator returns ON or OFF
FUNCtion subsystem (M-192A only)
This subsystem sets the function of the load.
Keyword
FUNCtion?
[FUNCtion]
:RESistance (?)
:POWer (?)
:CURRent (?)
FUNC(?) <CPD> { RES | POW | CURR }
This command sets the output function of the load.

RES - constant resistance output function. Load simulates required resistance in [Ω].

POW – power output function.

CURR – current output function.
If query is sent, the instrument returns active output function.
Example: FUNC RES – sets resistance output function
FUNC? - the instrument returns RES, POW or CURR
21
Parameters
<CPD> { ON | OFF }
<CPD> { ON | OFF }
Parameters
<CPD> { RES | POW | CURR }
<DNPD>
<DNPD>
<DNPD>
