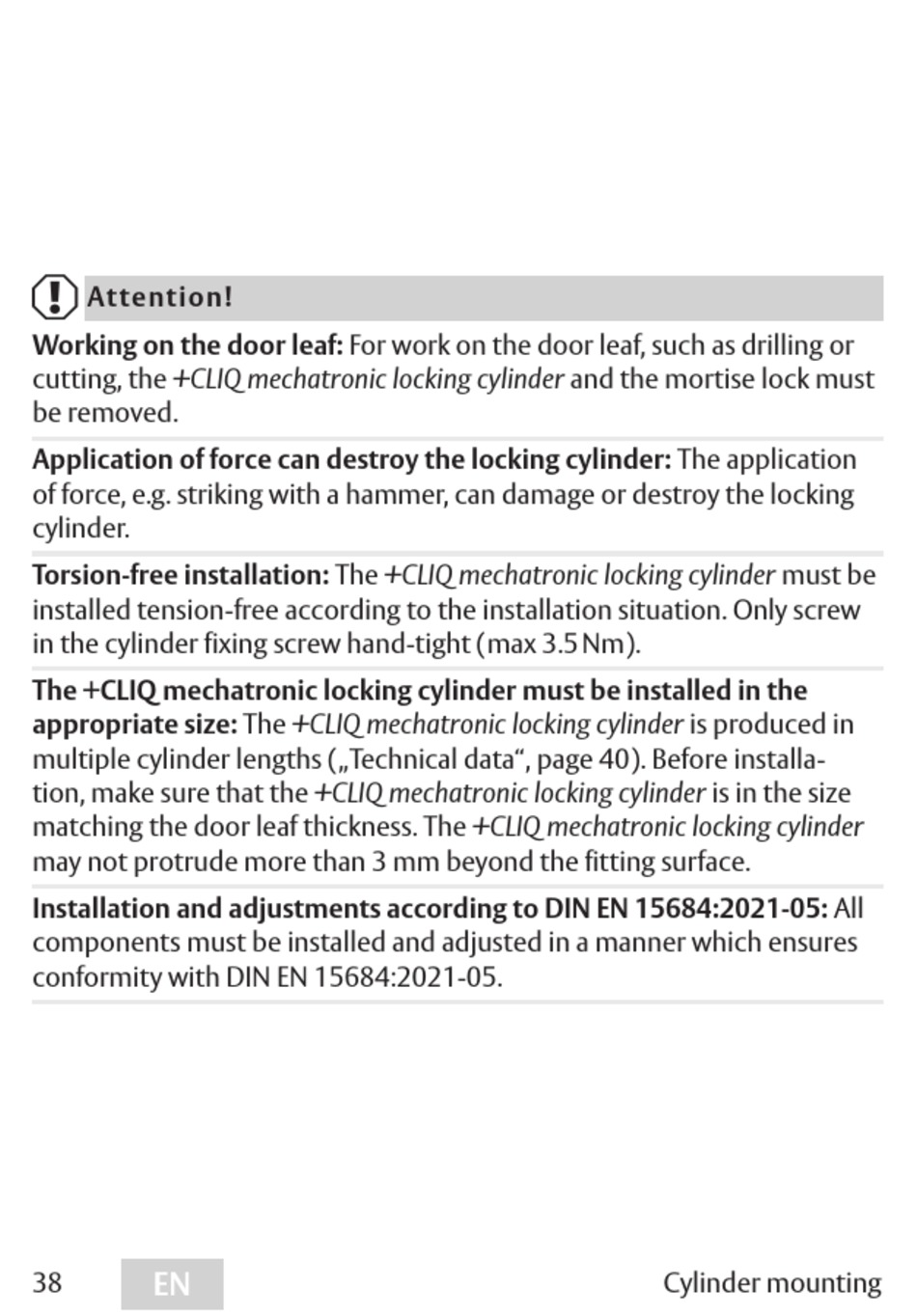

At tention!
Working on the door leaf: For work on the door leaf, such as drilling or
cutting, the +CLIQ mechatronic locking cylinder and the mortise lock must
be removed.
Application of force can destroy the locking cylinder: The application
of force, e.g. striking with a hammer, can damage or destroy the locking
cylinder.
Torsion-free installation: The +CLIQ mechatronic locking cylinder must be
installed tension-free according to the installation situation. Only screw
in the cylinder fixing screw hand-tight (max 3.5 Nm).
The +CLIQ mechatronic locking cylinder must be installed in the
appropriate size: The +CLIQ mechatronic locking cylinder is produced in
multiple cylinder lengths („Technical data", page 40). Before installa-
tion, make sure that the +CLIQ mechatronic locking cylinder is in the size
matching the door leaf thickness. The +CLIQ mechatronic locking cylinder
may not protrude more than 3 mm beyond the fitting surface.
Installation and adjustments according to DIN EN 15684:2021-05: All
components must be installed and adjusted in a manner which ensures
conformity with DIN EN 15684:2021-05.
38
EN
Cylinder mounting
